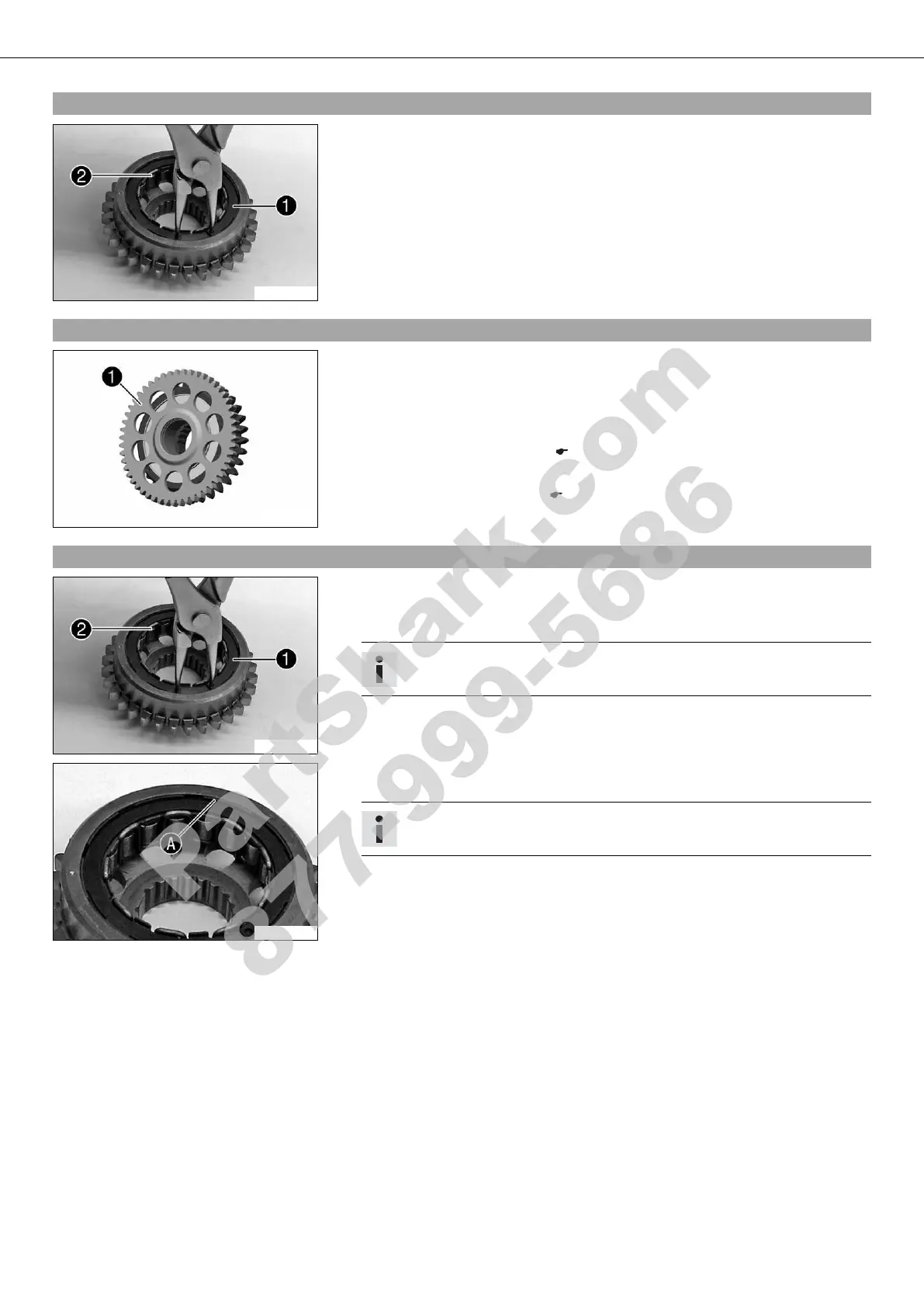

30/ENGINE - WORK ON INDIVIDUAL PARTS 135
19.34Removing the freewheel
301234-10
– Press expansion ring together using suitable pliers.
– Take freewheel out of the freewheel hub.
19.35Checking the freewheel
301236-10
– Insert freewheel gear into the freewheel hub, turning the freewheel gear clock-
wise; do not wedge.
– Check the locking action of starter gear .
» If the freewheel gear does not turn clockwise or if it does not lock counterclock-
wise:
– Remove the freewheel. ( p. 135)
– Turn the freewheel 180°.
– Install the free wheel. ( p. 135)
19.36Installing the free wheel
301234-10
– Thoroughly oil all parts.
– Pull the ends of expansion ring together.
– Slide freewheel into the freewheel hub.
Info
Note the direction of rotation.
301235-10
– Ensure that all of the tabs of the expansion ring pass through the slots of the
freewheel.
Info
If necessary, apply pressure using a screwdriver.
