04/SHOCK ABSORBER, SWINGARM 46
201055-10
– Remove compression damping adjuster . Remove the spring and piston.

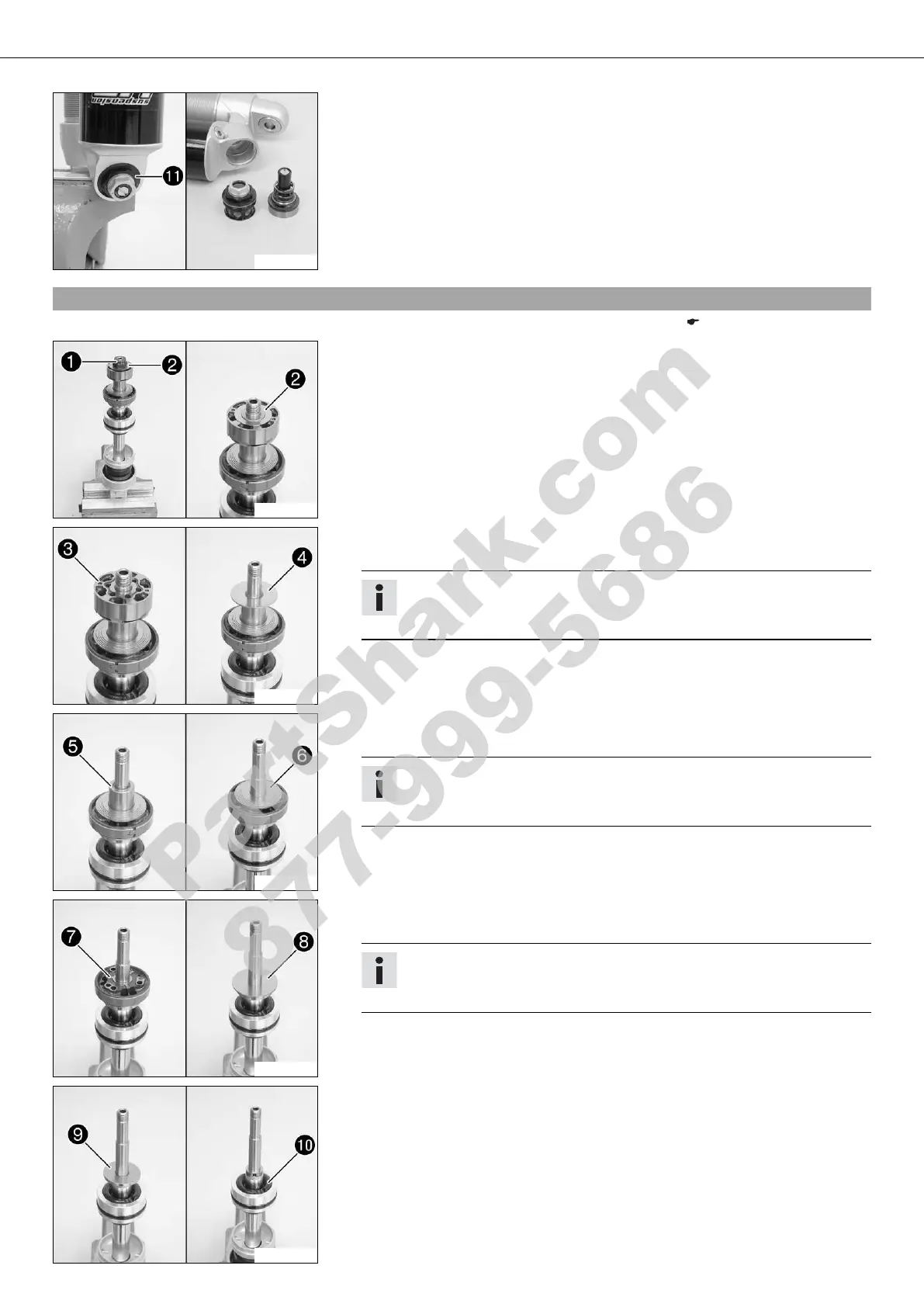

8.31Rear shock absorber - disassembling the piston rod
– Disassemble the damper of the rear shock absorber. ( p. 45)
201063-10
– Clamp the piston rod into a vise.
– Remove nut .
– Remove rebound shim stack .
201064-10
– Remove piston .
– Remove compression shim stack .
Info
Thread the compression shim stack onto a screwdriver and set them down
together.
201065-10
– Remove sleeve .
– Remove rebound shim stack .
Info
Thread the rebound shim stack onto a screwdriver and set them down
together.
201066-10
– Remove piston .
– Remove compression shim stack .
Info
Thread the compression shim stack onto a screwdriver and set them down
together.
201067-10
– Remove rebound washer .
– Remove seal ring retainer .
