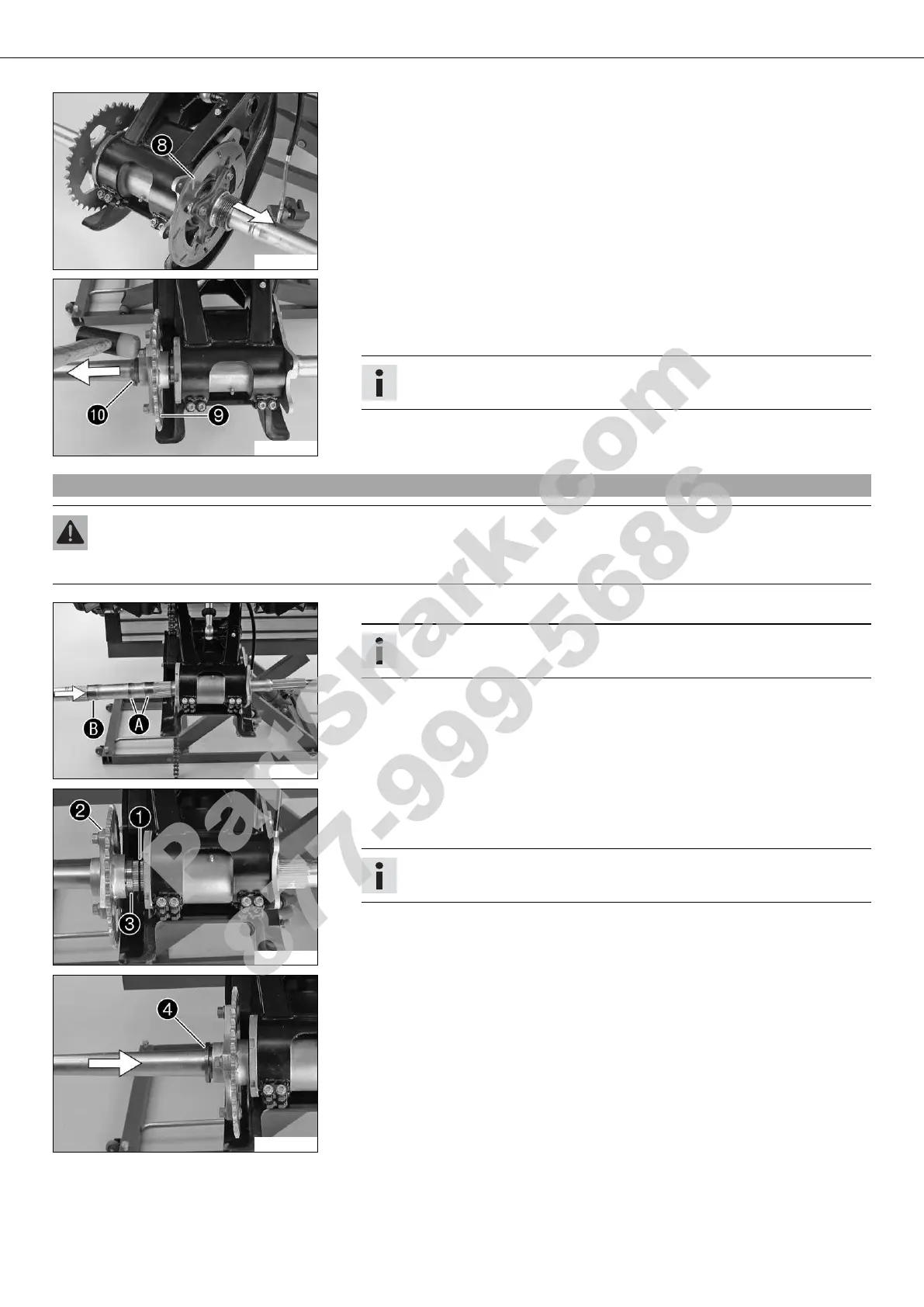

10/REAR WHEEL 79
600412-10
– Take brake disc off the rear axle with the holder.
– Remove the O-ring.
600414-10
– Push the rear axle slightly to the left. Using a plastic hammer, lightly strike against
the chain sprocket carrier to release the chain sprocket carrier from the lock
rings. Remove lock rings .
– Pull the rear axle out of the swingarm in the direction of the arrow.
Info
Hold the rear sprocket carrier.
– Remove rear sprocket carrier with the O-ring.
14.9Installing the rear axle
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
600422-10
– Slide on the rear axle from the left to the right all the way.
Info
The machined surfaces must be to the right of bearing seat .
600423-10
– Position O-ring . Attach chain sprocket carrier with the nuts facing outward.
– Carefully insert sealing area on the chain sprocket carrier into the shaft seal ring
of the rear wheel eccentric by lightly turning and tilting the rear axle.
Info
Do not damage the sealing lip of the shaft seal ring.
600424-10
– Position lock ring with the high collar facing to the left. Slide the main shaft all
the way in in the direction of the arrow.
– Check that the lock rings are seated properly.
