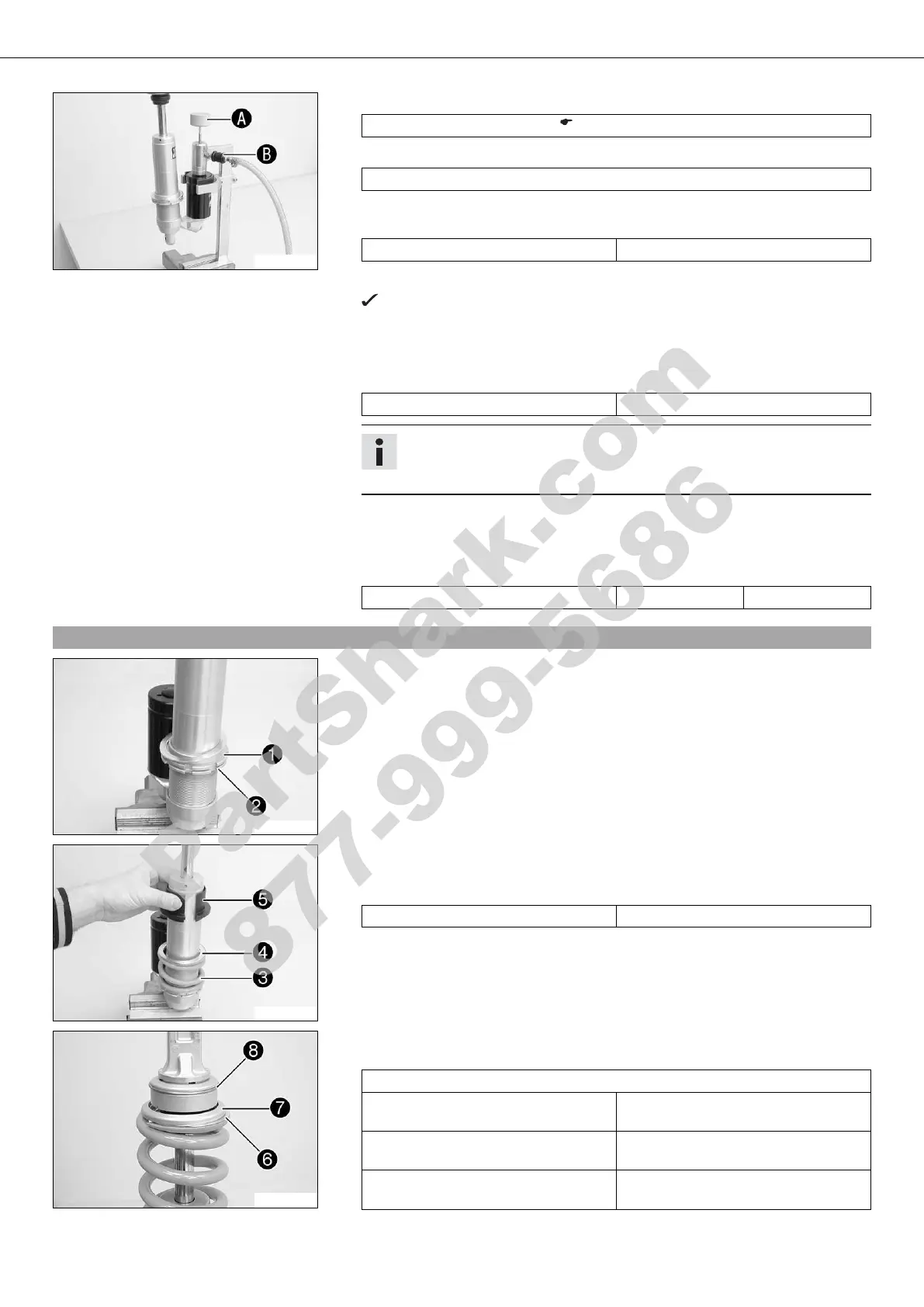

04/SHOCK ABSORBER, SWINGARM 57
201096-10
– Fix the special tool in the vise.
Nitrogen filling tool (T170S1) ( p. 239)
– Connect the special tool to the pressure regulator of the filling cylinder.
Filling gas - nitrogen
– Adjust the pressure regulator.
Guideline
Gas pressure 10 bar (145 psi)
– Position the damper in the special tool.
The hexagonal part of turning handle engages in the female hexagonal sec-
tion of the filling port screw.
– Open spigot .
– Fill the damper for at least 15 seconds.
Guideline
Gas pressure 10 bar (145 psi)
Info
Watch the pressure regulator dial.
Ensure that the damper is filled to the specified pressure.
– Screw the filling port shut with turning handle .
– Close spigot and remove the damper from the special tool.
– Tighten the filling port screw.
Guideline
Screw, filling port for reservoir M5 3 Nm (2.2 lbf ft)
8.42Rear shock absorber - installing the spring
201049-11
– Ensure that adjusting ring is screwed on with the washer and retaining ring .
– Screw the adjusting ring and retaining ring all the way down.
201048-11
– Measure the overall spring length in an unloaded state.
– Position spring .
Guideline
Spring rate, auxiliary spring 100 N/mm (571 lb/in)
– Mount washer and sleeve .
201047-11
– Position the spring.
Guideline
Spring rate, main spring
Weight of rider: 65… 75 kg (143…
165 lb.)
78 N/mm (445 lb/in)
Weight of rider: 75… 85 kg (165…
187 lb.)
82 N/mm (468 lb/in)
Weight of rider: 85… 95 kg (187…
209 lb.)
85 N/mm (485 lb/in)
