30/ENGINE ASSEMBLY 145

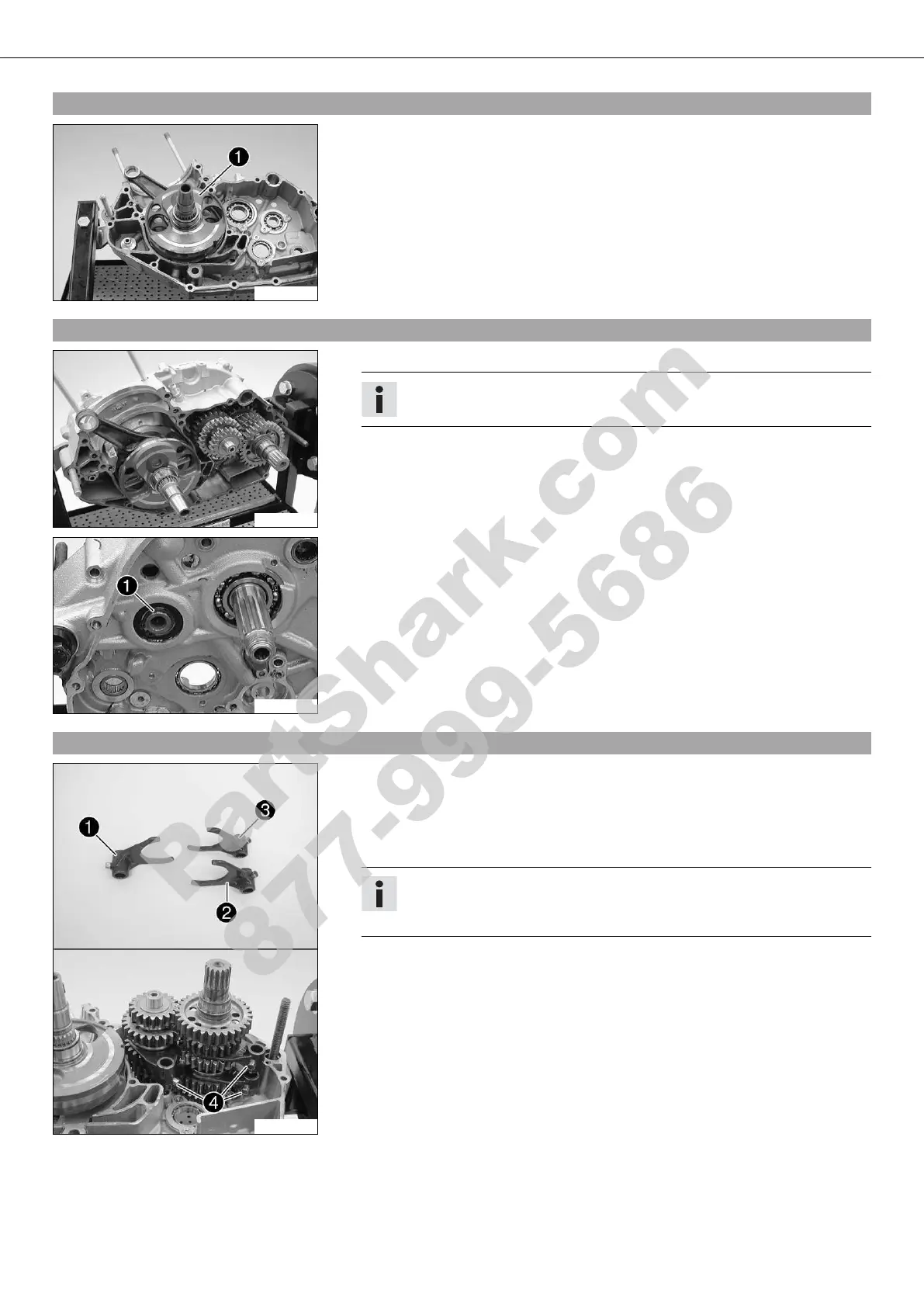

20.1Installing the crankshaft
301697-10
– Position the right section of the engine case in the engine work stand.
– Push crankshaft  into the bearing seat.
20.2Installing the transmission shafts
301696-10
– Slide both transmission shafts into the bearing seats.
Info
Do not misplace the washers.
301695-10
– Mount lock ring .
20.3Installing the shift forks
301694-10
– Shift fork  has a smaller inside diameter; mount this in the shift groove of the
main shaft.
– Mount shift fork  in the lower shift groove of the countershaft.
– Mount shift fork  in the upper shift groove of the countershaft.
– Slide on shift rollers .
Tip
Fix the shift rollers to the shift forks with grease.
Markings In of shift forks  and  face each other
