61/ATV FRONT END 194

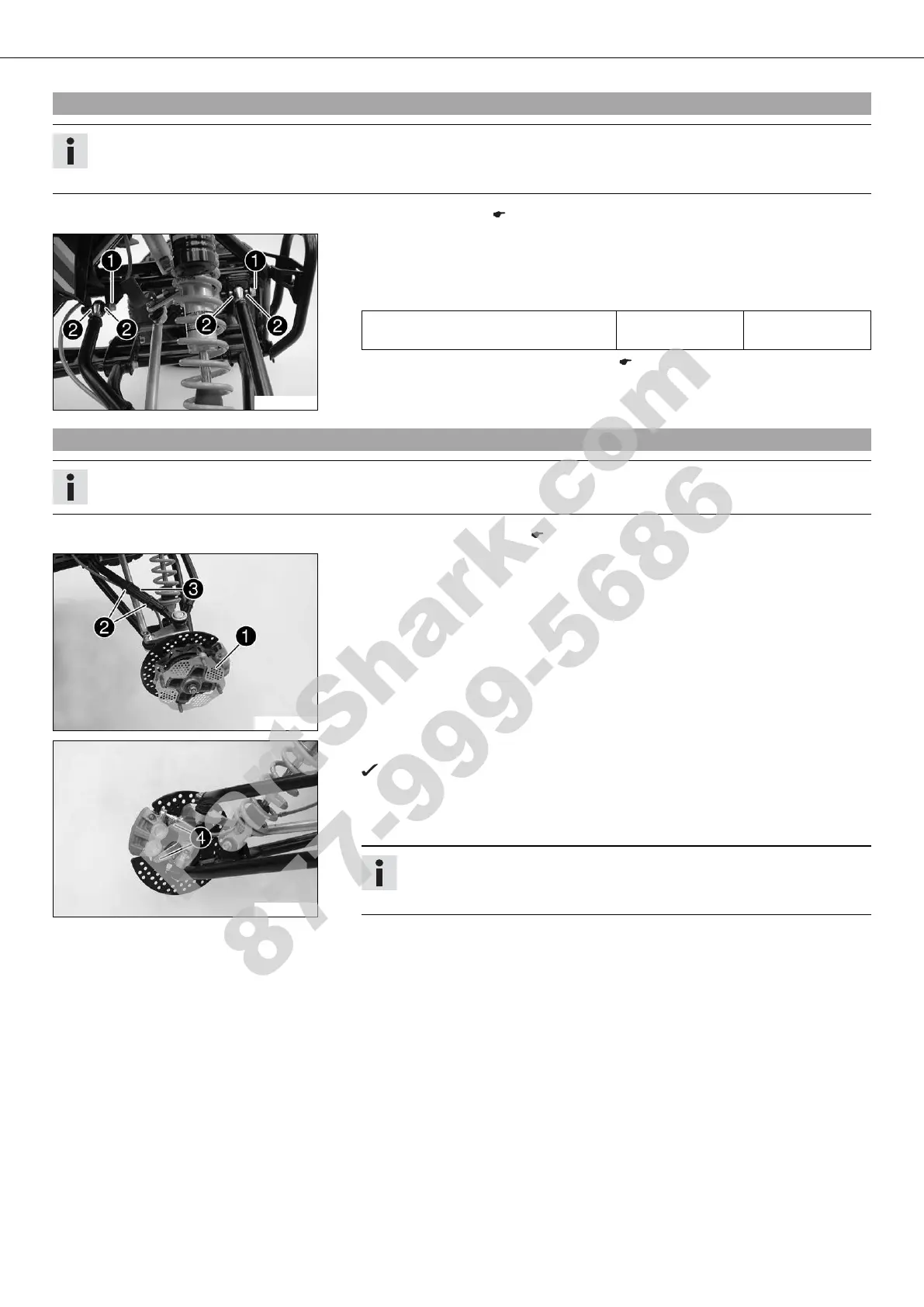

27.4Adjusting the fork offset
Info
The left and right fork offset should have the same settings.
The operations are the same on the left and right.
– Jack up the vehicle. ( p. 12)
300274-11
– Remove screws  with bushings .
– Place the A-arm with bushings  in the desired position. Mount and tighten
screws .
Guideline
Screw, A-arm top M10x52 45 Nm
(33.2 lbf ft)
– Remove the vehicle from the work stand. ( p. 12)
27.5Removing the wheel carrier
Info
The operations are the same on the left and right.
– Remove the wheel/wheels. ( p. 72)
301500-10
– Remove brake disc guard .
– Remove cable clamp  and take off brake line guide .
301501-10
– Pull the hand brake lever and release it again.
Locking pawl moves into its basic position, parking brake is deactivated.
– Remove screws . Press the brake caliper onto the brake disc by hand in order to
push back the brake piston.
– Remove the brake caliper.
Info
Do not operate the hand brake lever when the brake caliper has been
removed.
