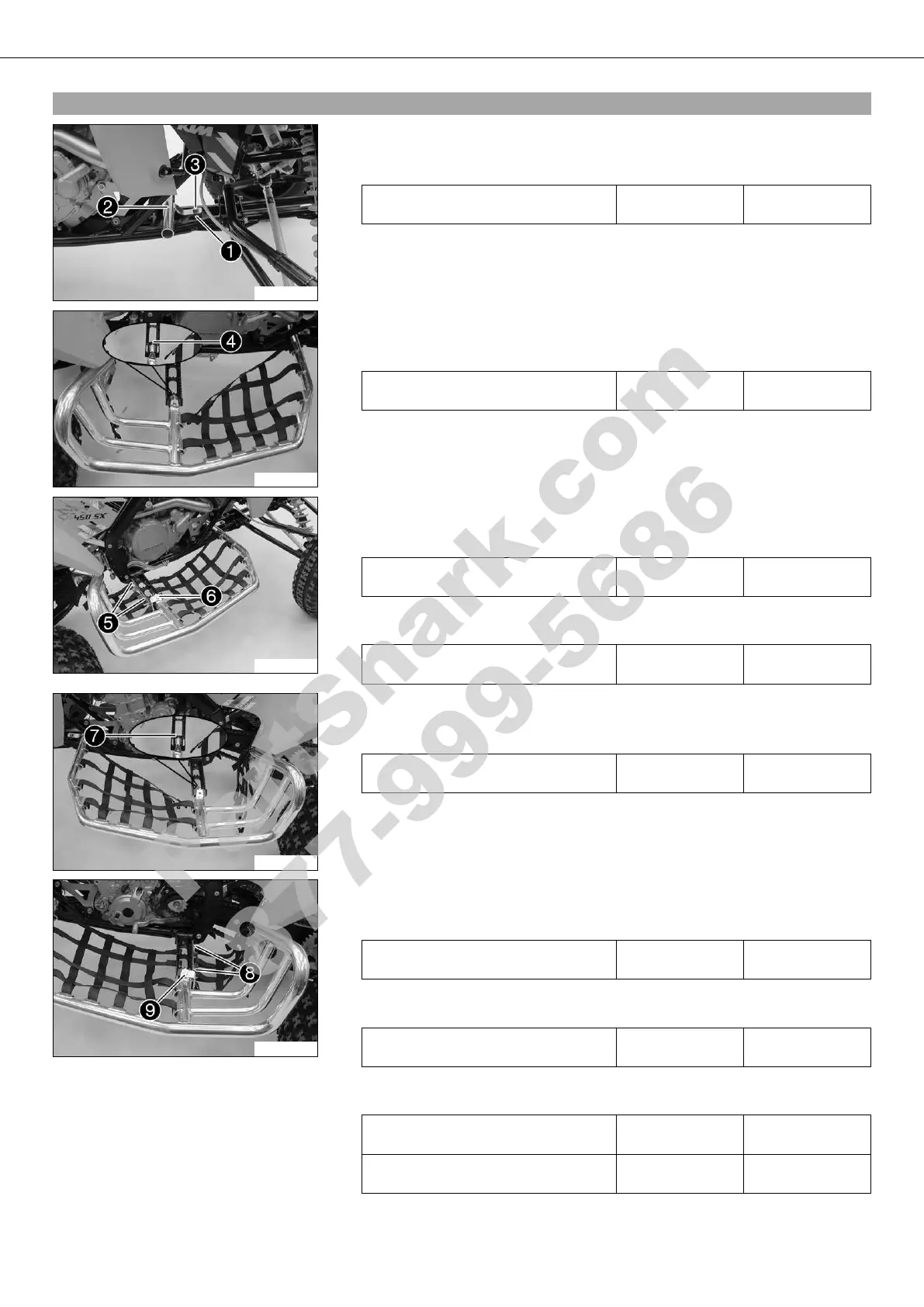

12.2Installing the heel protector
301847-10
– Position washer  and cross member .
– Mount screw  but do not tighten yet.
Guideline
Remaining nuts, chassis M8 30 Nm
(22.1 lbf ft)
301848-10
– Slide the heel protector onto the cross member and position it.
– Mount screw  but do not tighten yet.
Guideline
Remaining nuts, chassis M6 15 Nm
(11.1 lbf ft)
301849-10
– Position the retaining bracket.
– Mount screws  but do not tighten yet.
Guideline
Remaining nuts, chassis M6 15 Nm
(11.1 lbf ft)
– Mount screws  but do not tighten yet.
Guideline
Remaining nuts, chassis M6 15 Nm
(11.1 lbf ft)
301850-10
– Slide the heel protector onto the cross member and position it.
– Mount screw  but do not tighten yet.
Guideline
Remaining nuts, chassis M6 15 Nm
(11.1 lbf ft)
301851-10
– Position the retaining bracket.
– Mount screws  but do not tighten yet.
Guideline
Remaining nuts, chassis M6 15 Nm
(11.1 lbf ft)
– Mount screws  but do not tighten yet.
Guideline
Remaining nuts, chassis M6 15 Nm
(11.1 lbf ft)
– Tighten all screws.
Guideline
Remaining nuts, chassis M6 15 Nm
(11.1 lbf ft)
Remaining nuts, chassis M8 30 Nm
(22.1 lbf ft)
