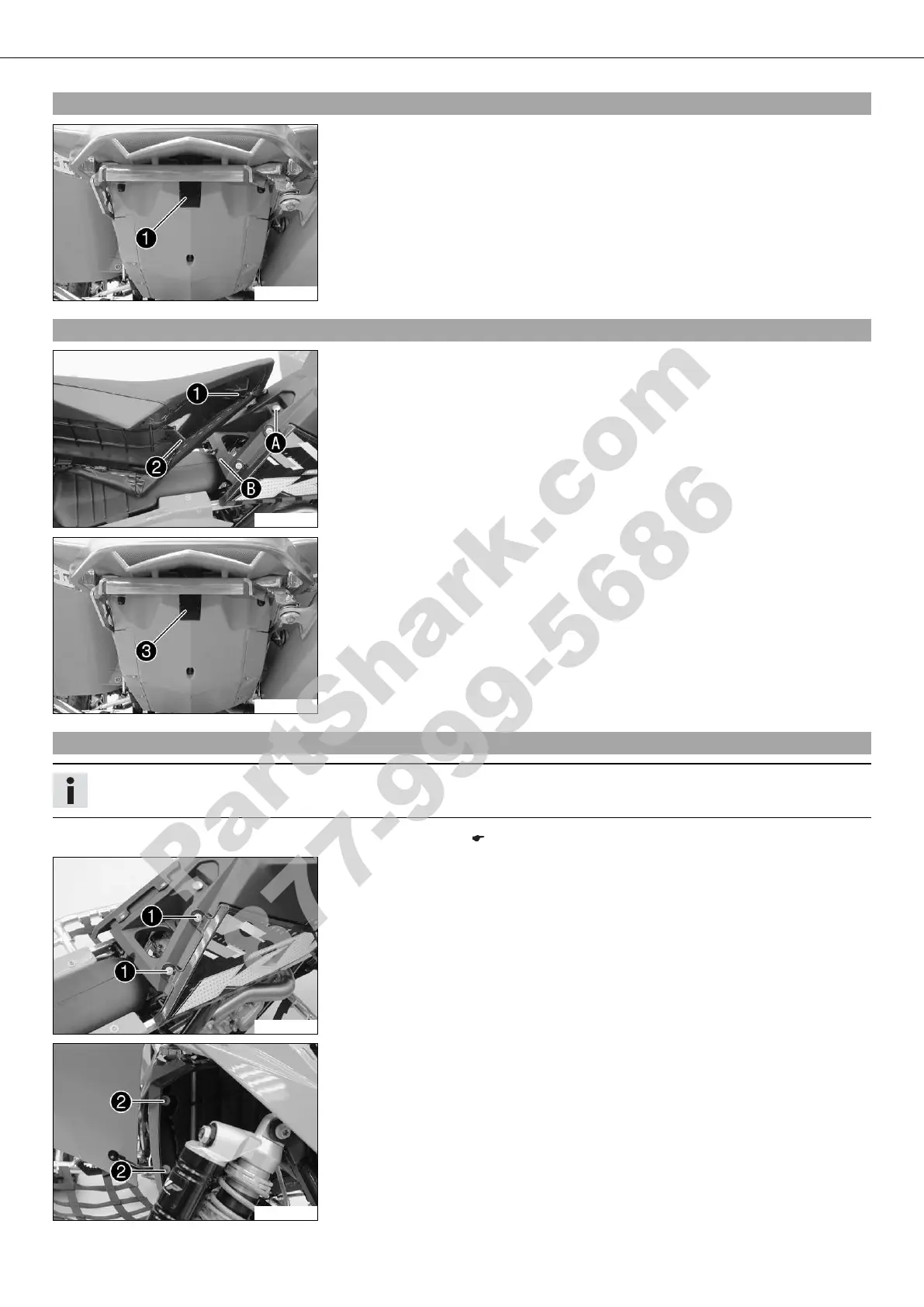

07/FUEL TANK, SEAT, TRIM 63
11.1Removing the seat
301809-10
– Pull the release hook back. Lift up the seat at the rear, pull it back and then
remove from above.
11.2Mounting the seat
301810-10
– Hook slot on the seat into collar sleeve of the fuel tank, lower the rear of the
seat and slide tab under fuel tank .
301809-11
– Push down the rear of the seat until release hook engages.
– Make sure that the seat is correctly locked in.
11.3Removing the radiator spoiler
Info
The operations are the same on the left and right.
– Remove the seat ( p. 63)
301817-10
– Remove the screws on the fuel tank.
301816-10
– Remove the screws on the radiator.
– Detach the radiator spoiler and remove it.
