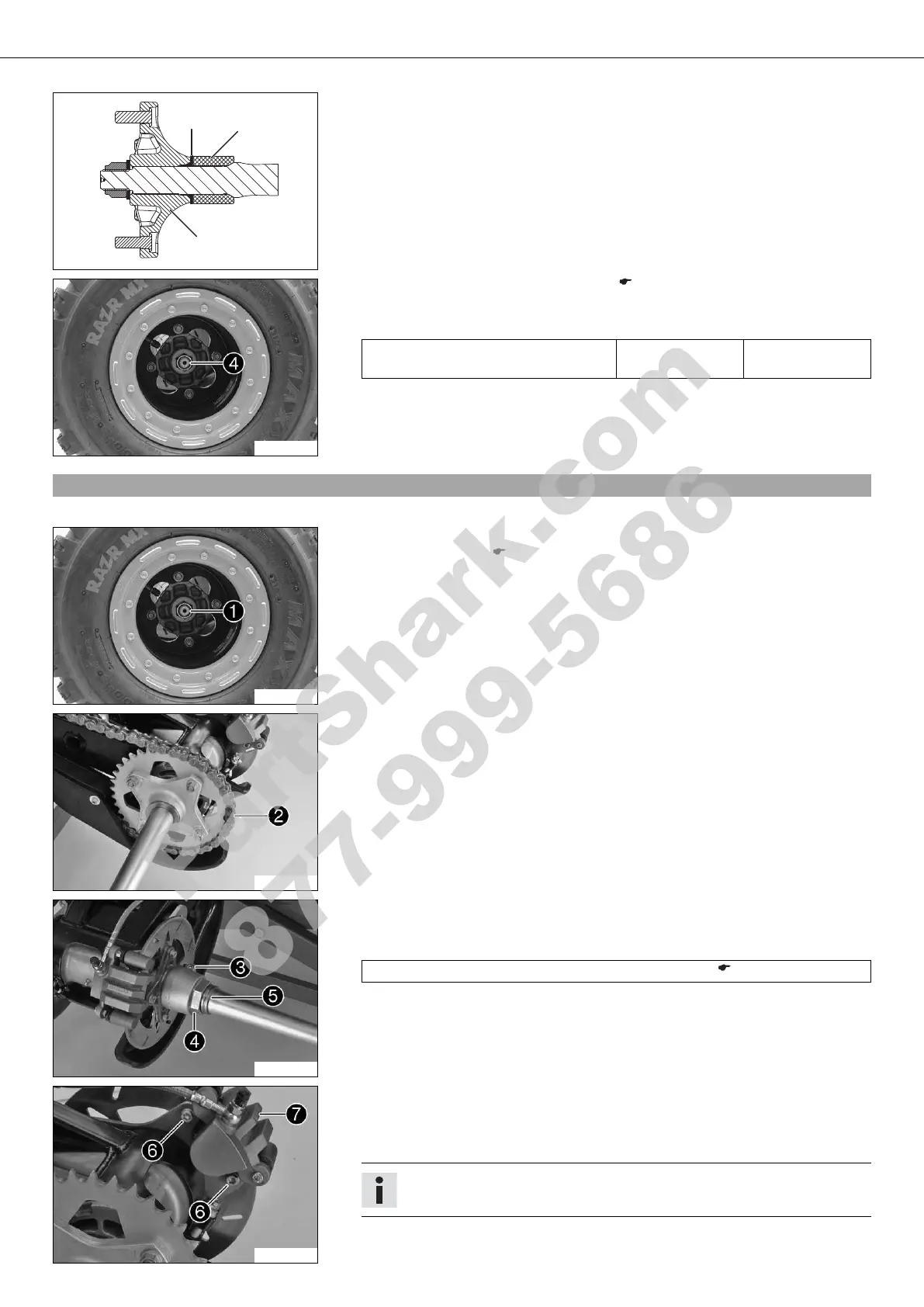

10/REAR WHEEL 78
100104-10
Setting a wide toe width:
– Mount the spacer  with the cone facing inward.
– Mount the conical ring  with the cone facing outward.
– Mount the wheel hub .
– Mount the washer and the new self-locking nut.
301538-10
– Remove the vehicle from the work stand. ( p. 12)
– Tighten nuts  on both sides.
Guideline
Nut, rear wheel hub M18x1.5 130 Nm
(95.9 lbf ft)
– Shift gear to neutral.
14.8Removing the rear axle
– Engage 1st gear.
301538-12
– Loosen nuts  of the wheel hubs on both sides.
– Jack up the vehicle. ( p. 12)
– Remove nuts  on both sides and take all parts off of the rear axle.
600409-10
– Remove chain joint . Remove the chain from the rear sprocket.
600410-10
– Loosen screw .
– Turn clamping nut  counterclockwise using the special tool until lock rings  are
freely accessible. Remove the lock rings.
Open-end wrench attachment, 46 mm (83019010461) ( p. 234)
– Turn clamping nut  clockwise using the special tool and remove.
600411-10
– Remove screws .
– Push back the brake linings by tilting brake caliper  slightly to one side on the
brake disc. Carefully pull the brake caliper off of the brake disc and let it hang to
one side.
Info
Do not operate the foot brake when the brake caliper has been removed.
