KTM RC 125 User Manual

211 pages

To Next Page

To Previous Page

12 SERVICE WORK ON THE CHASSIS 101

L02200-10

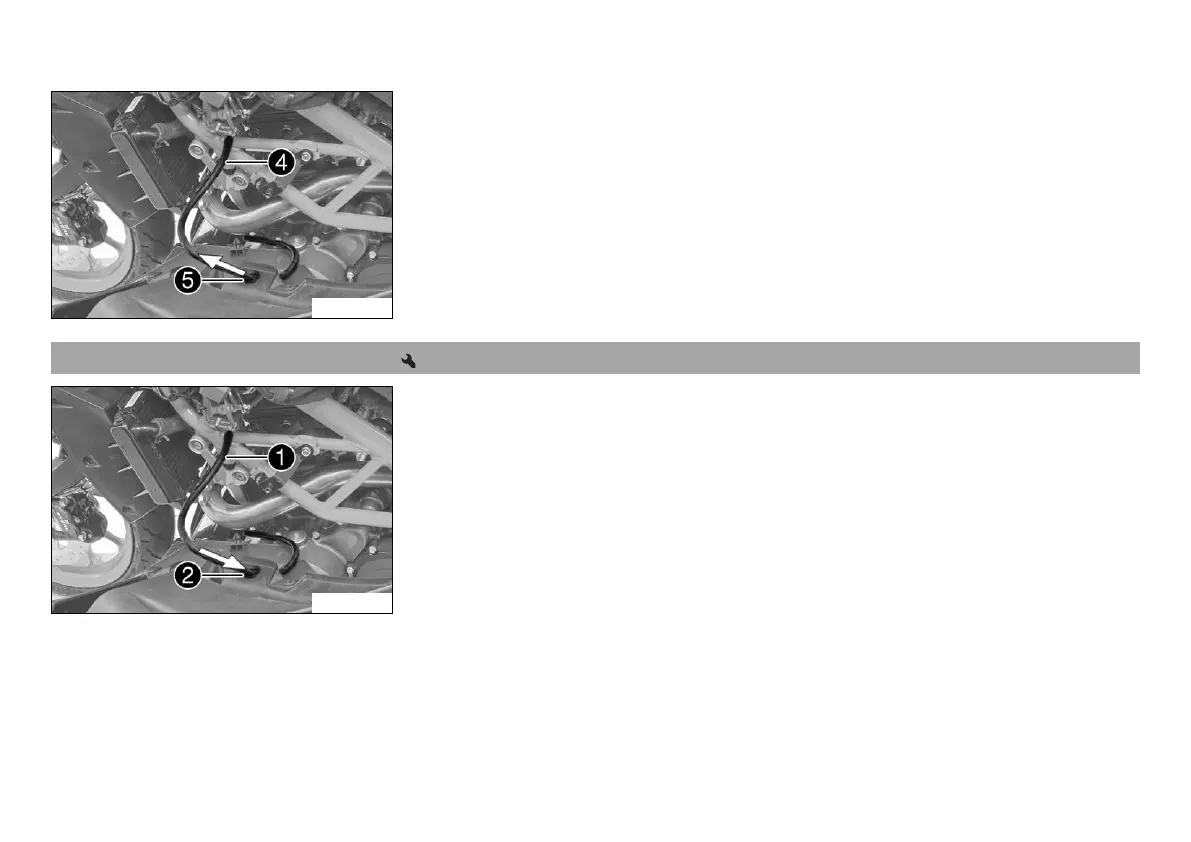

– Swing the side cover outward.

–

Pull hose



out of hose guide



– Take off the side cover.

12.20 Installing the left side cover

L02200-11

–

Position hose


