KTM RC 125 User Manual

15 ELECTRICAL SYSTEM 146

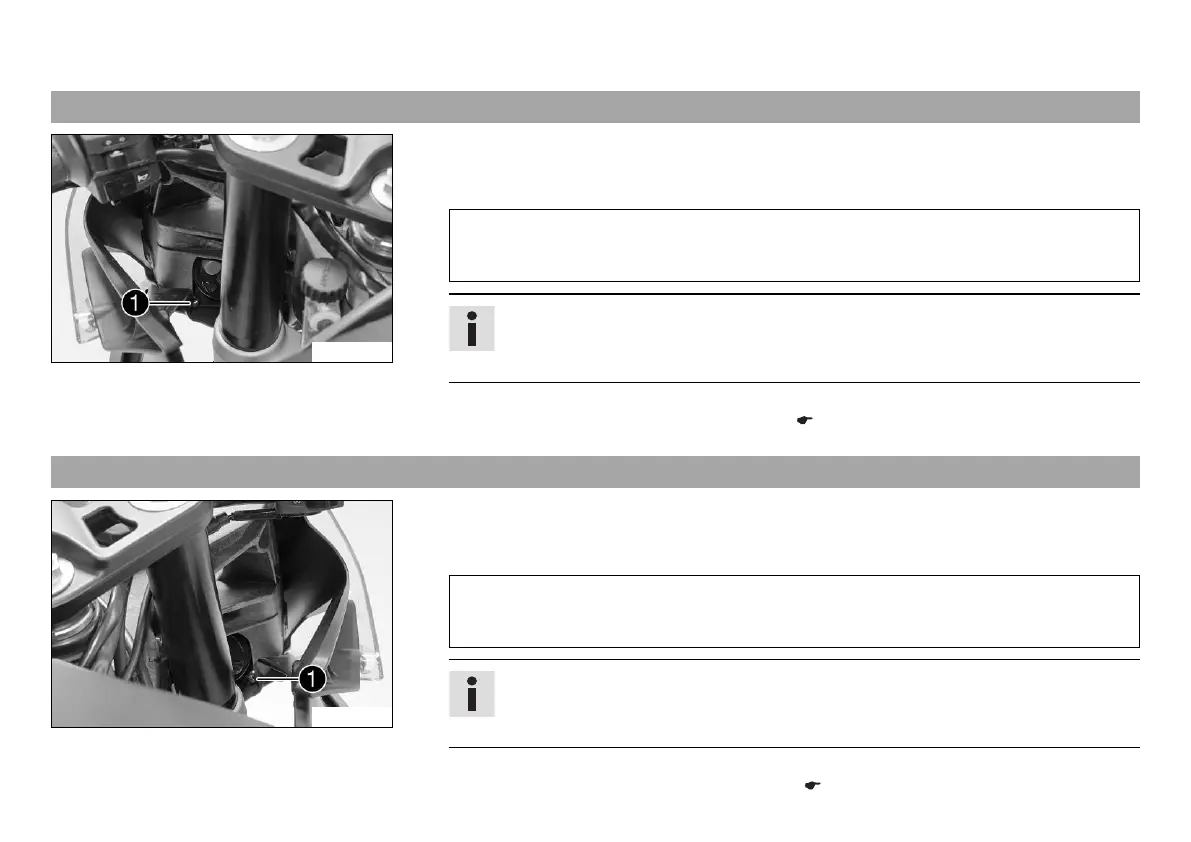

15.10 Adjusting the headlight range of the low beam
L02164-10
Main work
–
Adjust the beam range of the low beam by turning screw

.
Guideline
For a motorcycle with rider, and with luggage and a passenger if applicable, the
light/dark boundary must be exactly on the lower mark (applied in: Checking the low
beam headlight setting).
Info
Turn clockwise to increase the headlight range; turn counterclockwise to reduce
the headlight range.
Finishing work
– Check the low beam headlight adjustment. ( p. 144)
15.11 Adjusting the headlight range of the high beam
L02163-10
Main work
–
Adjust the beam distance of the high beam by turning screw

.
Guideline
For a motorcycle with rider, and with luggage and a passenger if applicable, the
light/dark boundary must be exactly on the lower mark (applied in: Checking the high
beam headlight setting).
Info
Turn clockwise to increase the headlight range; turn counterclockwise to reduce
the headlight range.
Finishing work
– Check the high beam headlight adjustment. ( p. 145)

KTM RC 125 Specifications

General

Displacement	124.7 cc
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Bore x Stroke	58 mm x 47.2 mm
Engine Type	Liquid-cooled, 1-cylinder, 4-stroke engine
Max Torque	12 Nm @ 8, 000 rpm
Front Suspension	WP upside-down fork
Rear Suspension	WP Monoshock
Front Brake	Single disc, 4-piston caliper
Rear Brake	Single disc, single-piston caliper
Frame	Steel trellis frame
Front Tire	110/70 R17
Rear Tire	150/60-17
