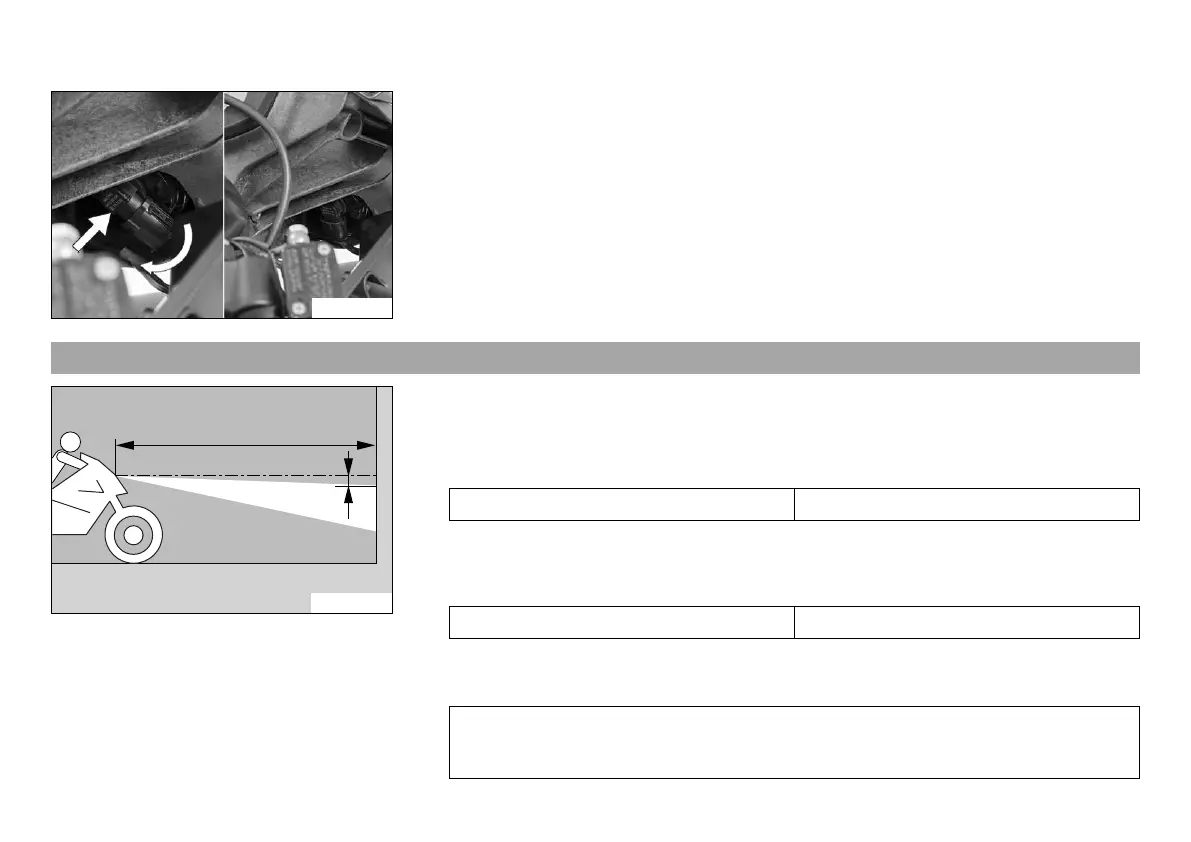

15 ELECTRICAL SYSTEM 144
L02165-10
Position the socket with the high beam bulb in the headlight housing.
Turn the socket clockwise.
Check that the lighting is functioning properly.
15.8 Checking the low beam headlight adjustment
0
0
AA
0
0
BB
400726-10
Position the vehicle upright on a horizontal surface in front of a light wall and make a
mark at the height of the center of the low beam headlight.
Make another mark at a distance
under the first mark.
Guideline
Distance
5 cm (2 in)
Position the vehicle perpendicular to the wall at a distance
from the wall and switch
on the low beam.
Guideline
Distance
5 m (16 ft)
The rider, with luggage and passenger if applicable, now mounts the motorcycle.
Check the low beam headlight adjustment.
The light-dark boundary must lie exactly on the lower mark when the motorcycle is
ready to operate with the rider mounted along with any luggage and a passenger if
applicable.
