12 SERVICE WORK ON THE CHASSIS 103

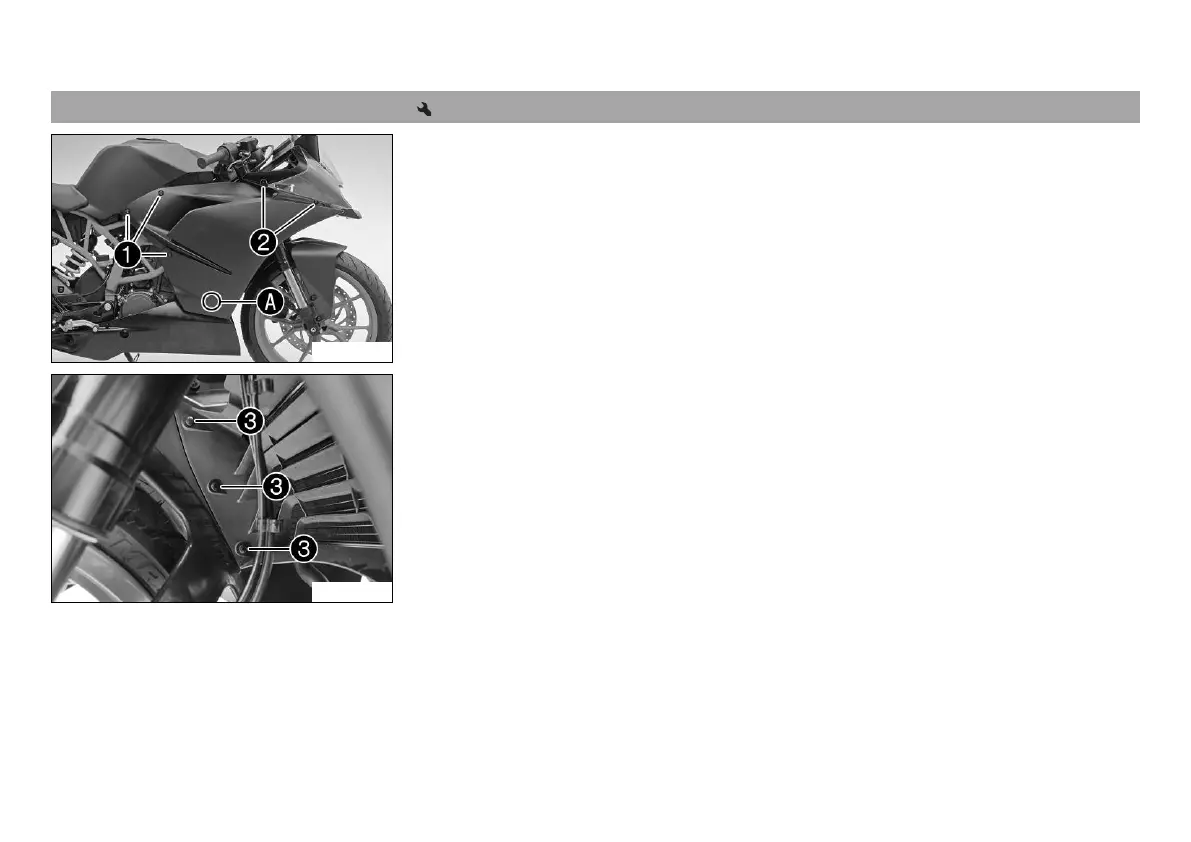

12.21 Removing the right side cover

L02178-10

–

Remove screws



–

Remove screws



–

Pull off holding lug in area



L02185-10

–

Remove expanding rivet



– Take off the side cover.
