KTM RC 125 User Manual

15 ELECTRICAL SYSTEM 140
L02275-10
(RC 125)

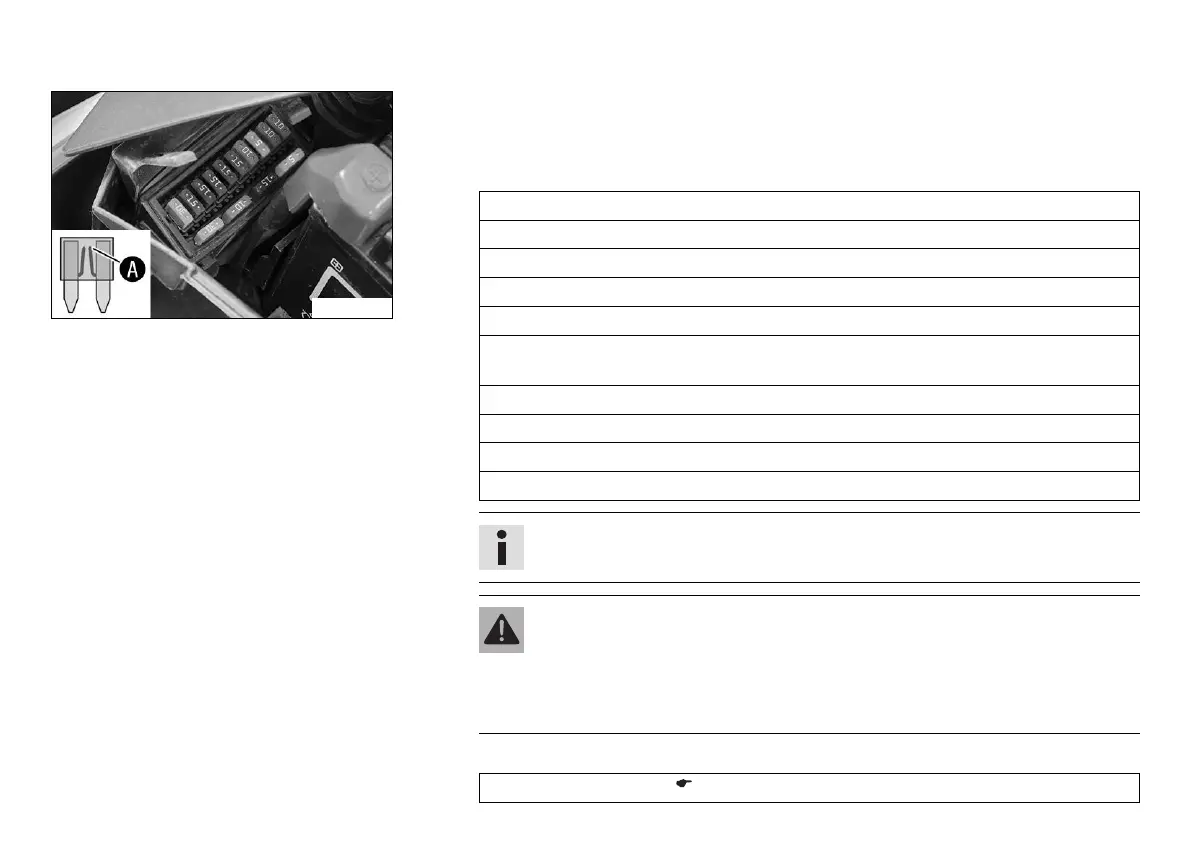

– Open fuse box cover.
– Remove the defective fuse.
Guideline
Fuse 1 - 30 A - main fuse
Fuse 2 - 15 A - start auxiliary relay, alarm system (OPTIONAL)
Fuse 3 - 15 A - control unit, power relay
Fuse 4 - 15 A - ignition coil
Fuse 5 - 15 A - radiator fan
Fuse 6 - 15 A - horn, brake light, turn signal, high beam, low beam, parking light,
tail light, license plate lamp
Fuse 7 - 10 A - combination instrument, control unit
Fuse 8 - 5 A - ABS control unit
Fuse 9 - 10 A - auxiliary equipment
Fuse 10 - 10 A - auxiliary equipment
Info
A defective fuse is indicated by a burned-out fuse wire

.
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are
used.
– Use only fuses with the prescribed amperage. Never bypass or repair
fuses.
– Use spare fuses with the correct rating only.
Fuse (75011088005) ( p. 187)

KTM RC 125 Specifications

General

Displacement	124.7 cc
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Bore x Stroke	58 mm x 47.2 mm
Engine Type	Liquid-cooled, 1-cylinder, 4-stroke engine
Max Torque	12 Nm @ 8, 000 rpm
Front Suspension	WP upside-down fork
Rear Suspension	WP Monoshock
Front Brake	Single disc, 4-piston caliper
Rear Brake	Single disc, single-piston caliper
Frame	Steel trellis frame
Front Tire	110/70 R17
Rear Tire	150/60-17
