12
TUNING
THE
CHASSIS
104
12.1
Adjusting
the
compression
damping
of
the
fork
(R
model)
Info
The
hydraulic
compressio
n
damping
determines
the
fork
suspension
behavior.
A00280-10
–

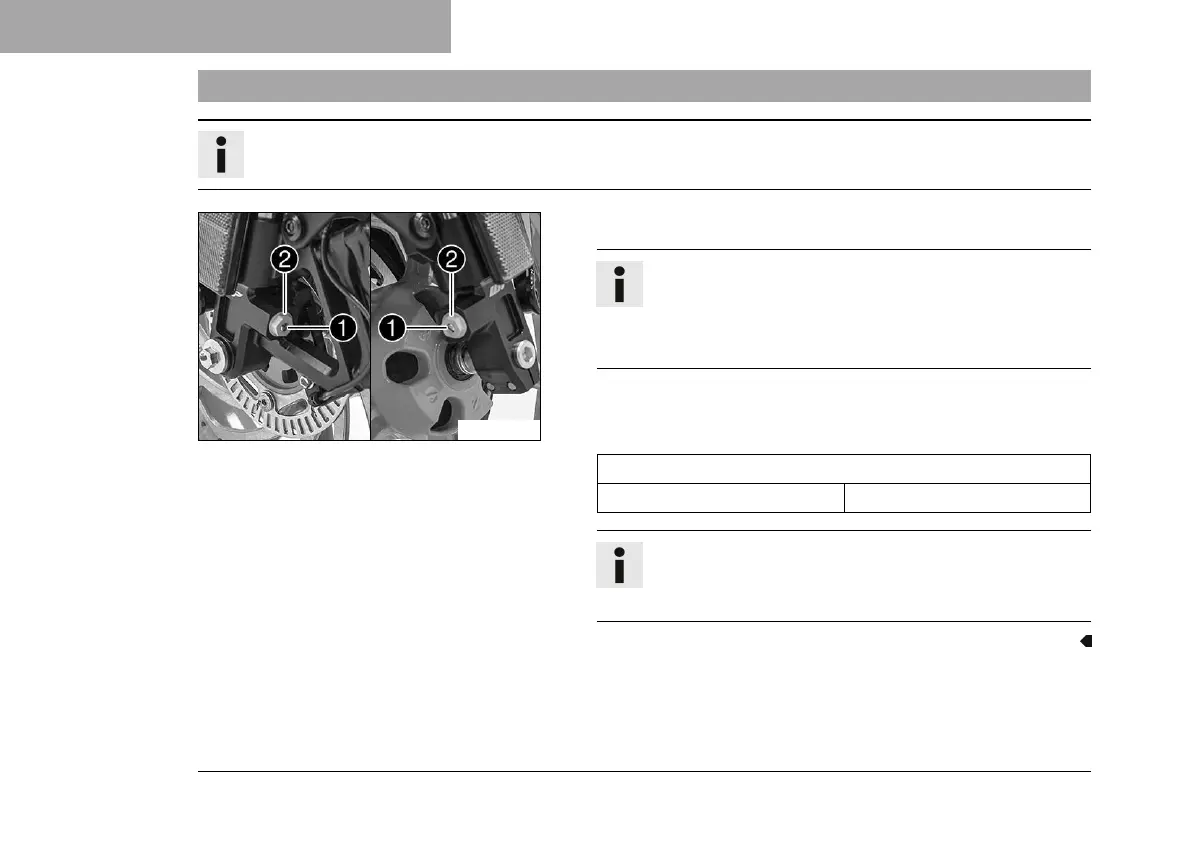

Turn
adjusting
screws
1
clockwise
all
the
way.
Info
The
adjusting
screws
1
are
located
at
the
bottom
end
of
the
fork
legs.
Do
not
loosen
screw
caps
2
.
–
Turn
counterclockwise
by
the
number
of
clicks
corresponding
to
the
fork
type.
Guideline
Compression
damping
Standard
12
clicks
Info
Turn
clockwise
to
increase
damping;
turn
counterclock-
wise
to
reduce
damping.
105
