12 TUNING THE CHASSIS
112
A00279-11
–

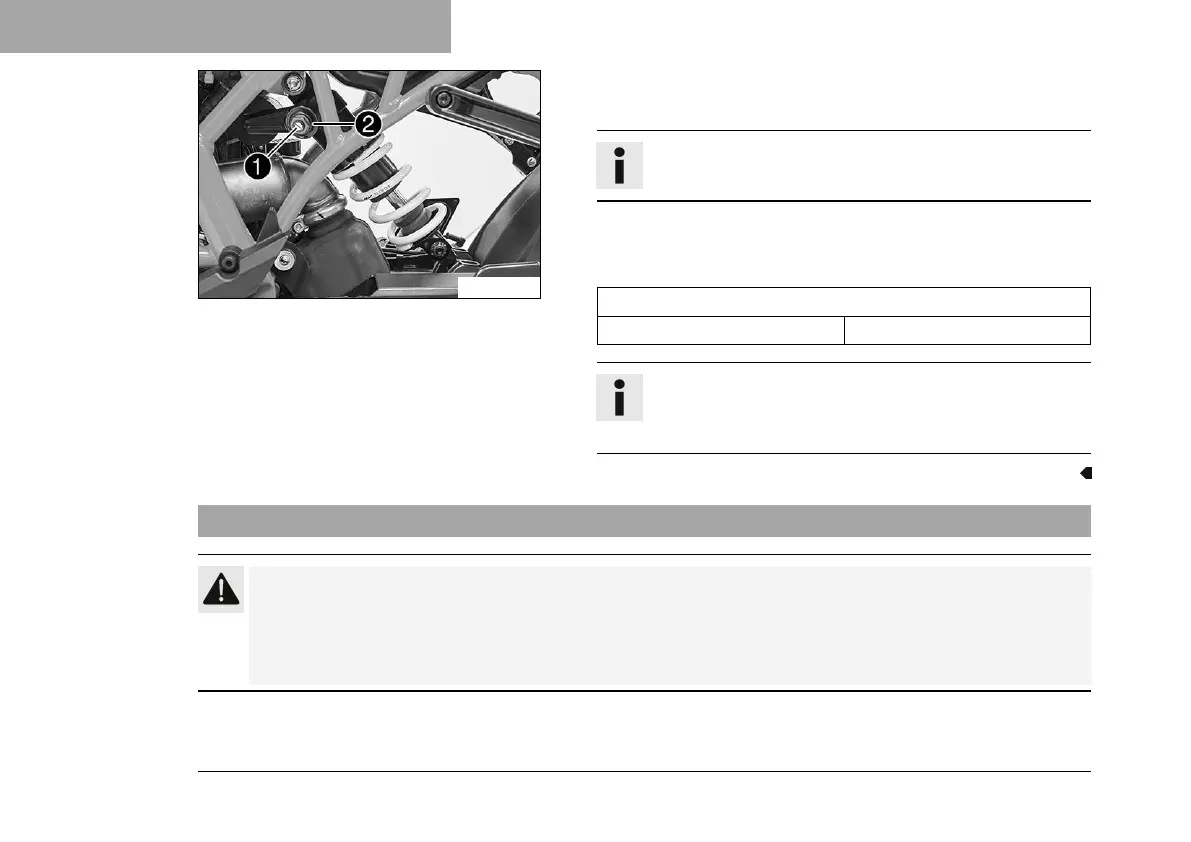

Turn adjusting screw
1
clockwise up to the last perceptible
click.
Info
Do not loosen fitting
2
!
– Turn counterclockwise by the number of clicks corresponding
to the shock absorber type.
Guideline
Compression damping, low-speed
Standard 14 clicks
Info
Turn clockwise to increase damping; turn counterclock-
wise to reduce damping.
12.8 Adjusting the rebound damping of the shock absorber (R model)
Caution
Risk of injury Parts of the shock absorber will move around if the shock absorber is detached incorrectly.
The shock absorber is filled with highly compressed nitrogen.
– Please follow the description provided. (Your authorized KTM workshop will be glad to help.)
