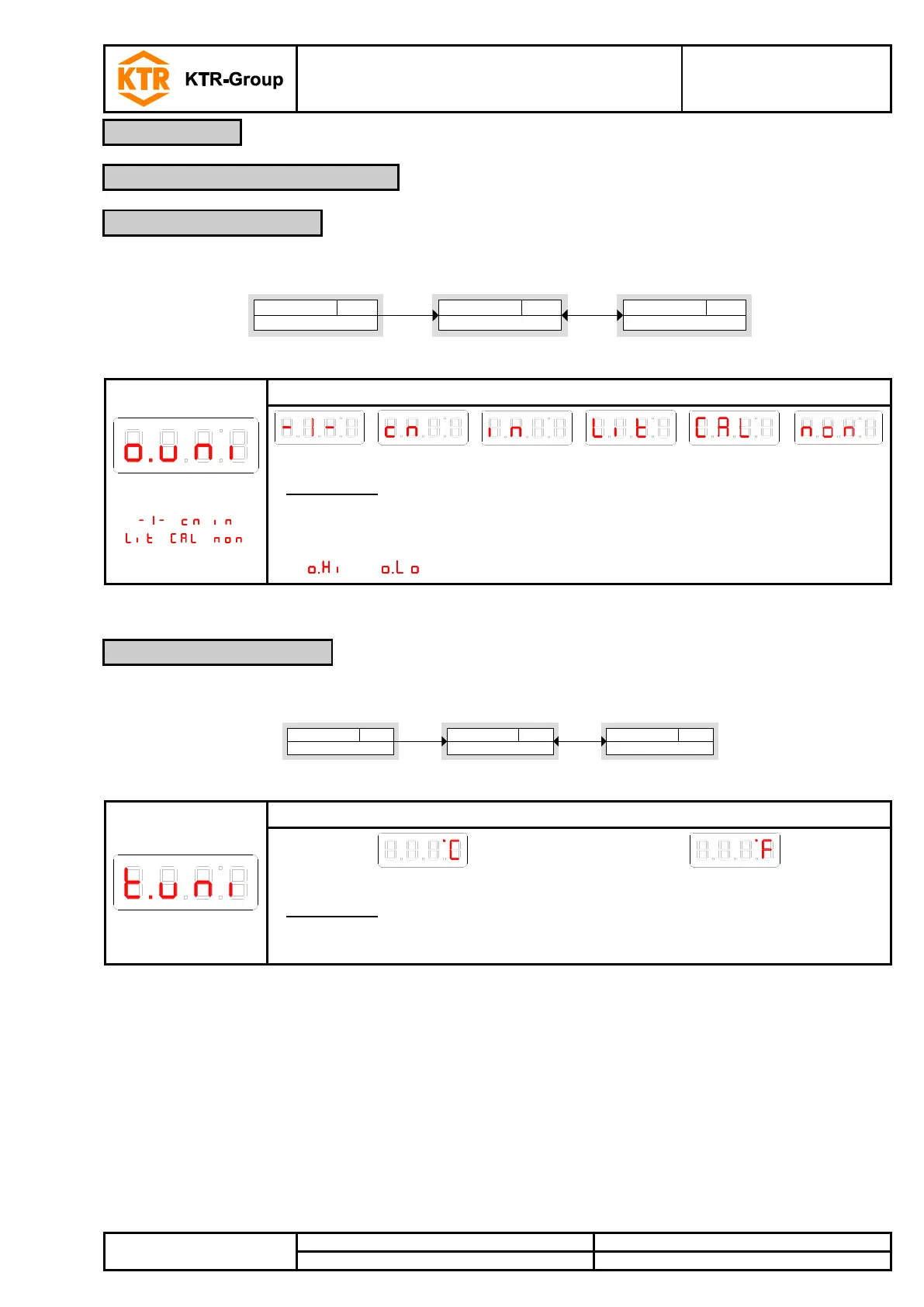

In this menu the displayed unit symbol for the filling level is defined.
Unit level
Set Unit Level
o)uni
- I - - non
Parameter
___
Basic ext. functions
Basic EF
b)EF
►►
Optional settings:
[ , , ,
, , ]
The following menu items are available:
Per cent
cm
Inch
Litre
Gallons
none
Please note:
• If „no unit“ is selected, the measured values are scaled to a 4-digit display.
• The measured values are not automatically converted. Having converted the unit
the measurement range should be scaled, if necessary (see menu filling level
and ).
In this menu the displayed unit symbol for the temperature is defined.
Unit temperature
Set Unit Temp
t )uni
;C - ;F
Parameter
;_
Basic ext. functions
Basic EF
b)EF
►►
The following menu items are available:
Degrees Celsius
Degrees Fahrenheit
Please note:
• If changing the setting, all respective settings such as setting of switching points
are amended accordingly.
4 Operation
4.6 Amendment of basic settings
4.6.1 Defining filling level
4.6.2 Defining temperature
