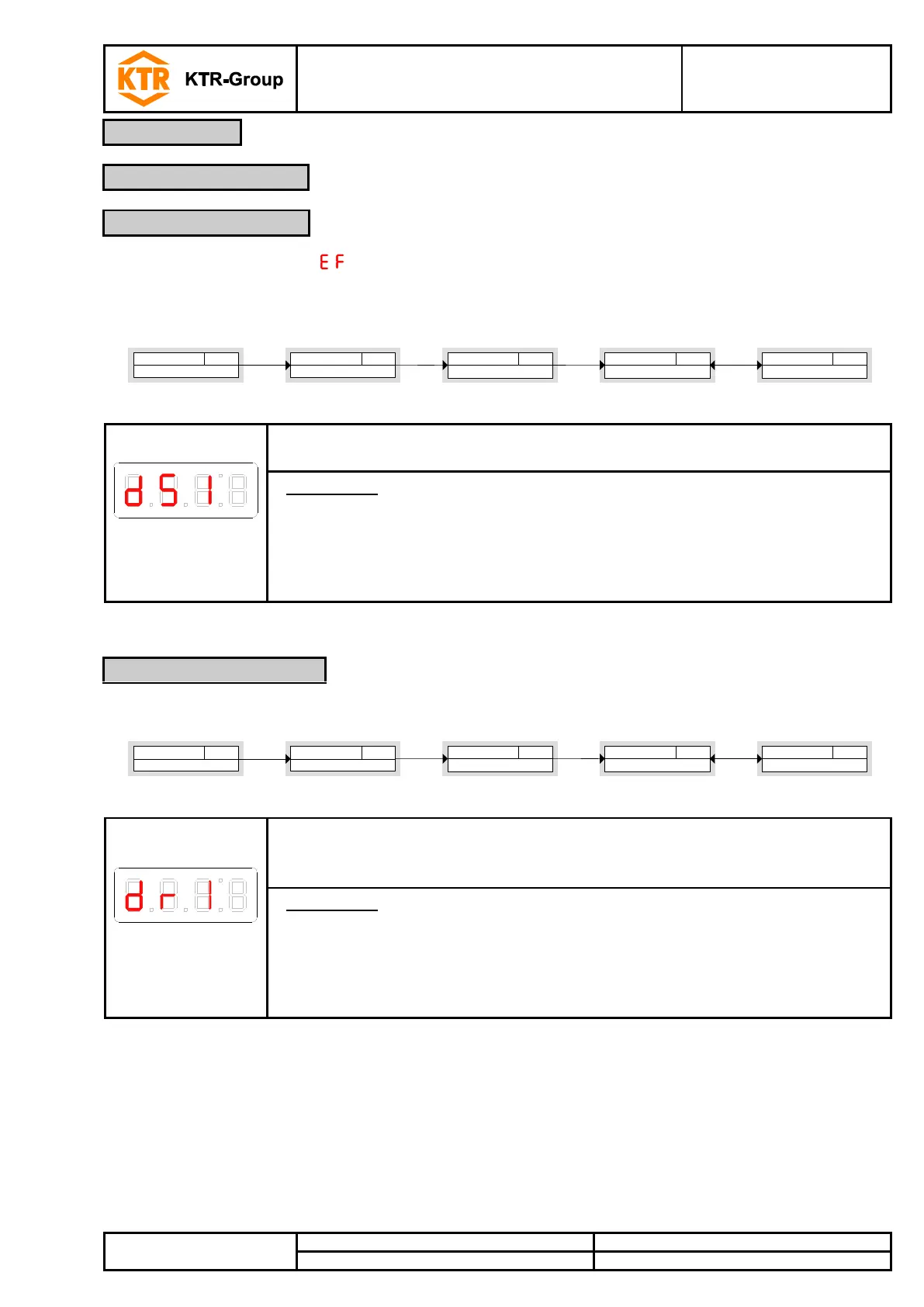

The menu Extended functions x provides further settings for the switching output x. You can find the submenu
on the second submenu level:
The delay time for set point and reset point prevents too many false alarms with turbulent conditions. The delay
for the set point is set in the following menu:
Extenden functions
EF X
EF_
Delay for OUTX on
Delay SP X
dS_
0 - 100
Parameter
___
Settings OUTX
Out X
out _
►
►
►
Main menu meas. value
Meas. value
____
►
Setting range:
0 .… 100 seconds
Time period in seconds during which the signal must remain continuous to allow
the switching output to respond.
Please note:
• If the function window was assigned to the switching output OUT x, the value set
corresponds to the delay for set point detecting when finally reaching the
measurement window.
• If the function frequency output was assigned to the switching output OUT x, this
value does not have any effect.
The delay for reset point is set in the following menu:
Delay for OUTX off
Delay RP X
dr _
0 - 100
Parameter
___
Extenden functions
EF X
EF_
Settings OUTX
Out X
out _
►
►
►
Main menu meas. value
Meas. value
____
►
Setting range:
0 .… 100 seconds
Delay for reset signal for OUT x
Time period in seconds during which the signal must remain continuous to allow
the switching output to respond.
Please note:
• If the function window was assigned to the switching output OUT 1, the value set
corresponds to the delay for set point detecting when the measurement window is
actually left.
• If the function frequency output was assigned to the switching output OUT 1, this
value does not have any effect.
4 Operation
4.7 Switching outputs
4.7.4 Delay for set point
4.7.5 Delay for reset point
