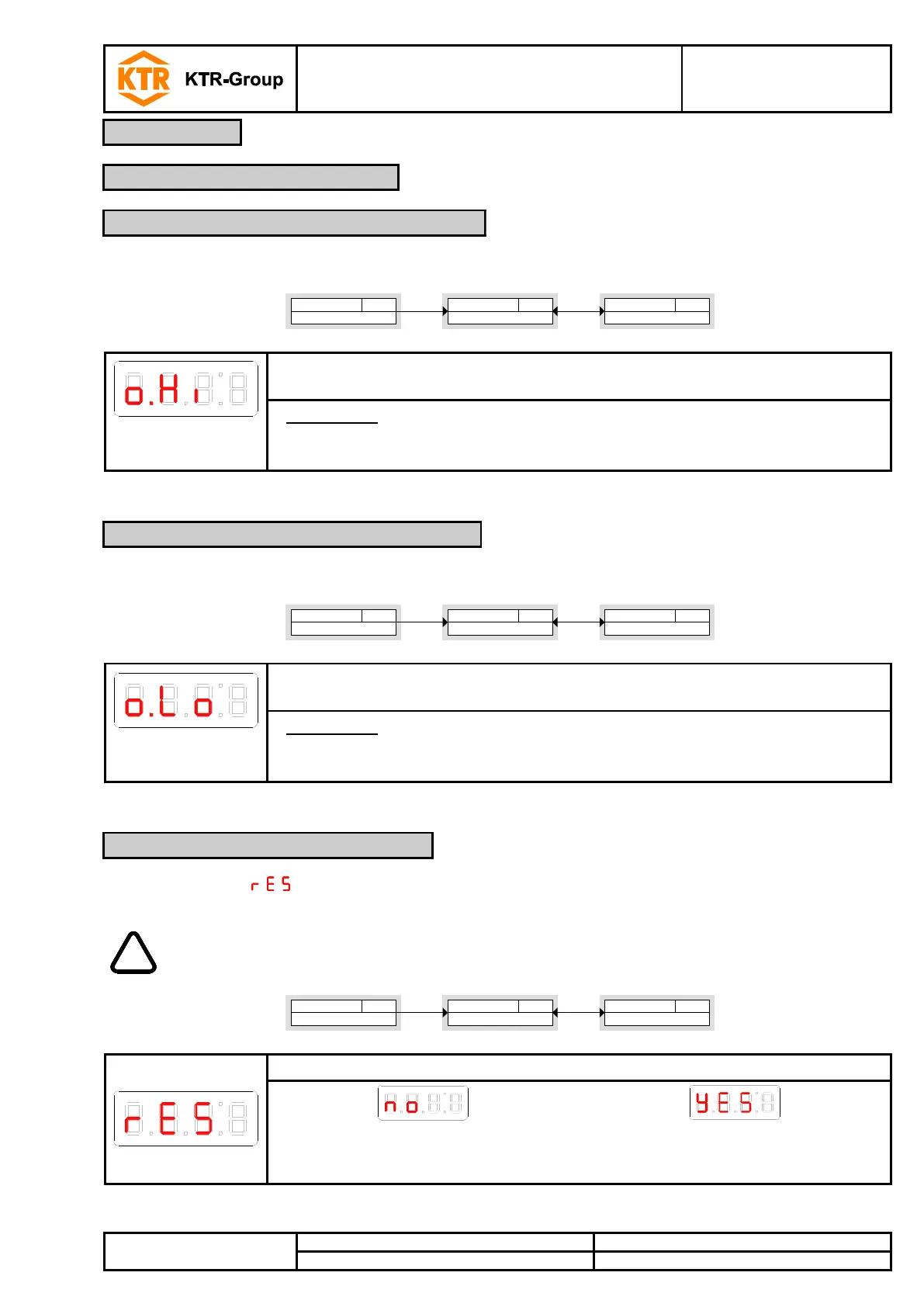

The displayed value (upper limit of the measurement range) for the maximum filling level is defined here.
Val. displayed at 100%
Set Upper
o)Hi
- 999 - 9999
Parameter
____
Basic ext. functions
Basic EF
b)EF
►►
Setting range:
-999…9999
Assignment of the maximum displayed value (upper limit of the measurement
range) to the maximum filling level
Please note:
• To prevent misoperation, the settings of the level outputs should be reviewed or
adapted after changing.
The displayed value (lower limit of the measurement range) for the minimum filling level is defined here.
- 999 - 9999
Parameter
____
Basic ext. functions
Basic EF
b)EF
►►
Val. displayed at 0%
Set Lower
o)Lo
Setting range:
-999…9999
Assignment of the maximum displayed value (upper limit of the measurement
range) to the maximum filling level
Please note:
• To prevent misoperation, the settings of the level outputs should be reviewed or
adapted after changing.
The function Reset ( ) allows to reset the factory settings. Since the limit values are reset, too, it is not
absolutely necessary to review the settings for the charging level and the temperature.
!
All modifications are lost when using the function RESET.
Basic ext. functions
Basic EF
b)EF
Factory settings
Reset
r ES
no - Yes
Confirm
___
►►
The following menu items are available:
Delivery status: NO.
The current settings are maintained.
Delivery status: Yes.
The settings are reset to the standard
factory settings.
4 Operation
4.6 Amendment of basic settings
4.6.7 Maximum displayed value of filling level
4.6.8 Minimum displayed value of filling level
4.6.9 Resetting factory settings (Reset)
