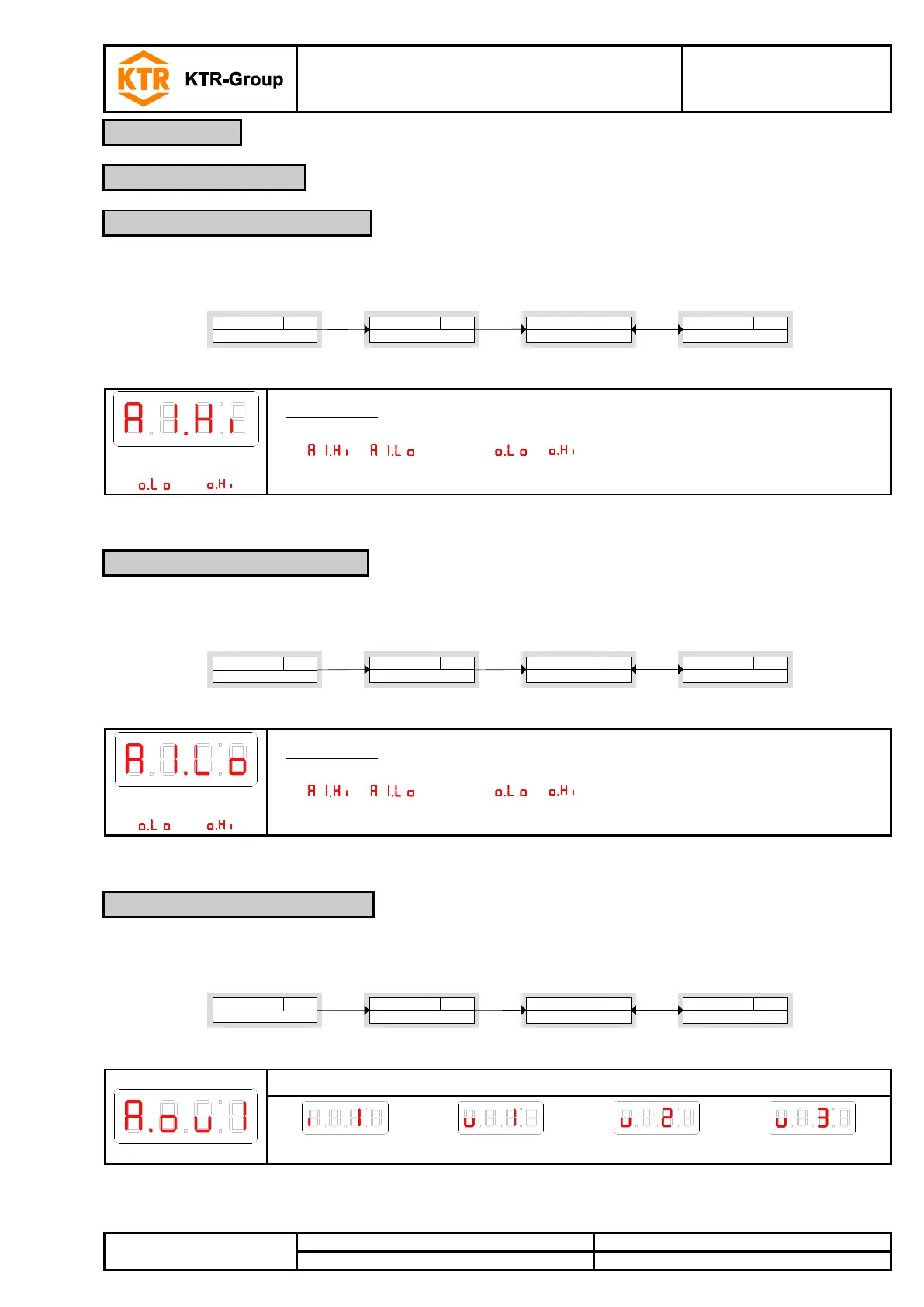

The assignment is defined as to which filling level is necessary to display the maximum analogue signal.
The setting is made in the following menu:
Settings Analog X
Analog OutX
An_
Maximum Value
Analog MaxX
A1)Hi
[ o)Lo - o)Hi ]
Parameter
____
Main menu meas. value
Meas. value
____
►
►
►
Setting range:
[ ] …. [ ]
Please note:
• The output range set must not be smaller than 10% of the measurement range:
- ≥ 10% * ( - ).
• If the range selected is too small, the analogue output value may have steps.
The assignment is defined as to which filling level is necessary to display the minimum analogue signal.
The setting is made in the following menu:
Minimum value
Analog MinX
A1)Lo
[ o)Lo - o)Hi ]
Parameter
____
Settings Analog X
Analog OutX
An_
►
►
Main menu meas. value
Meas. value
____
►
Setting range:
[ ] …. [ ]
Please note:
• The output range set must not be smaller than 10% of the measurement range:
- ≥ 10% * ( - ).
• If the range selected is too small, the analogue output value may have steps.
The analogue output can be defined as voltage or current output with different value ranges. The setting is made
in the following menu:
Output characteristics
Set A.OUX
A)ou_
i 1 - u 3
Parameter
_ _
Settings Analog X
Analog OutX
An_
►
►
Main menu meas. value
Meas. value
____
►
The following menu items are available:
4 mA to 20 mA
2 V to 10 V
0 V to 10 V
0 V to 5 V
4 Operation
4.8 Analogue outputs
4.8.1 Assignment of upper limit
4.8.2 Assignment of lower limit
4.8.3 Defining the type of signal
