Kubota B1830 Workshop Manual

ENGINE
B1830,B2230,B2530,B3030, WSM
1-S23
(2) Separating Cabin from Tractor Body (CABIN)

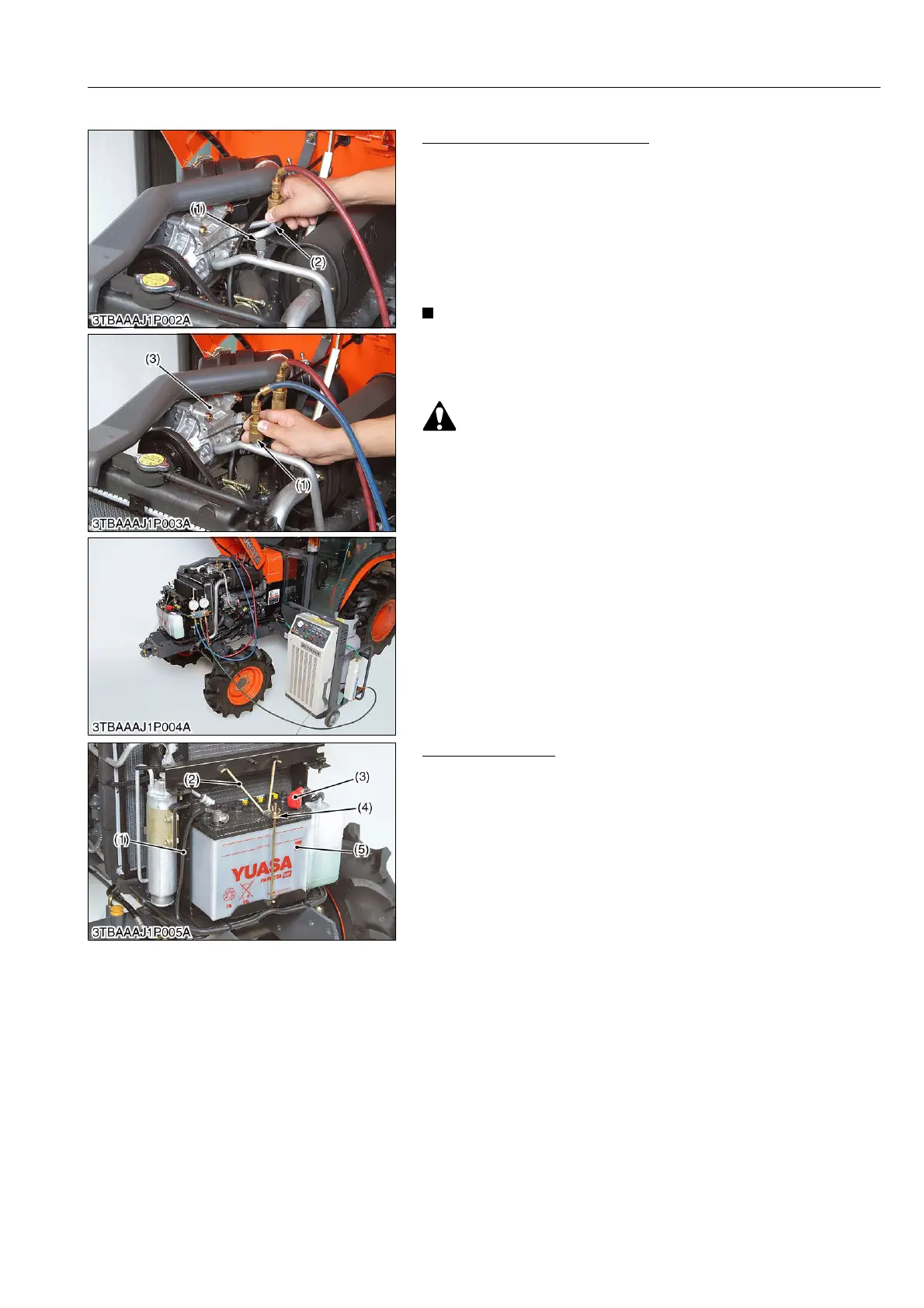

Discharging R134a Refrigerant
Prepare for the R134a refrigerant recovery and recycling
machine.
1. Connect low pressure side hose (blue) from the recovery and
recycling machine to LO pressure side charging valve (1) on the
compressor (3). Connect high pressure side hose (red) to HI
pressure side charging valve (2) on the compressor (3).
2. Follow the manufacturers instructions and discharge the
system.
IMPORTANT
• Use only R134a refrigerant recovery and recycling
machine. Eliminate mixing R134a equipment, refrigerant,
and refrigerant oils with R12 systems to prevent
compressor damage.
CAUTION
• Protect fingers with cloth against frostbite by refrigerant
when disconnecting the hose to the charging valve.
9Y1210003ENS0026US0
Removing Battery
1. Removing the wing nut (4).
2. Remove the battery retainer (2).
3. Disconnect the battery negative cable (1) from the battery (5).
4. Disconnect the battery positive cable (3) from the battery (5).
5. Remove the battery (5).
(When reassembling)
• Connect the battery positive cable first.
• Connect the battery negative cable second.
9Y1210003ENS0027US0
(1) LO Pressure Side Charging Valve
(2) HI Pressure Side Charging Valve
(3) Compressor
(1) Battery Negative Cable
(2) Battery Retainer
(3) Battery Positive Cable
(4) Wing Nut
(5) Battery
