TRANSMISSION
B1830,B2230,B2530,B3030, WSM
3-S41

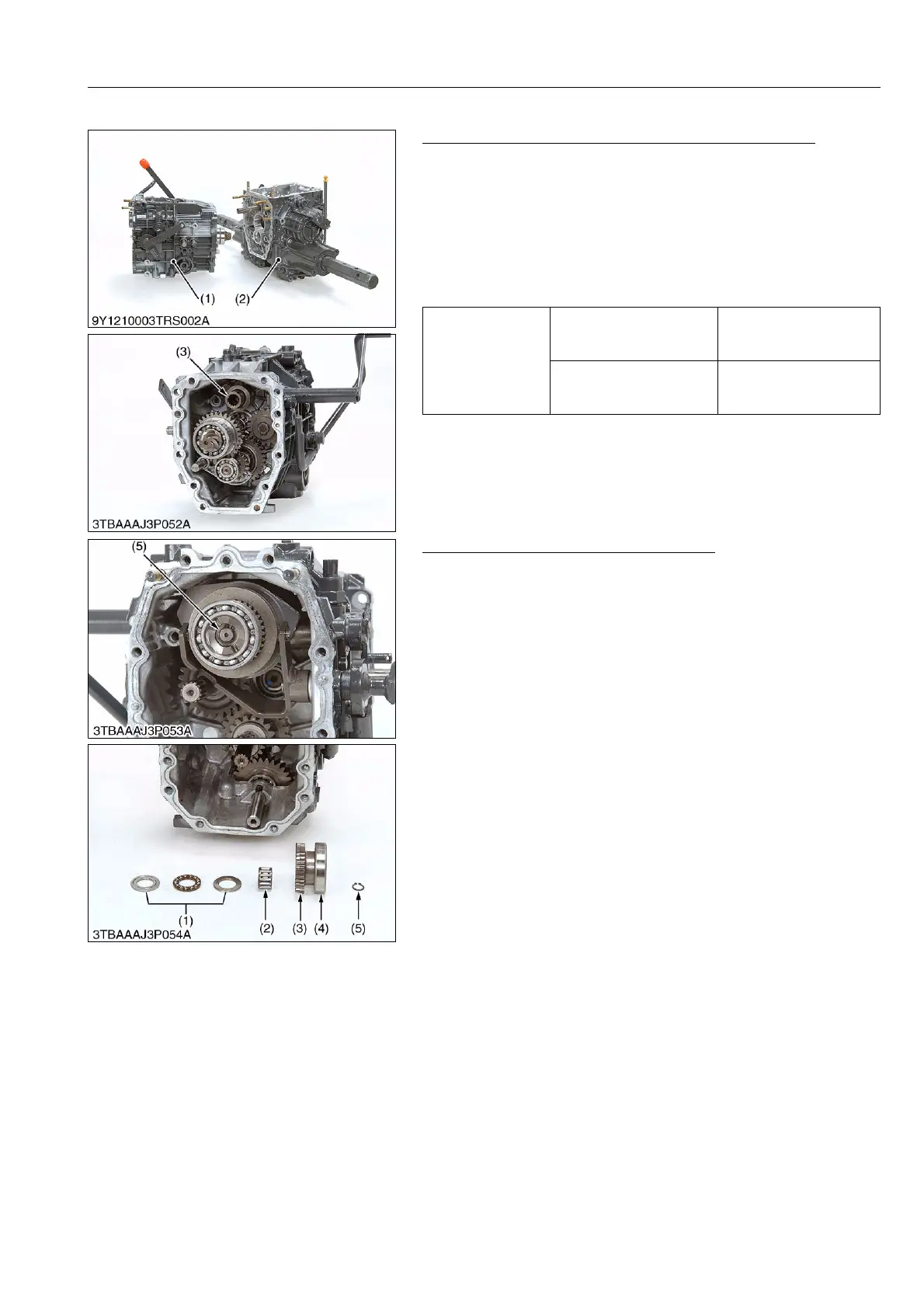

(3) Mechanical PTO Clutch Assembly
Separating Transmission Case from Differential Case
1. Remove the transmission mounting bolts and nuts.
2. Separate the transmission case (1) from the differential case
(2).
(When reassembling)
• Install the coupling to the mechanical PTO clutch shaft.
• Apply the liquid gasket (Three Bond 1206D or equivalent).
• Tighten the transmission mounting bolts and the nuts to the
specified torque.
9Y1210003TRS0051US0
Removing One-Way Clutch Spline Boss
1. Remove the cir-clip (5) from the PTO clutch shaft.
2. Remove the one-way clutch spline boss (3) with the bearing (4).
3. Remove the needle bearing (2) and the thrust ball bearing (1).
9Y1210003TRS0052US0
Tightening torque
Transmission case
mounting bolt (M10)
39.3 to 44.1 N·m
4.0 to 4.5 kgf·m
29.0 to 32.5 lbf·ft
Transmission mounting nut
(M10)
39.3 to 44.1 N·m
4.0 to 4.5 kgf·m
29.0 to 32.5 lbf·ft
(1) Transmission Case
(2) Differential Case
(3) Coupling
(1) Thrust Ball Bearing
(2) Needle Bearing
(3) One-way Clutch Spline Boss
(4) Ball Bearing
(5) Cir-clip
