TRANSMISSION
B1830,B2230,B2530,B3030, WSM
3-S57
(8) Front Wheel Drive Shaft
4WD Shaft

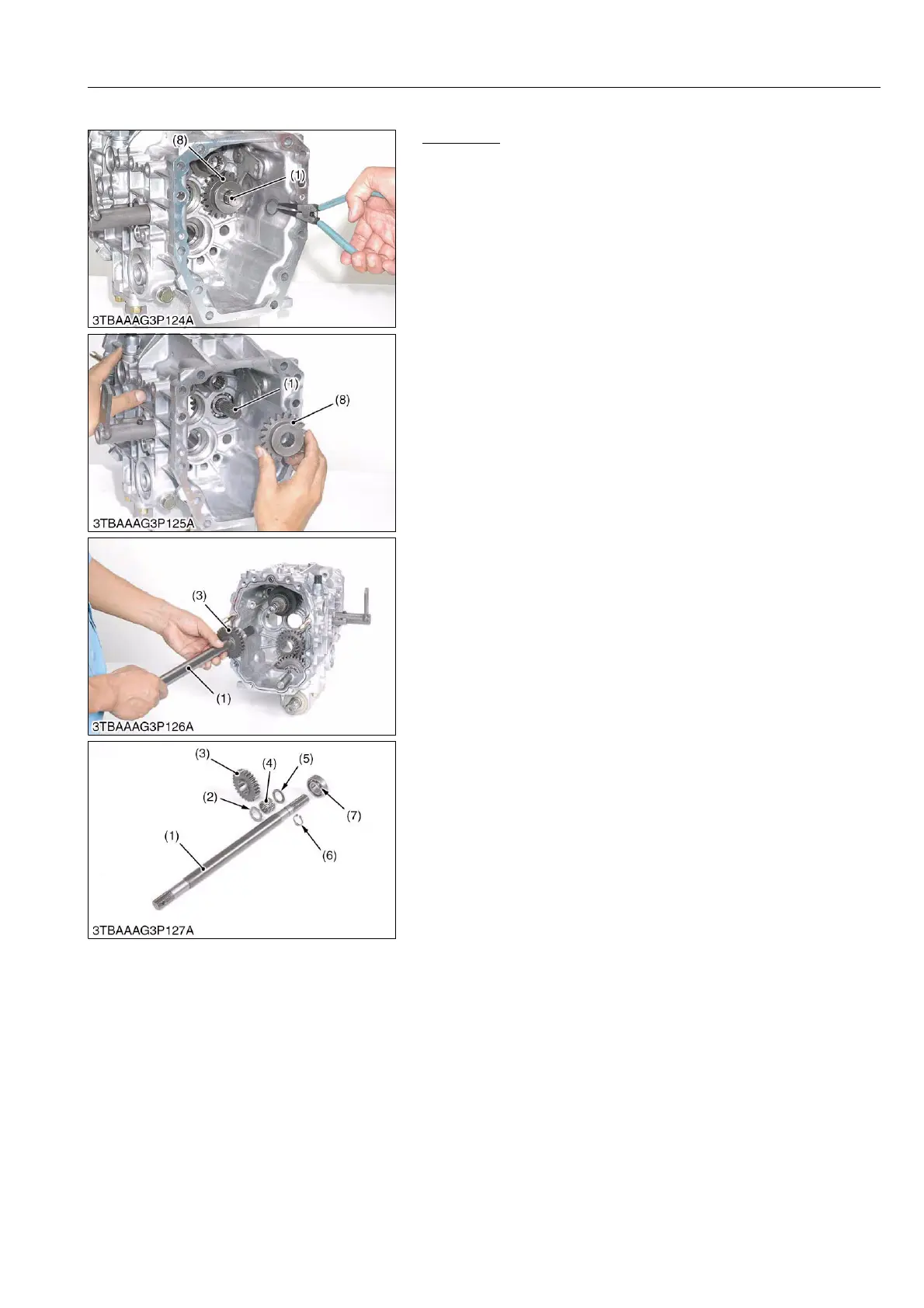

1. Remove the cir-clip from the 4WD shaft (1).
2. Remove the 4WD gear (8) from the 4WD shaft (1).
3. Remove the 4WD shaft (1) with the 26T gear (3).
4. Remove the 26T gear (3) and the ball bearing (7).
9Y1210003TRS0075US0
(1) 4WD Shaft
(2) Collar
(3) 26T Gear
(4) Needle Bearing
(5) Collar
(6) Cir-clip
(7) Ball Bearing
(8) 4WD Gear
B1830, B2230, B2530: 20T
B3030: 19T
