ELECTRICAL SYSTEM
B1830,B2230,B2530,B3030, WSM
9-M28

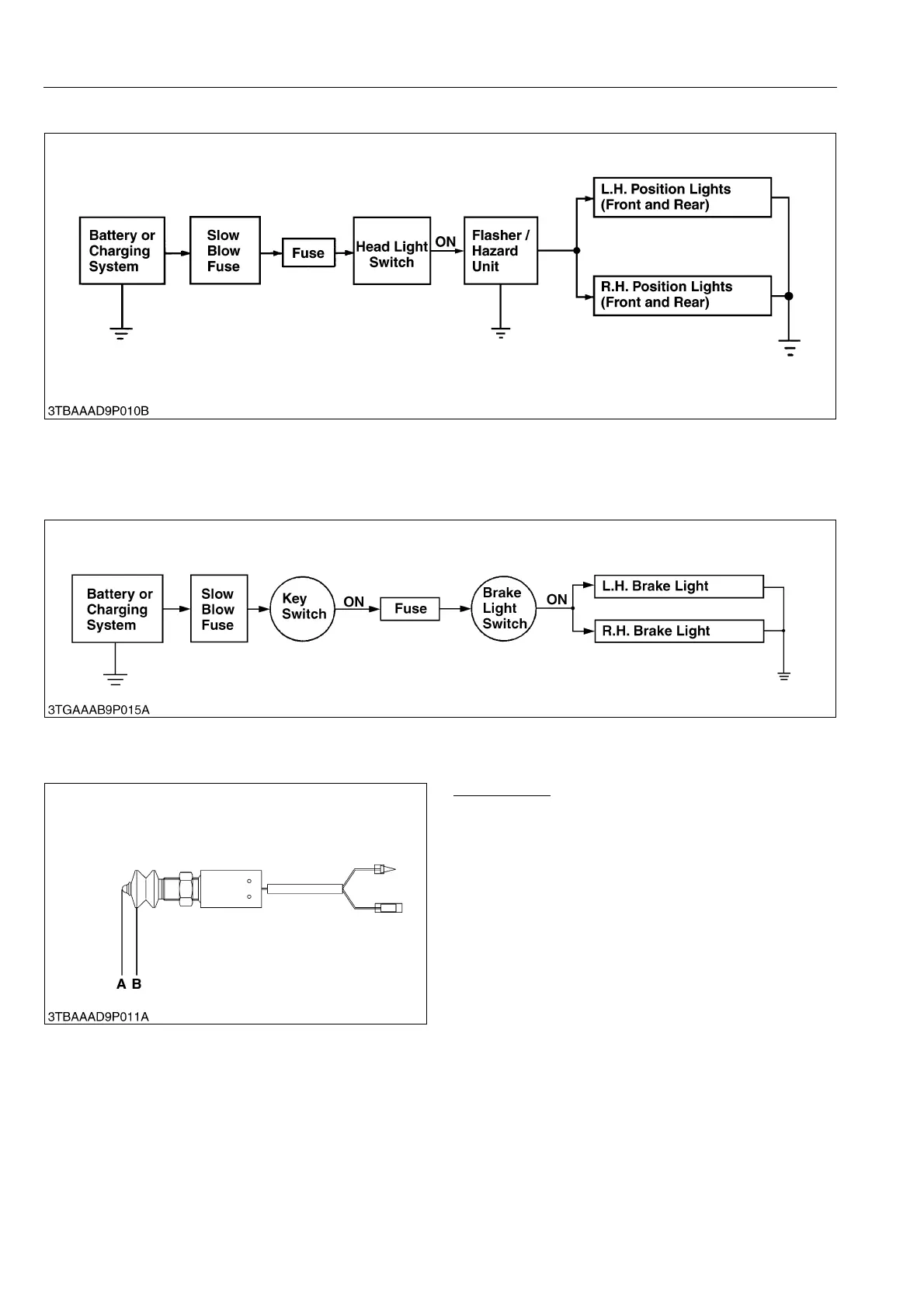

[4] POSITION (PARKING) LIGHT
The position (parking) light switch is combined with the head light switch of the combination switch.
The position lights are lighted up by the head light switch.
9Y1210003ELM0025US0
[5] BRAKE LIGHT
The brake lights are lighted up by brake switch.
Current passes the circuit as shown in the figure above.
9Y1210003ELM0026US0
Brake Switch
Brake switch is turned on by pushing a brake pedal
and turned off by releasing it.
9Y1210003ELM0027US0
A: ON B: OFF
