CABIN
B1830,B2230,B2530,B3030, WSM
10-M26
(4) Pressure Switch
The pressure switch detects the pressure in the
refrigerant cycle, and when something is wrong, turns off
the magnetic clutch to prevent the component from
damage. This system has a dual type pressure switch,
and this switch controls low pressure cut off and high
pressure cut off.
 Pressure Switch (Dual Type)
The pressure switch is installed in the inlet line (liquid
line) between the receiver and expansion valve.
The contact of pressure switch is normally an open
type.
9Y1210003CAM0032US0

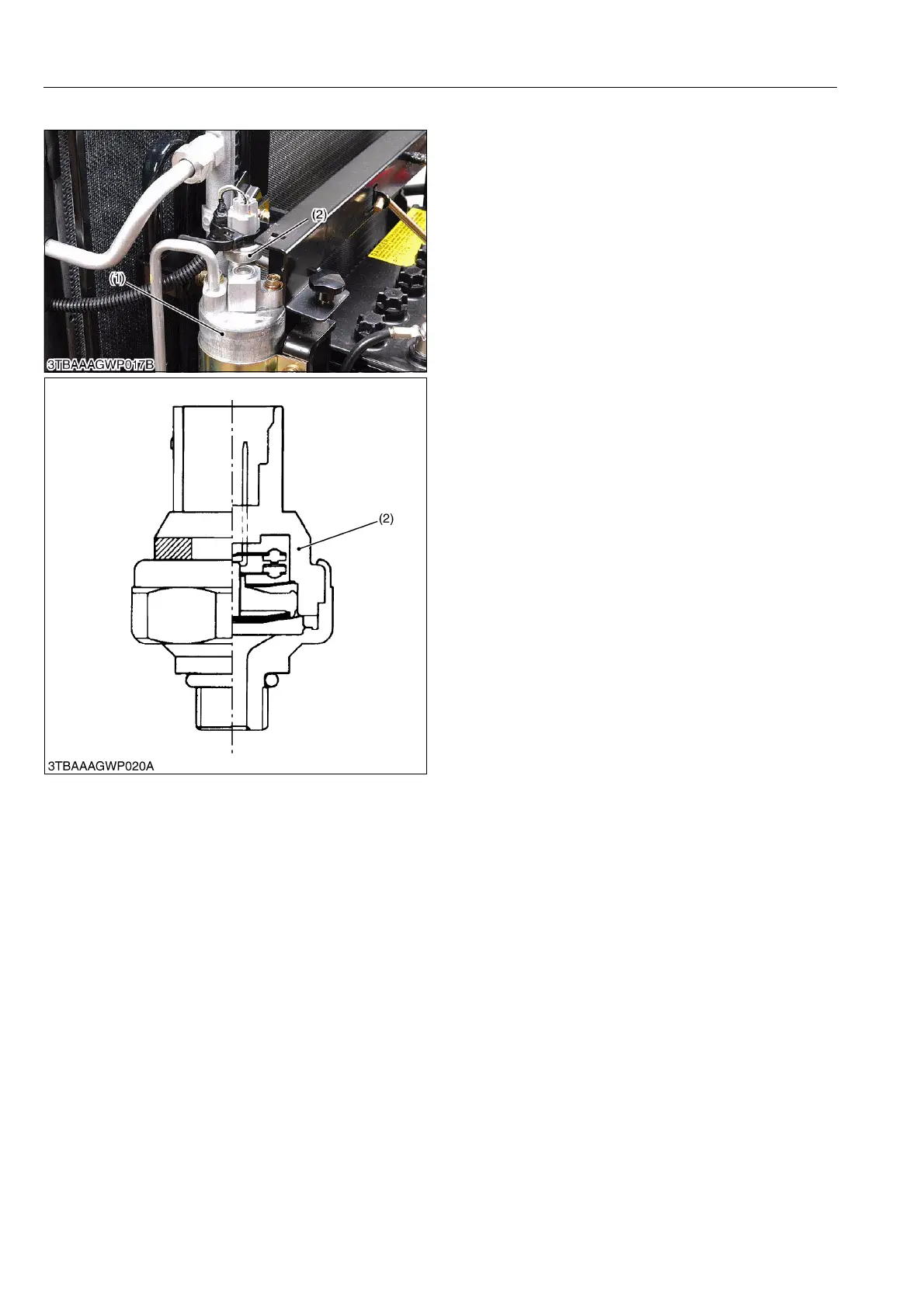

(1) Receiver (2) Pressure Switch
To Next Page
