CABIN
B1830,B2230,B2530,B3030, WSM
10-M1

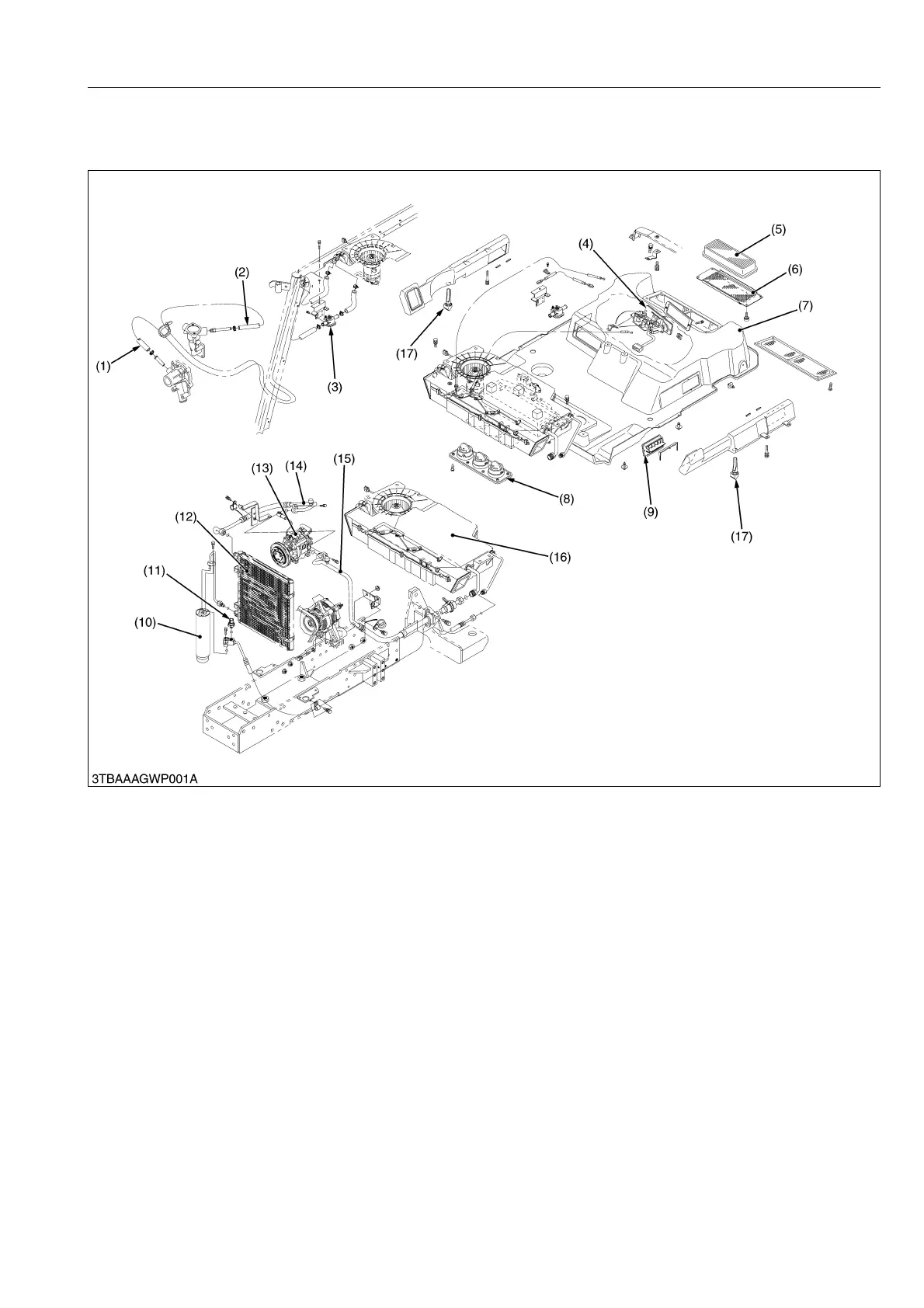

1. OUTLINE OF AIR CONDITIONING SYSTEM
[1] STRUCTURE
(To be continued)
(1) Heater Hose (Outside)
(2) Heater (Inside)
(3) Water Valve
(4) Control Panel
(5) Outside Air Filter
(6) Inside Air Filter
(7) Roof
(8) Front Air Outlet
(9) Side Air Outlet
(10) Receiver
(11) Pressure Switch
(12) Condenser
(13) Compressor
(14) High Pressure Pipe
(15) Low Pressure Pipe
(16) Air Conditioner Unit
(17) Door Air Outlet
KiSC issued 05, 2012 A
