4. CHECKING, DISASSEMBLING AND SERVICING
[1] CHECKING AND ADJUSTING
Adjusting Brake Pedal Free Travel
CAUTION
• Stop the engine and chock the wheels before checking
brake pedal.
• The difference between the right and left pedal plays must
be equal.
1. Release the parking brake.
2. Slightly depress the brake pedals and measure free travel at top
of pedal stroke.
3. If the measurement is not within the factory specifications,
loosen the lock nut and turn the turnbuckles to adjust the brake
rod length.
4. Retighten the lock nut securely.
Keep the free travel in the right and left brake pedals equal.
NOTE
• After checking brake pedal free play, be sure to engage the
parking brake lever fully and check to see that the brake
pedals are securely locked.
9Y1210003BRS0004US0
Brake pedal free travel Factory specification
30 to 40 mm
1.18 to 1.57 in.
Keep the free travel in the
right and left brake pedals
equal.

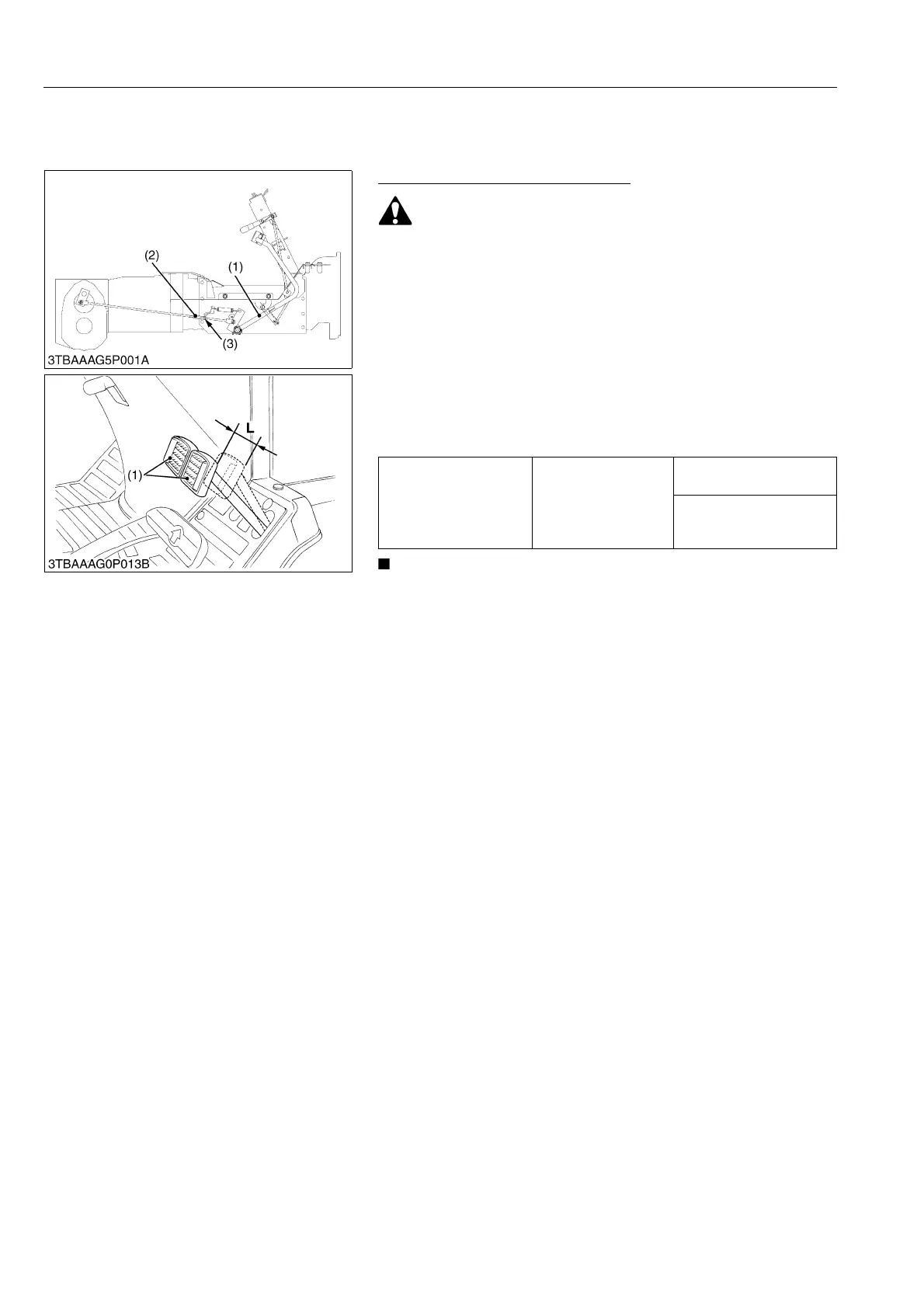

(1) Brake Pedal
(2) Turnbuckle
(3) Lock Nut
L: Brake Pedal Free Travel
