Kubota M8540 Workshop Manual

3-M14
M8540, M9540, WSM
TRANSMISSION

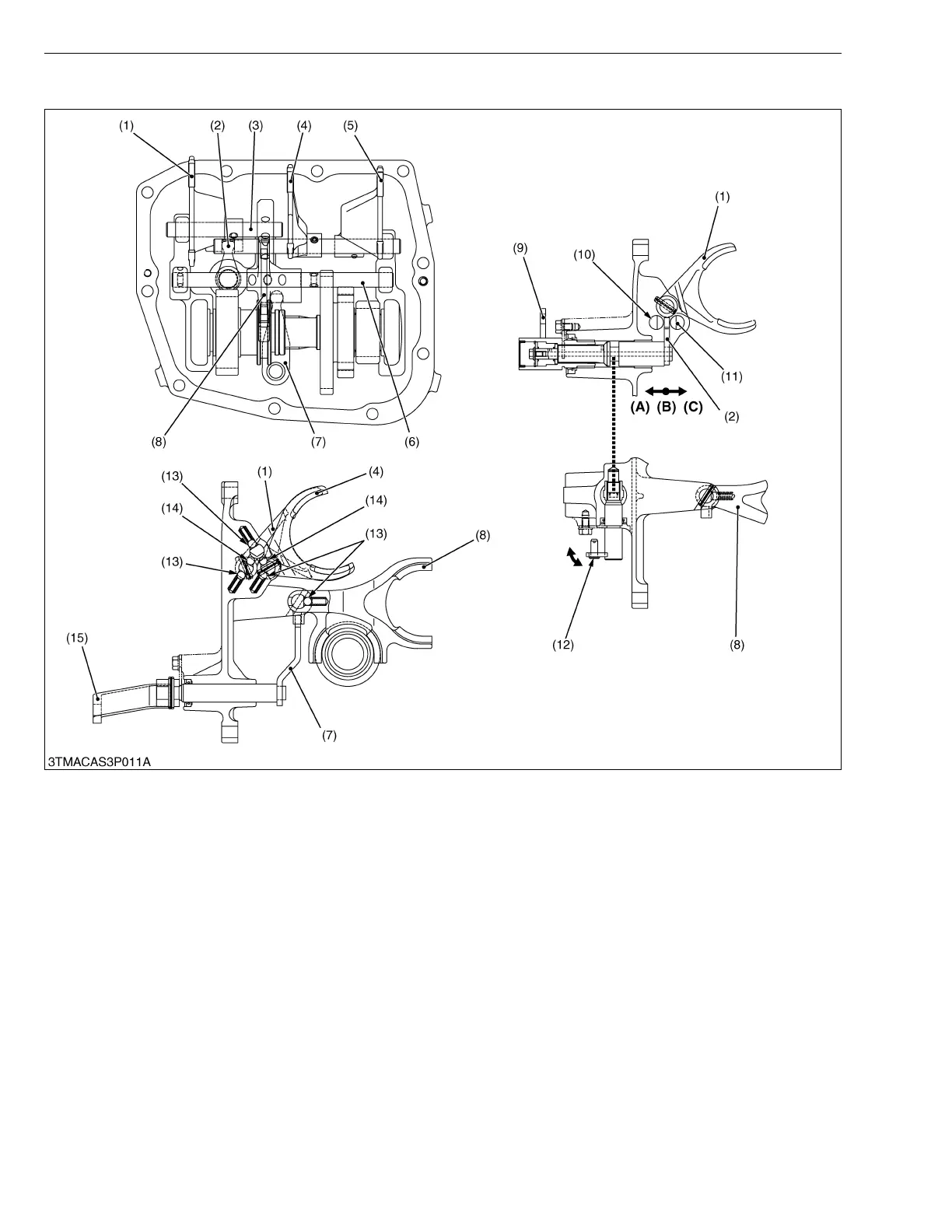

[5] SHIFT FORK ROD AND FORK
1. Interlock ball (14) restrain the movement of the 1st-2nd shift fork rod (10), 3rd-4th shift fork rod (3) and 5th-6th shift
fork rod (4) at the same time. As a result, double engagement of the gear is prevented.
2. Detent balls (13) prevent the self disengagement of the gears.
3. When operate the main shift lever (9) with select motion, select the select arm (2) by rotating the select lever (12).
There for select arm (2) engage to (A) (1st-2nd shift fork rod (10)) or (B) (3rd-4th shift fork (1)) or (C) (5th-6th shift
lock rod (11)).
4. When operate the H-L-C lever (15), operate the H-L-C fork engage to Hi, Lo or Creep speed position.
(1) 3rd-4th Shift Fork
(2) Select Arm
(3) 3rd-4th Shift Fork Rod
(4) 5th-6th Shift Fork
(5) 1st-2nd Shift Fork
(6) H-L-C Rod
(7) H-L-C Arm
(8) H-L-C Fork
(9) Main Shift Lever
(10) 1st-2nd Shift Fork Rod
(11) 5th-6th Shift Fork Rod
(12) Select Lever
(13) Detent Ball
(14) Interlock Ball
(15) H-L-C Lever
(A) Engage to 1st-2nd Shift Fork
Rod
(B) Engage to 3rd-4th Shift Fork
(C) Engage to 5th-6th Shift Fork
Rod
KiSC issued 09, 2008 A

Kubota M8540 Specifications

General

Engine Type	Diesel
Engine Model	Kubota V3800-DI-T
Engine Power	85 hp
PTO Power	72 HP
Drive	4WD
Hydraulic System	Open Center
3-Point Hitch	Category II
Displacement	230 cu in (3.8 L)
