Kubota M8540 Workshop Manual

3-S15
M8540, M9540, WSM
TRANSMISSION
5. DISASSEMBLING AND ASSEMBLING
[1] HYDRAULIC SHUTTLE VALVE AND SOLENOID VALVE ASSEMBLY
(1) Removing Fuel Tank (ROPS Model)
Draining Transmission Fluid and Fuel
1. Refer to “7. CHECK AND MAINTENANCE” and “4.
LUBRICANTS, FUEL AND COOLANT” at “G. GENERAL”
section.
W1012355

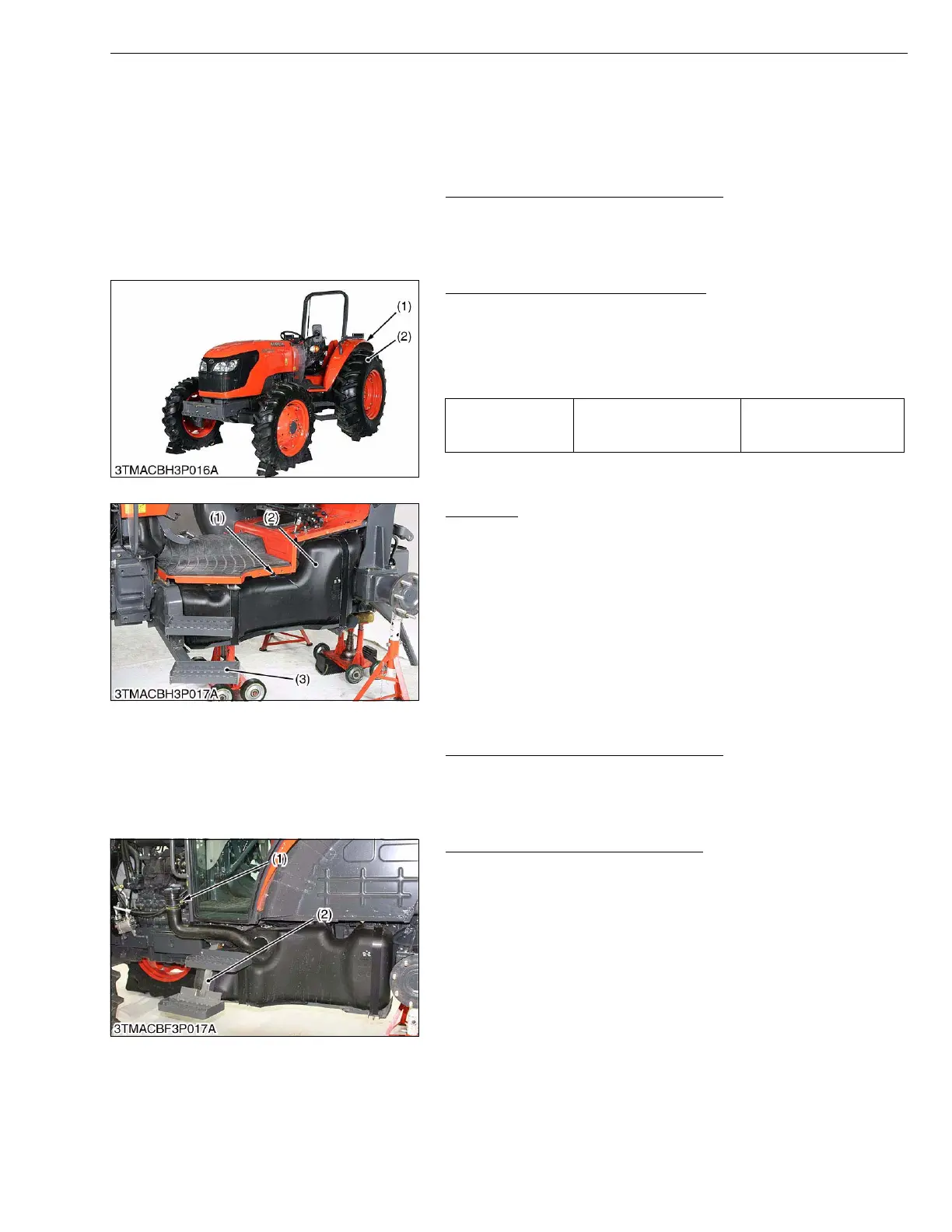

Rear Wheel (L.H.) and Fender (L.H.)
1. Place the disassembling stand under the transmission case.
2. Remove the rear wheel (2).
3. Place the disassembling stand under the rear axle case.
4. Remove the fender (1).
(When reassembling)
W1016895
Fuel Tank
1. Remove the auxiliary step (3).
2. Disconnect the wire harness from fuel level sensor (1).
3. Remove the fuel filling port screw.
4. Remove the fuel hose and overflow hose.
5. Remove the fuel tank (2).
W1017026
(2) Removing Fuel Tank (CABIN Model)
Draining Transmission Fluid and Fuel
1. Refer to “7. CHECK AND MAINTENANCE” and “4.
LUBRICANTS, FUEL AND COOLANT” at “G. GENERAL”
section.
W1015022
Fuel Filling Port and Auxiliary Step
1. Remove the fuel filling port mounting screw (1).
2. Remove the auxiliary step (2).
W1015076
Tightening torque Rear wheel mounting nut
343.2 to 393.3 N·m
35.0 to 40.1 kgf·m
253.2 to 290.0 lbf·ft
(1) Fender (2) Rear Wheel
(1) Fuel Level Sensor
(2) Fuel Tank
(3) Auxiliary Step
(1) Fuel Filling Port Mounting Screw (2) Auxiliary Step
KiSC issued 09, 2008 A

Kubota M8540 Specifications

General

Engine Type	Diesel
Engine Model	Kubota V3800-DI-T
Engine Power	85 hp
PTO Power	72 HP
Drive	4WD
Hydraulic System	Open Center
3-Point Hitch	Category II
Displacement	230 cu in (3.8 L)
