Kubota M8540 Workshop Manual

3-S21
M8540, M9540, WSM
TRANSMISSION
(5) Bonnet (CABIN Model)
Bonnet
1. Open the bonnet (1) and disconnect the battery negative
terminal.
2. Disconnect the connector (3) for head lights.
3. Disconnect the dampers (4).
4. Remove the bonnet (1).
5. Remove the both side covers (2).
6. Remove the muffler pipe (8).
(When reassembling)
• The connector (3) should be placed within the space of controller
pipe (7), power steering controller (5) and stay (6).
IMPORTANTQ
• When disconnecting the battery cables, disconnect the
grounding cable first. When connecting, positive cable first.
W1095434
(6) Air Cleaner Harness Connector
Air Cleaner Harness
1. Disconnect the 1P connectors from the air cleaner switch (1).
2. Remove the air cleaner harness clamp.
W1017939

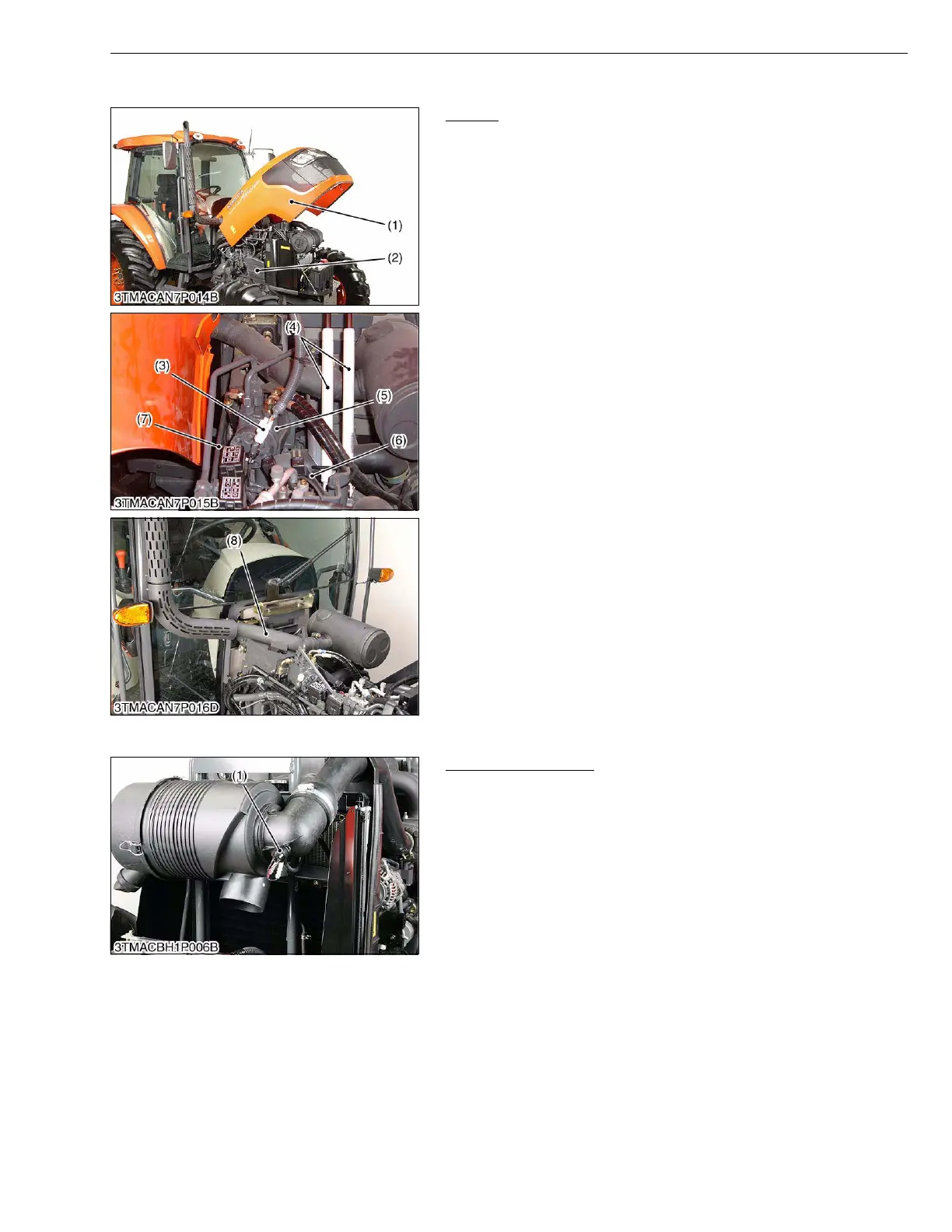

(1) Bonnet
(2) Side Cover
(3) Connector
(4) Damper
(5) Power Steering Controller
(6) Stay
(7) Controller Pipe
(8) Muffler Pipe
(1) Air Cleaner Switch
KiSC issued 09, 2008 A
