BRAKES

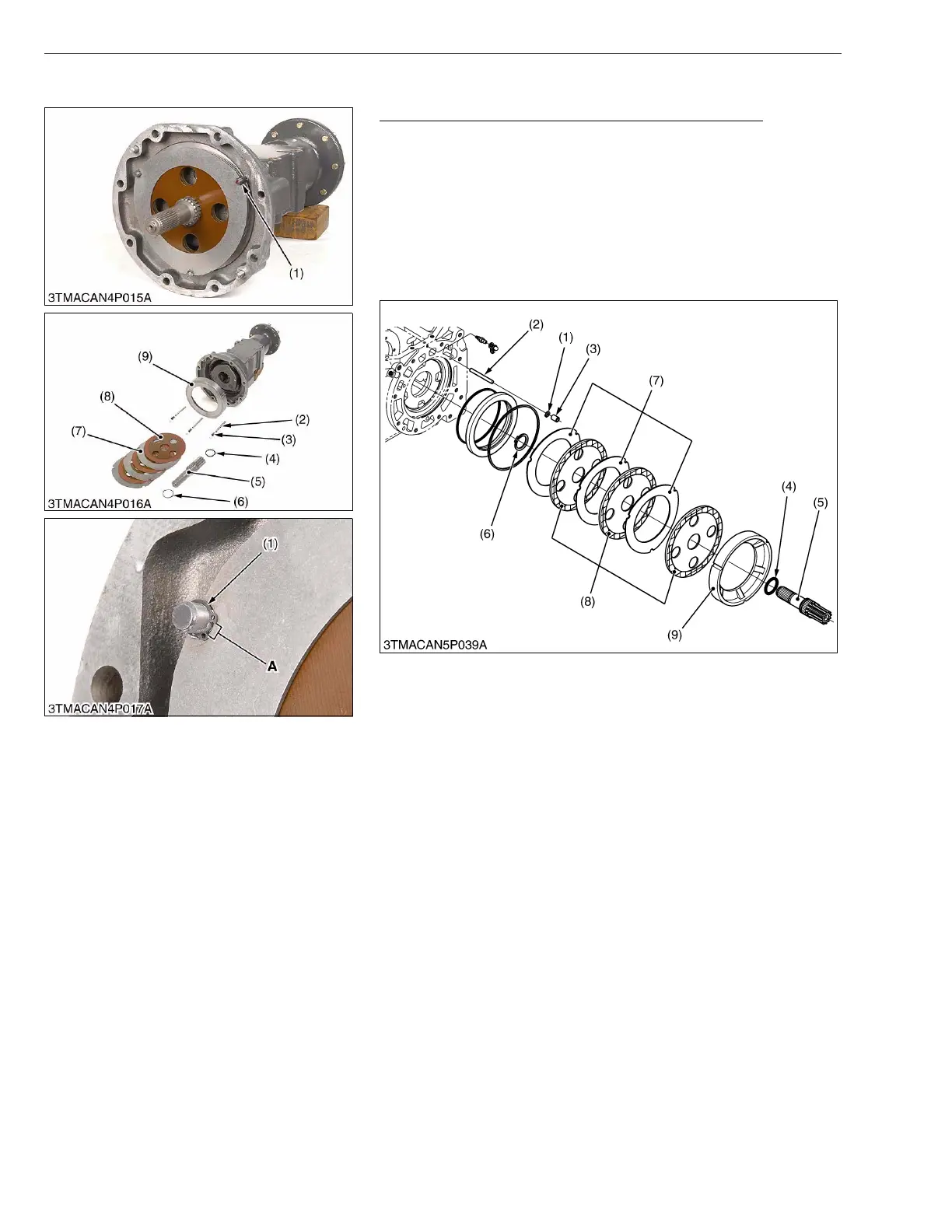

(6) Brake Disc and Plate
Brake Shaft, Brake Disc, Steel Plate and Brake Plate
1. Remove the external circlip (1).
2. Draw out the brake shaft (5) with brake disc (8) and steel plates
(7).
3. Remove the external circlip (6).
4. Remove the brake plate (9), collar (3) and pin (2).
(When reassembling)
• Place the brake discs (8) so that the holes aligned to next holes.
• The pin (2) does not have groove for external circlip (1).
• Face the external circlip (1) gap to brake shaft.
W1018899
(1) External Circlip
(2) Pin
(3) Collar
(4) O-ring
(5) Brake Shaft
(6) External Circlip
(7) Steel Plate
(8) Brake Disc
(9) Brake Plate
A : Gap
