5-M1
M8540, M9540, WSM
BRAKES
1. TRAVELLING BRAKE AND TRAILER BRAKE

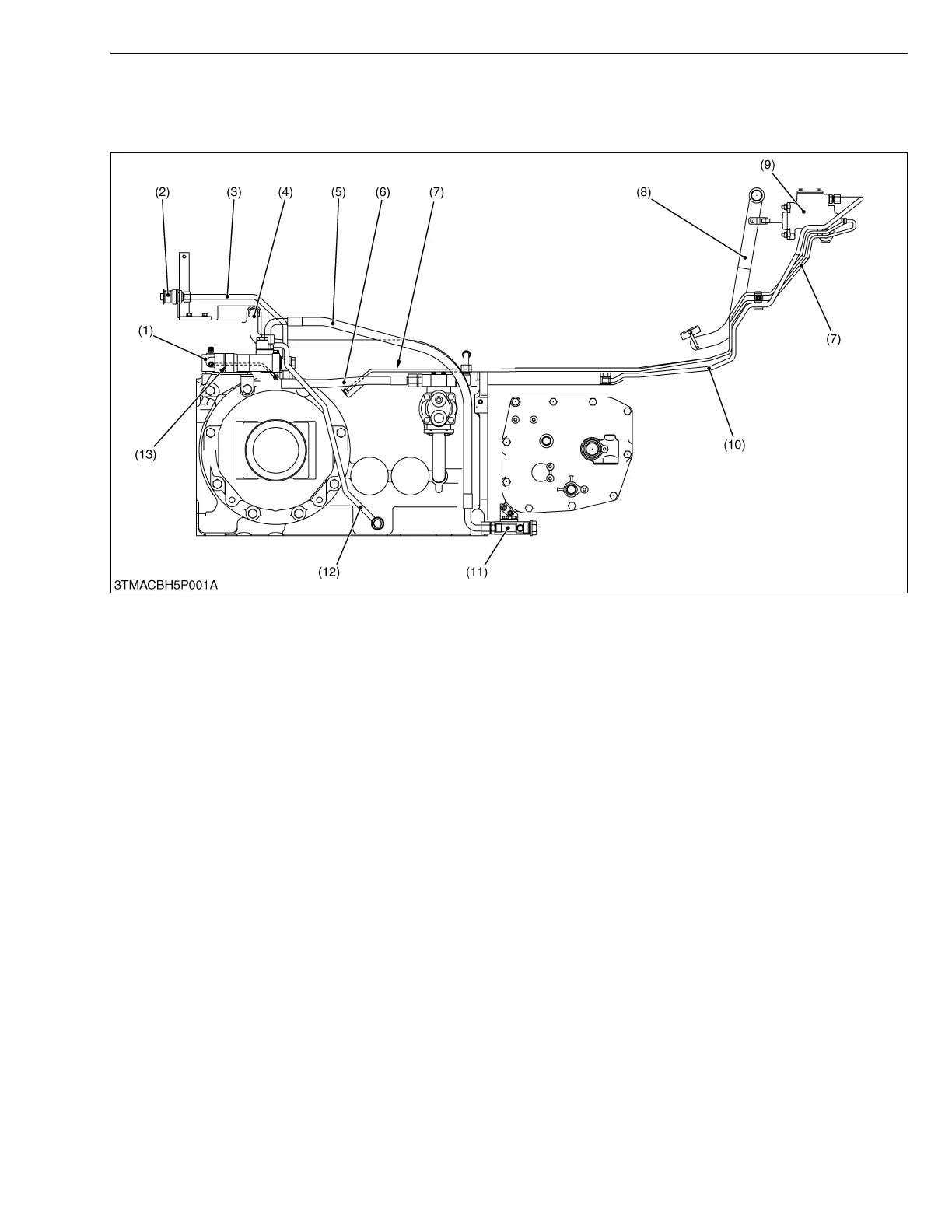

[1] STRUCRURE
(1) Trailer Brake Valve
(2) Trailer Brake Coupler
(3) Trailer Brake Pipe
(4) Delivery Pipe (Hose)
(To 3P Hydraulic System)
(5) Delivery Pipe (To Outlet Block)
(6) Delivery Pipe (Hose)
(From Hydraulic Pump)
(7) Brake Pipe
(8) Brake Pedal
(9) Master Cylinder
(10) Return Pipe (Master Cylinder)
(11) Outlet Block
(12) Return Pipe (Trailer Brake
Valve)
(13) Pilot Pipe
