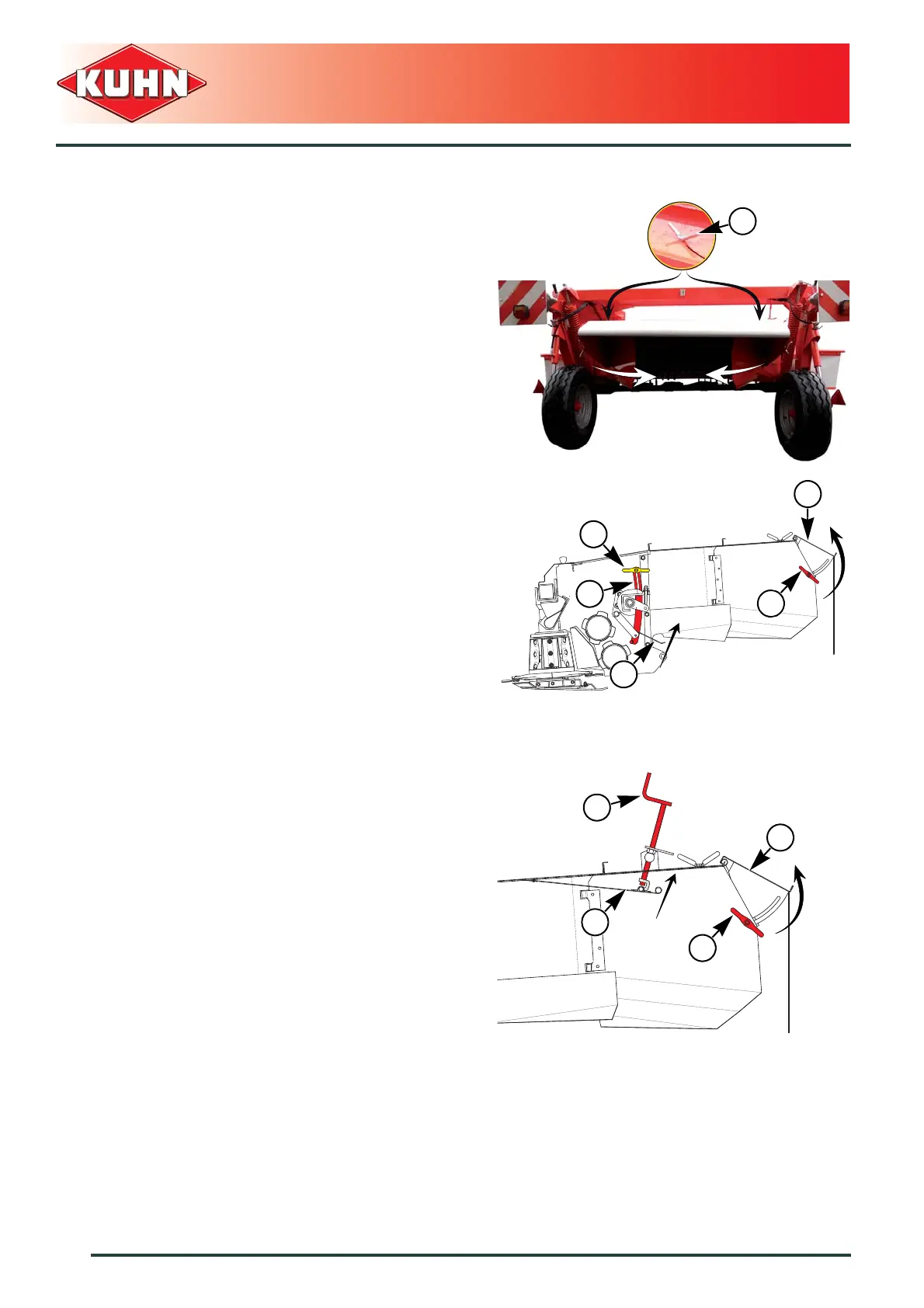

 Swathing system
Minimum windrow width:
- Loosen 2 handles (1).
- Pivot swath shields inwards to reduce the swath
width.
- Tighten 2 handles (1).
FC302RG
- Loosen 2 handles (1) (1 on each side).
- Raise windrow curtain (2).
- Tighten 2 handles (1).
- Loosen 2 handles (3) (1 on each side).
- Raise the inner swath shield (4) using control (5).
- Tighten 2 handles (3).
FC352RG
- Loosen 2 handles (1) (1 on each side).
- Raise windrow curtain (2).
- Tighten 2 handles (1).
- Raise the inner swath shield (3) using control (4).
