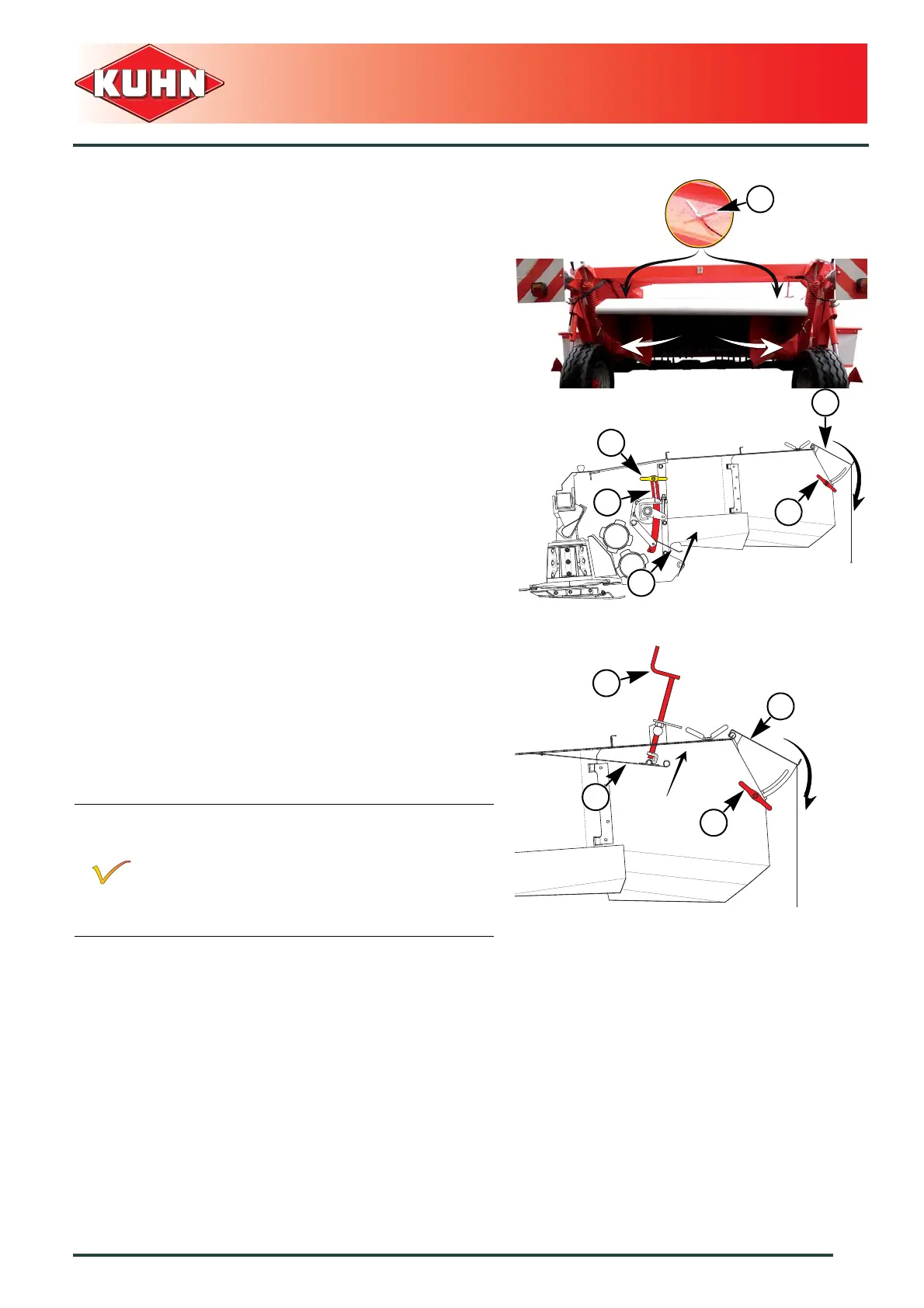

Maximum windrow width:
- Loosen 2 handles (1).
- Pivot swath shields outwards to increase the swath
width.
- Tighten 2 handles (1).
FC302RG
- Loosen 2 handles (1) (1 on each side).
- Lower windrow curtain (2).
- Tighten 2 handles (1).
- Loosen 2 handles (3) (1 on each side).
- Raise the inner swath shield (4) using control (5).
- Tighten 2 handles (3).
FC352RG
- Loosen 2 handles (1) (1 on each side).
- Lower windrow curtain (2).
- Tighten 2 handles (1).
- Raise the inner swath shield (3) using control (4).
FC302RG:
The swath width can be adjusted of
approximately 0.80 to 2.20 m (2’7’’ - 7’3’’).
FC352RG:
The swath width can be adjusted of
approximately 1.10 to 2.70 m (3’7’’ - 8’10’’).
