KYMCO CV3 Series User Manual

3
Simplified Maintenance and Repair
108
7

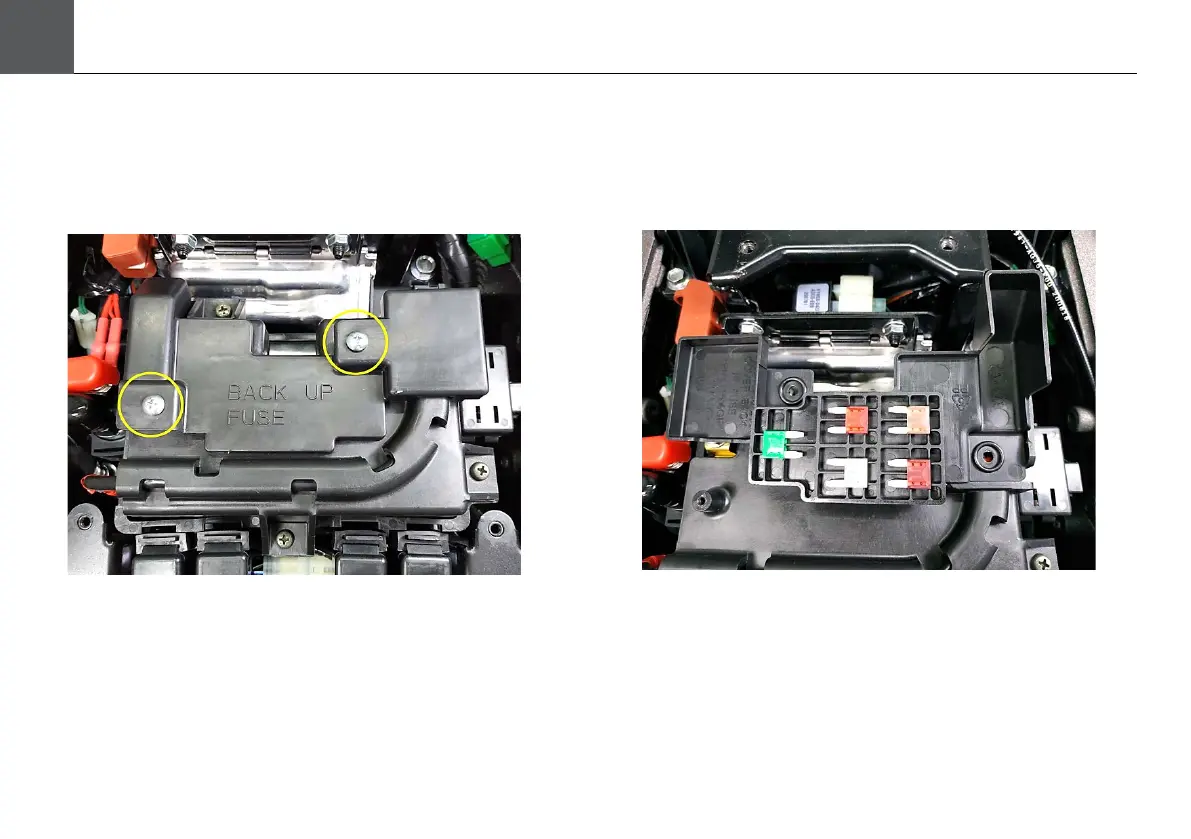

Backup fuse
When replacing the fuse, the spare fuse should be
placed on the top side of the battery protective cover.
Remove the 2 screws from the top side of the cover.
Remove the backup fuse cover.
Flip to its back to obtain the backup fuse.

KYMCO CV3 Series Specifications

General

Displacement	550.4 cc
Front Suspension	Telescopic fork
Rear Tire	160/60-15
Fuel Capacity	15.5 liters (4.1 gallons)
ABS	Yes
Max Power	51 hp @ 7500 rpm
Fuel System	Electronic fuel injection
Transmission	CVT
Front Brake	Dual disc
Rear Brake	Single disc
Weight	280 kg
Seat Height	795 mm
Max Torque	53 Nm @ 5750 rpm
Front Tire	120/70-15
