KYMCO CV3 Series User Manual

3
Simplified Maintenance and Repair
107
7
Fuse Replacement
The fuse is located to the left of the battery. Open the
fuse cover to get to the fuse.
 Turn KEYLESS Main Switch off, check for blown Fuse.
 Only replace with a fuse of specified capacity.
 Identify the cause of a blown fuse before replacing it.

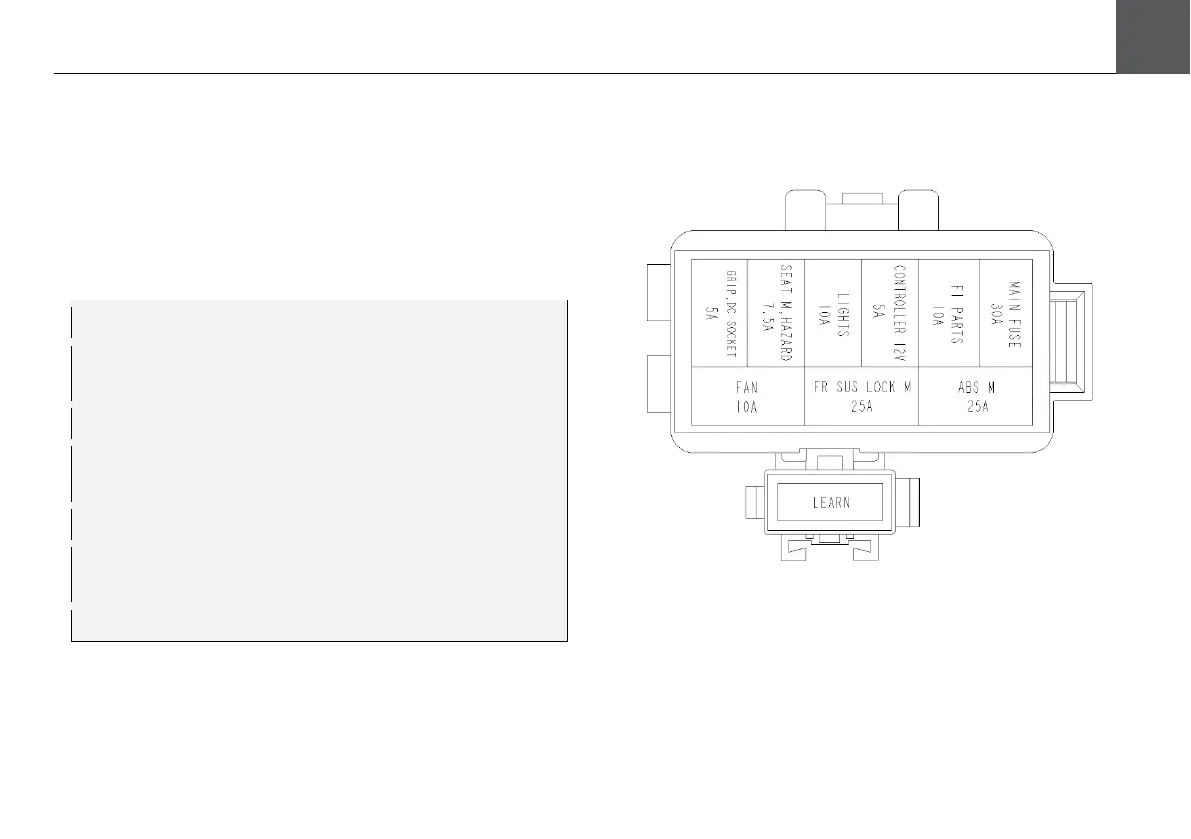

Fuse Specification:
MAIN FUSE：
FI PARTS：
CONTROLLER
12V：
30A
10A
5A
LIGHTS：
SEAT
M,HAZARD：
GRIP,DC SOCKET：
10A
7.5A
5A
FAN：
FR SUS LOCK
M：
ABS M：
10A
25A
25A

KYMCO CV3 Series Specifications

General

Displacement	550.4 cc
Front Suspension	Telescopic fork
Rear Tire	160/60-15
Fuel Capacity	15.5 liters (4.1 gallons)
ABS	Yes
Max Power	51 hp @ 7500 rpm
Fuel System	Electronic fuel injection
Transmission	CVT
Front Brake	Dual disc
Rear Brake	Single disc
Weight	280 kg
Seat Height	795 mm
Max Torque	53 Nm @ 5750 rpm
Front Tire	120/70-15
