Engine oil ( 90R)

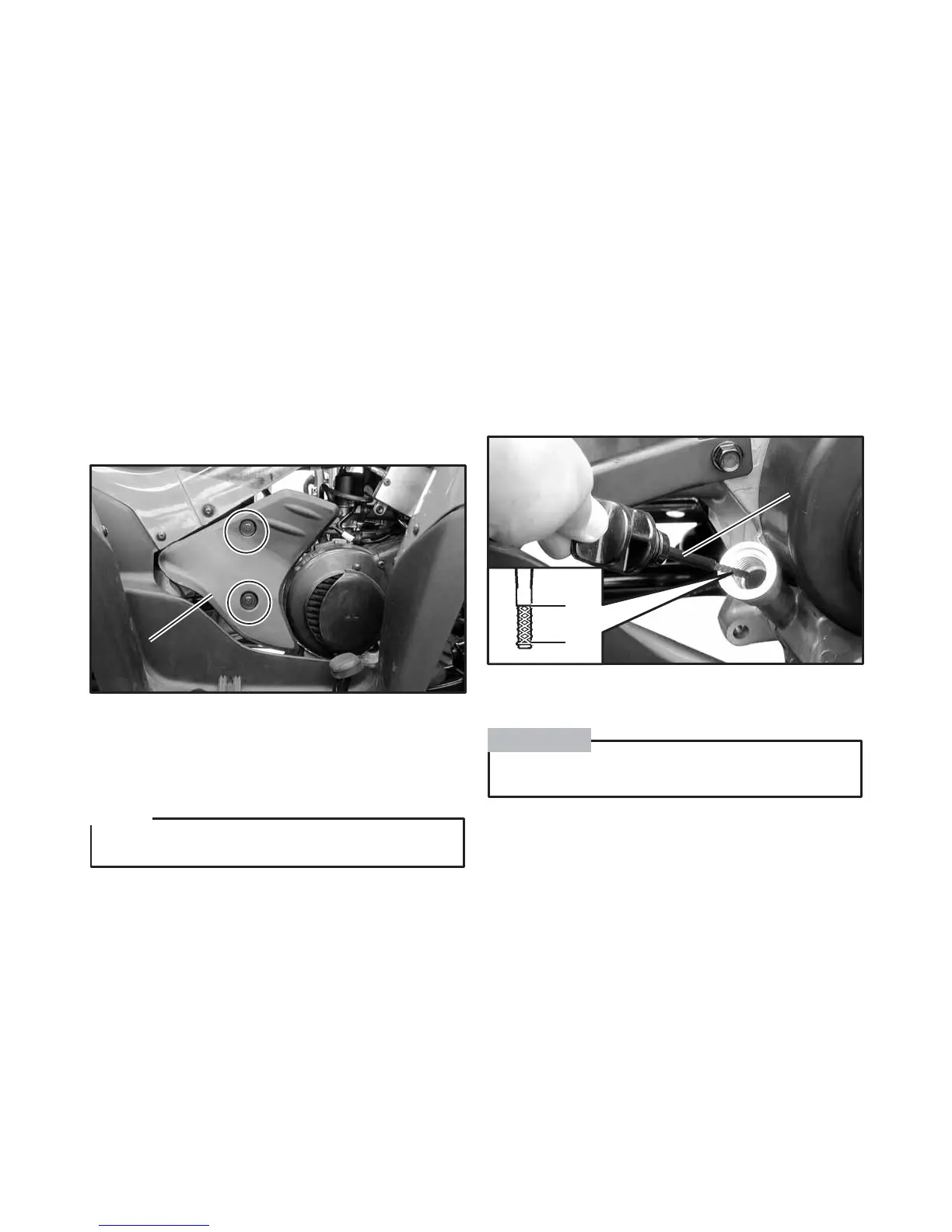

1.Engine oil level measurement
A. Place the machine on a level place.
B. Warm up the engine for several minutes
and stop it.
C. Remove right side cover.
D. Remove the dipstick and wipe it off with a
clean rag. Insert the dipstick in the filler
hole without screwing it in.
MXER E. Remove the dipstick and inspect the oil level.
F. The oil level should be between the maximum
and minimum marks. If the level is low, add oil
to raise it to the proper level.
Wait a few minutes until the oil level settles
before checking.
Be sure no foreign material enters the
crankcase.
95
NOTE:
CAUTION:
(1) Dipstick/oil filler cap
(3) Minimum level mark
(2) Maximum level mark
(1)
(1)
(2)
(3)
(1) Right side cover
To Next Page
