Transmission oil
1. Transmission oil measurement
A. Place the machine on a level place.
B. Remove the oil filler bolt and check the oil
level. It should be up to the brim of the
hole. If the level is low, add oil to raise it to
the proper level.
C. Reinstall the oil filler bolt and tighten to
specification.

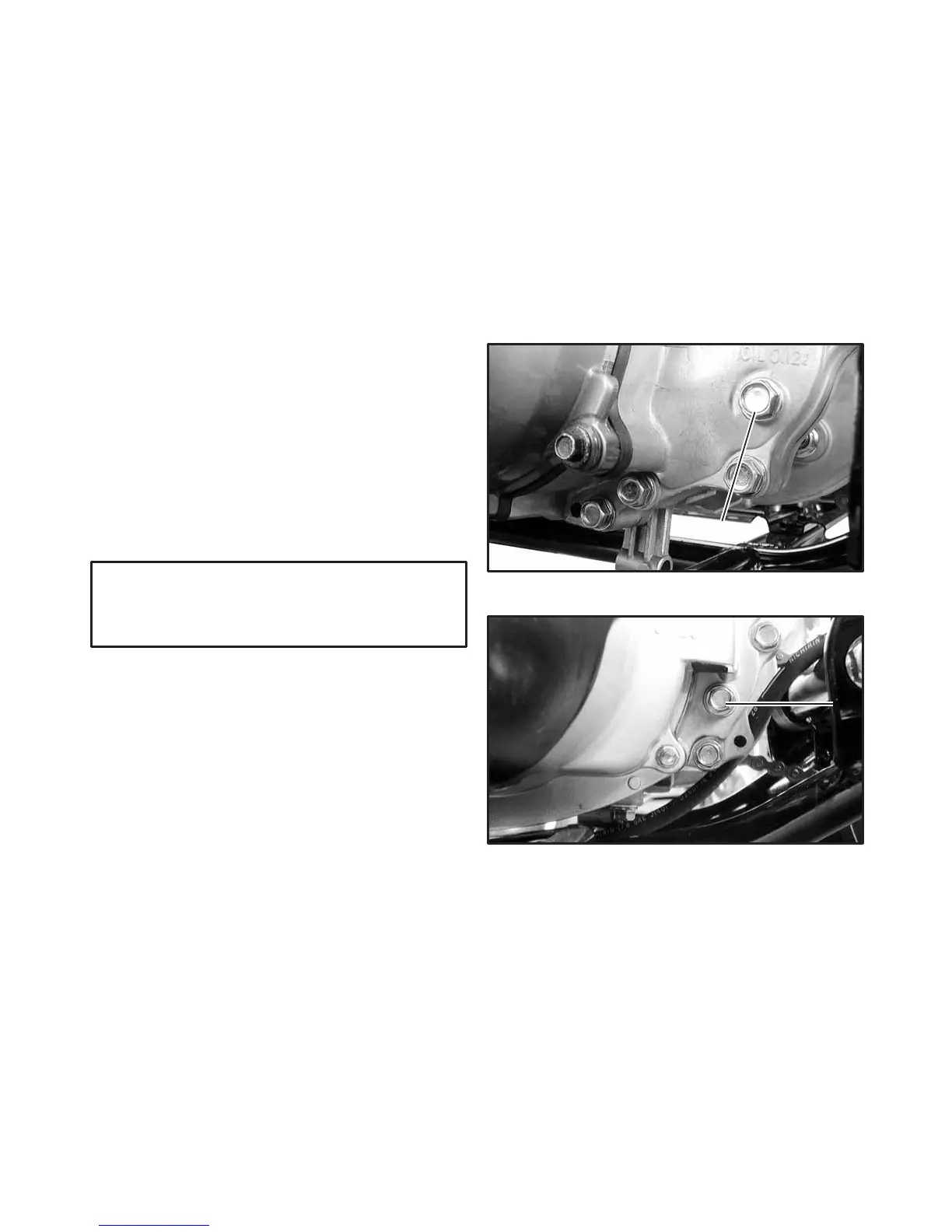

(1) Oil filler bolt/measurement hole (MXER 50R)
(1)
Tightening torque
Oil filler bolt:
15 Nm (1.5 m-kg, 11 ft-lb)
99
(1) Oil filler bolt/measurement hole ( 90R)MXER
(1)
