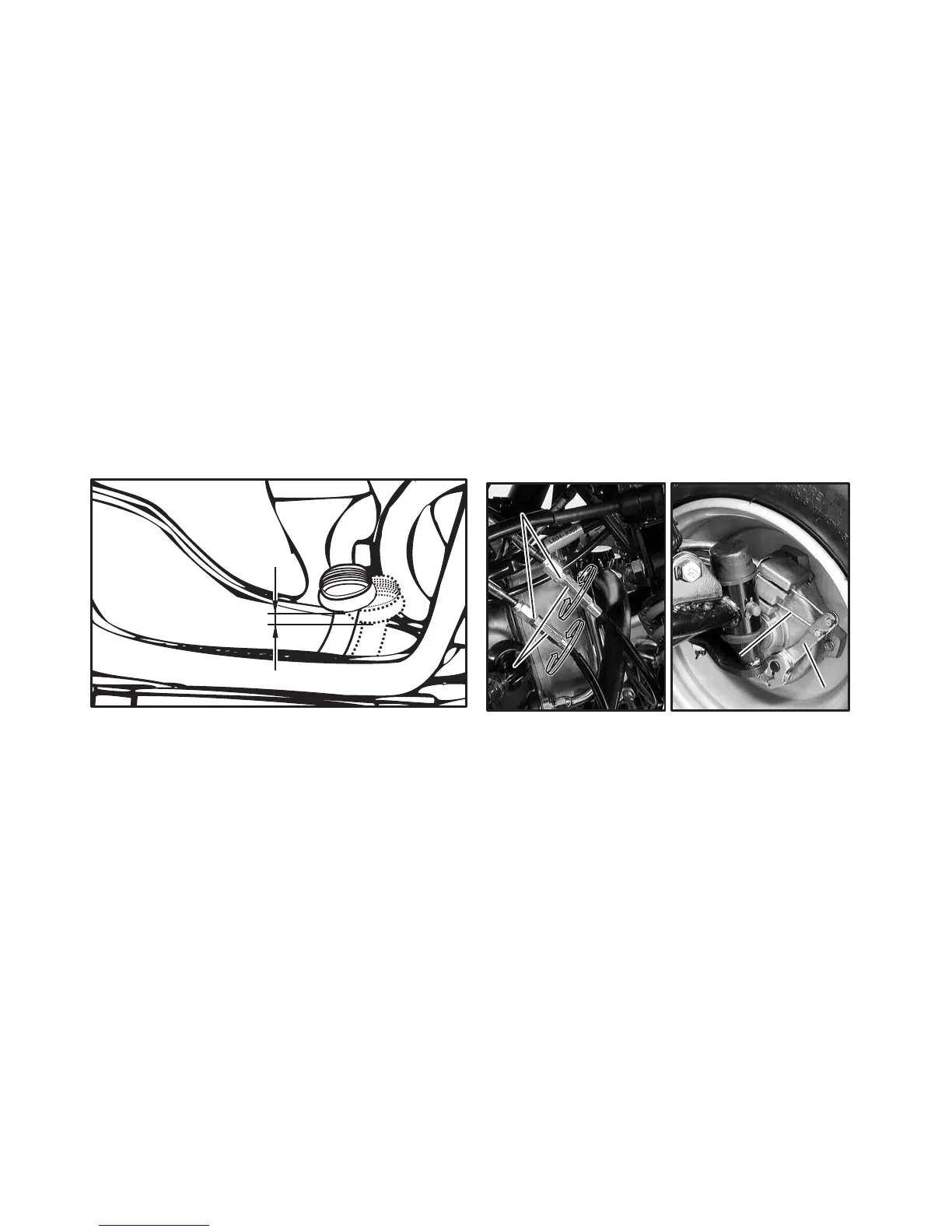

KYMCO MXER 50R - Brake Pedal Adjustment (MXER 90 R)

(1)
(2) Locknuts
Adjusting bolts (1) R/L front lower cables
(2) Brake cam lever
3. Turn the adjusting bolts until the front
Lower brake cables is tensed.
4. Apply the front brake lever and check front
brake cam levers to make sure that the
brake does not drag after adjusting.
Adjust:
1. Keep front brake lever free play at 10~20
mm (0.4~0.8 in).
2. Loosen the locknuts. (R/L front lower brake
cables)
(1)
(2)
(2)
(1)
Brake pedal adjustment (MXER 90R)
The brake pedal free play should be adjusted
to 5~10 mm (0.2~0.4 in) at the brake pedal
pivot. If the free play is incorrect, adjust as
Follows:
(A)
(A) 5~10 mm (0.2~0.4 in)
