(1) Adjuster
(2) Locknut
(A) 50R: 18mm(0.72in)
90R: 8mm(0.32in)
MXER
MXER

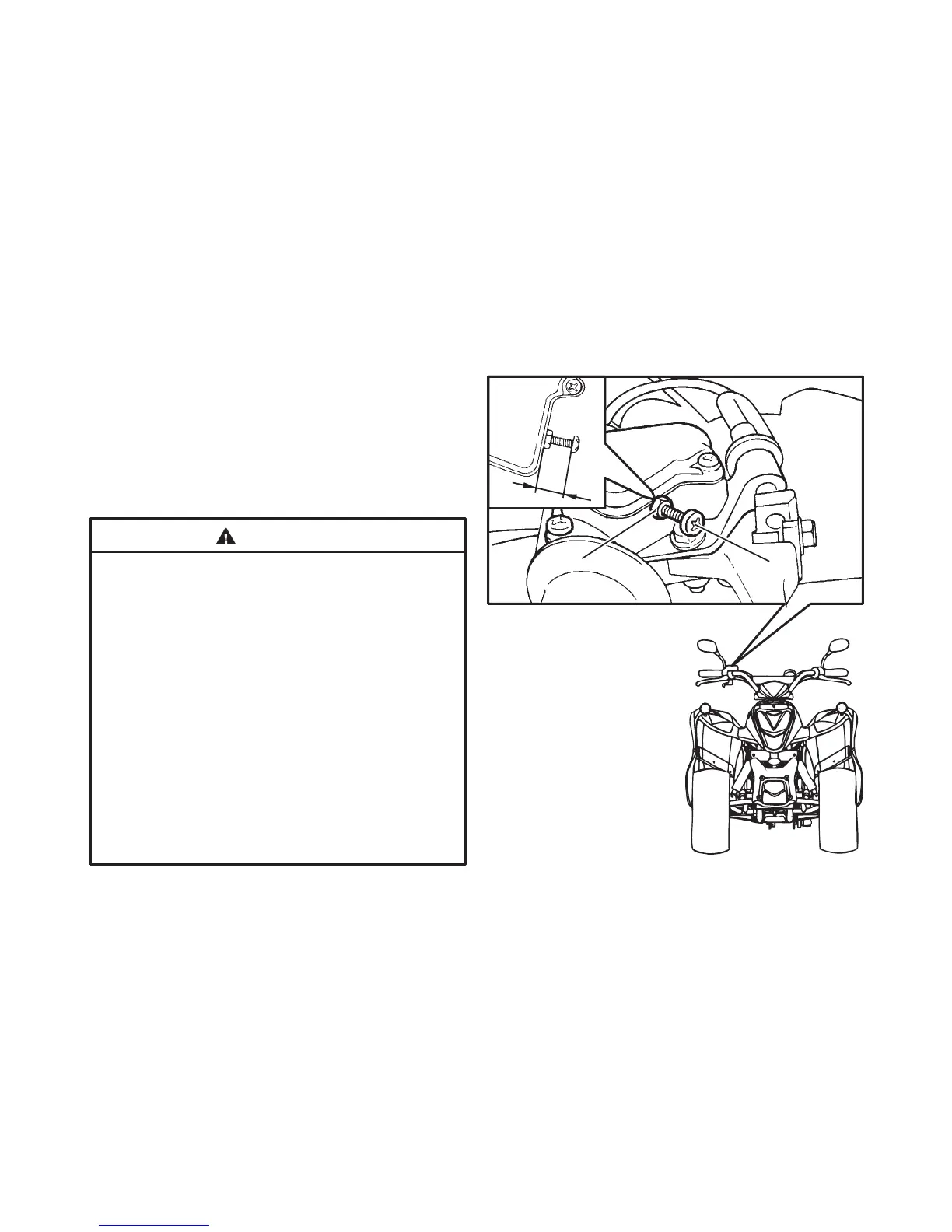

Speed limiter
The speed limiter keeps the throttle from fully
opening, even when the throttle lever is pushed
to the maximum. Screwing in the adjuster limits
the maximum engine power available and
decreases the maximum speed of the ATV.
POTENTIAL HAZARD
Improper adjustment of the speed limiter
and throttle.
WHAT CAN HAPPEN
The throttle cable could be damaged.
Improper throttle operation could result.
You could lose control, have an accident or
be injured.
HOW TO AVOID THE HAZARD
50R: Do not turn the speed adjuster
out more than 18 mm (0.72 in).
Always make sure the throttle lever free
play is adjusted to 1.0~4.0 mm (0.04~0.16
in). See page 109.
MXER
MXER 90R: Do not turn the speed adjuster
out more than 8 mm (0.32 in).
WARNING
(1)
(2)
(A)
