Kyocera ECOSYS FS-1135MFP Technical Reference Manual

Basic Concepts
1-7

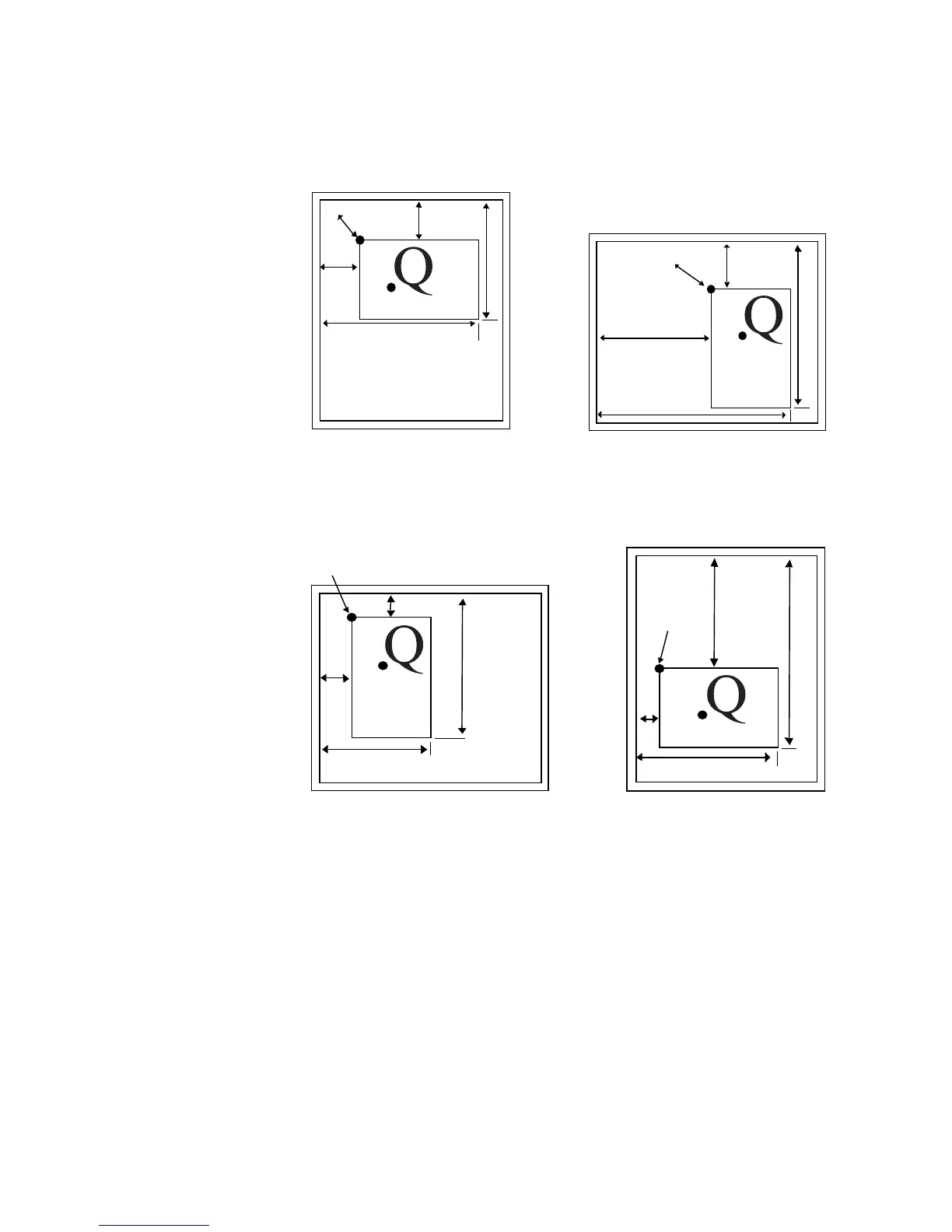

Figure 1. 6. Print Direction
Coordinate Systems
With PRESCRIBE, positions on a page are described in terms of X and Y coordinates.
The origin of the coordinate system (the position at which X and Y both equal 0) is
located at the intersection of the top margin and the left margin. Values of X greater than
0 indicate positions to the right of the origin, and values of Y indicate positions below the
origin. See the figure on page 10. When the top and left margins are changed, the physi-
cal position of the origin changes accordingly.
Text Positioning
The printing system always keeps track of its current position on the page. The current
position can be thought of as a cursor that moves as data is printed. At any instant, the
Current Point
Left margin
Right margin
Top
margin
Bottom margin
Current point
Top margin
Right margin
Left
margin
Bottom margin
Right margin
Top margin
Current point
Left margin
Bottom margin
Current Point
Left
margin
Right margin
Top
margin
Bottom margin
Landscape print direction
Portrait print direction
Reverse portrait print direction
Reverse landscape print direction
