Kyocera ECOSYS FS-1135MFP Technical Reference Manual

Basic Concepts
1-9
Figure 1. 8. Character Spacing
Paths
A path is a set of straight and curved line segments. Paths can be open, as in the case of
lines, or closed, as in the case of rectangles, circles, or any fully enclosed area of any
shape. The segments may be connected with one another, or they may be disconnected.
Further, a path may contain multiple closed subpaths, representing several areas, and
they may intersect themselves in arbitrary ways.
Paths can be used to draw lines and curves or specify boundaries of filled areas, includ-
ing the outline of a character.
Paths are explained more fully in section Path Mode Graphics on page 16.
Logical Page and Physical Page
The logical page defines the limits of the coordinates within which text and graphics can
be located. There are two types of logical page, as shown in the following figure. The
standard mode logical page imposes limits on specifiable coordinates. The coordinates
have no limitations for the path mode logical page.

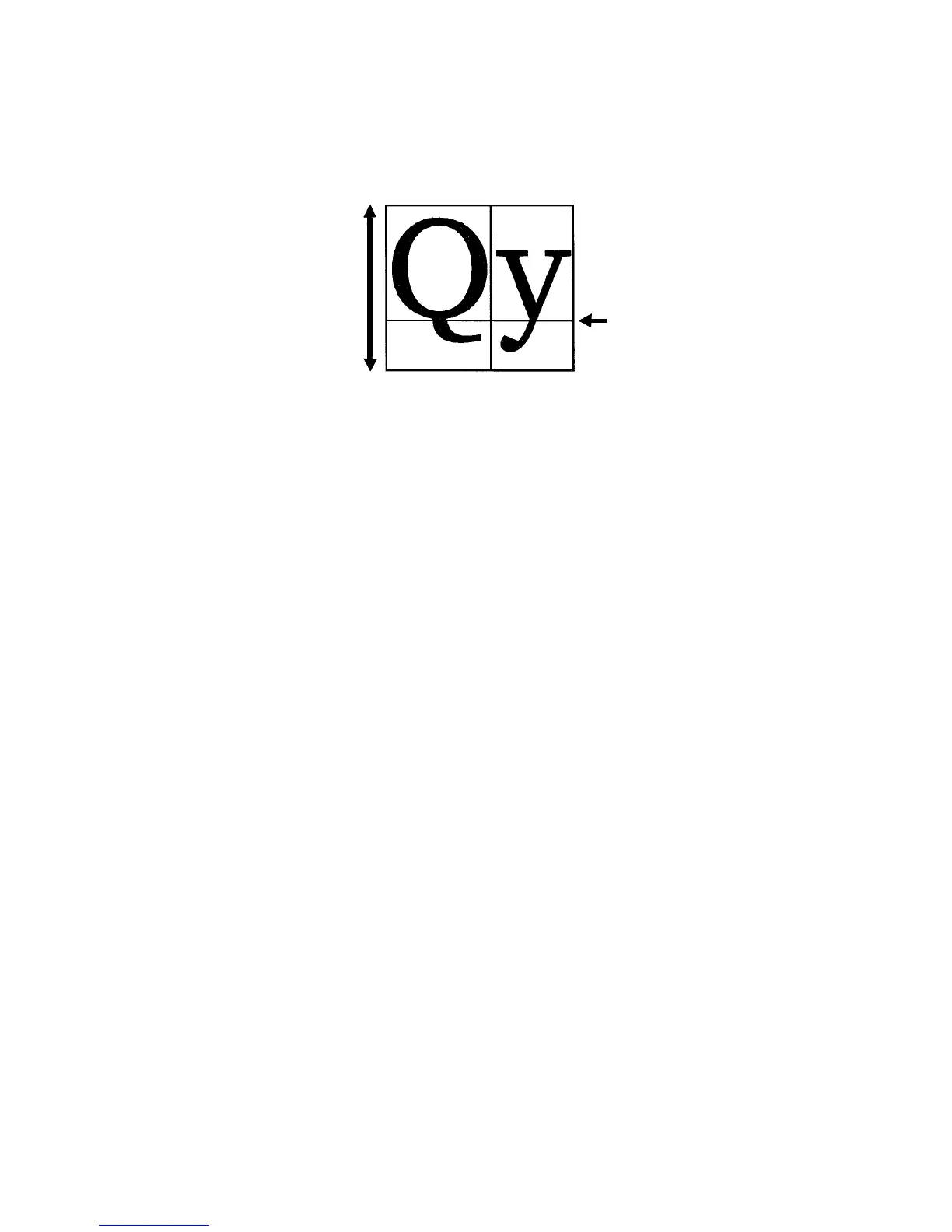

Font height
Baseline

Kyocera ECOSYS FS-1135MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Standard Memory	256 MB
Connectivity	USB 2.0, Ethernet
Scanner Type	Flatbed, ADF
Scan Resolution	600 x 600 dpi
Copier Resolution	600 x 600 dpi
Fax Capability	Yes
Fax Transmission Speed	33.6 kbps
Maximum Paper Size	A4
Operating System Compatibility	Windows, Mac OS, Linux
Dimensions	494 x 430 x 448 mm
Print Speed	35 ppm
Standard Input Capacity	250 sheets
Copy Speed	Up to 35 cpm
Maximum Input Capacity	800 sheets (with optional paper feeders)
