Drawing Circles
The CIR (draw circle) command draws a circle of a specified radius using the line thick-
ness set by the SPD (set pen diameter) command. The circle drawn is centered on the
current cursor position; the position of the cursor remains unaffected. See the following
example:
!R! RES;
UNIT C;
SPD 0.1;
MZP 8, 8;
CIR 1;
CIR 2;
CIR 3;
PAGE;
EXIT;

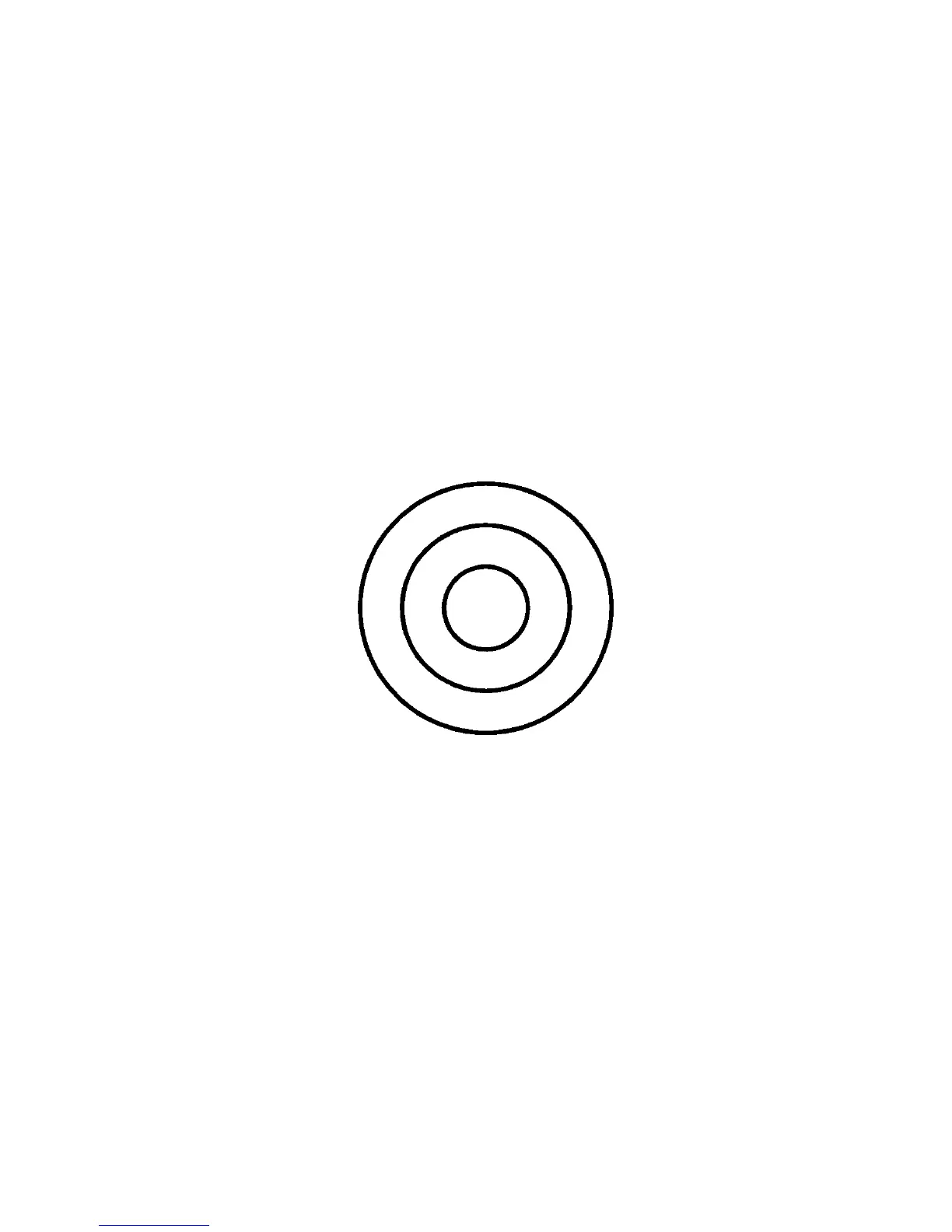

Figure 2. 7. Circles
Lines 1, 2 and 3 start PRESCRIBE mode, reset the printing system to its default parame-
ters, establish the unit of measurement as centimeters, and set the line width to 0.1 centi-
meters.
Next, the MZP command moves the cursor to the point that is 8 centimeters to the right
of the left edge limit and 8 centimeters below the top edge limit.
Lines 5, 6, and 7 draw three circles with radii of 1, 2, and 3 centimeters.
Drawing Filled Shapes
The standard graphics mode provides two types of filled shapes: arcs and blocks. Such
shapes are filled with one of the printing system’s predefined patterns, or with a user
defined pattern.
Filled areas of other shapes can be printed using path mode graphics. For details, see the
explanation in section Path Mode Graphics on page 16.

Kyocera ECOSYS FS-1135MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Standard Memory	256 MB
Connectivity	USB 2.0, Ethernet
Scanner Type	Flatbed, ADF
Scan Resolution	600 x 600 dpi
Copier Resolution	600 x 600 dpi
Fax Capability	Yes
Fax Transmission Speed	33.6 kbps
Maximum Paper Size	A4
Operating System Compatibility	Windows, Mac OS, Linux
Dimensions	494 x 430 x 448 mm
Print Speed	35 ppm
Standard Input Capacity	250 sheets
Copy Speed	Up to 35 cpm
Maximum Input Capacity	800 sheets (with optional paper feeders)
