Kyocera ECOSYS FS-1135MFP Technical Reference Manual

Chapter 7 Emulation
7-98
Plot Coordinates (bit 0)
This bit defines one of two plotting coordinate modes. (See Figure 7. 29. on page 98.)
0 = Mode A
1 = Mode B
In mode A, the origin (0, 0) starts at bottom left. In mode B, the origin starts at the center
of the page.
Response to SP Instruction (bit 1)
This bit defines the printing system response to the SP (Select Pen) instruction.
0 = Printing System feeds out a page when it receives a SP; or SP 0; instruction.
1 = Printing System returns the pen to the stall from which it came, in other words, it
prints nothing when it receives a SP; or SP 0; instruction.

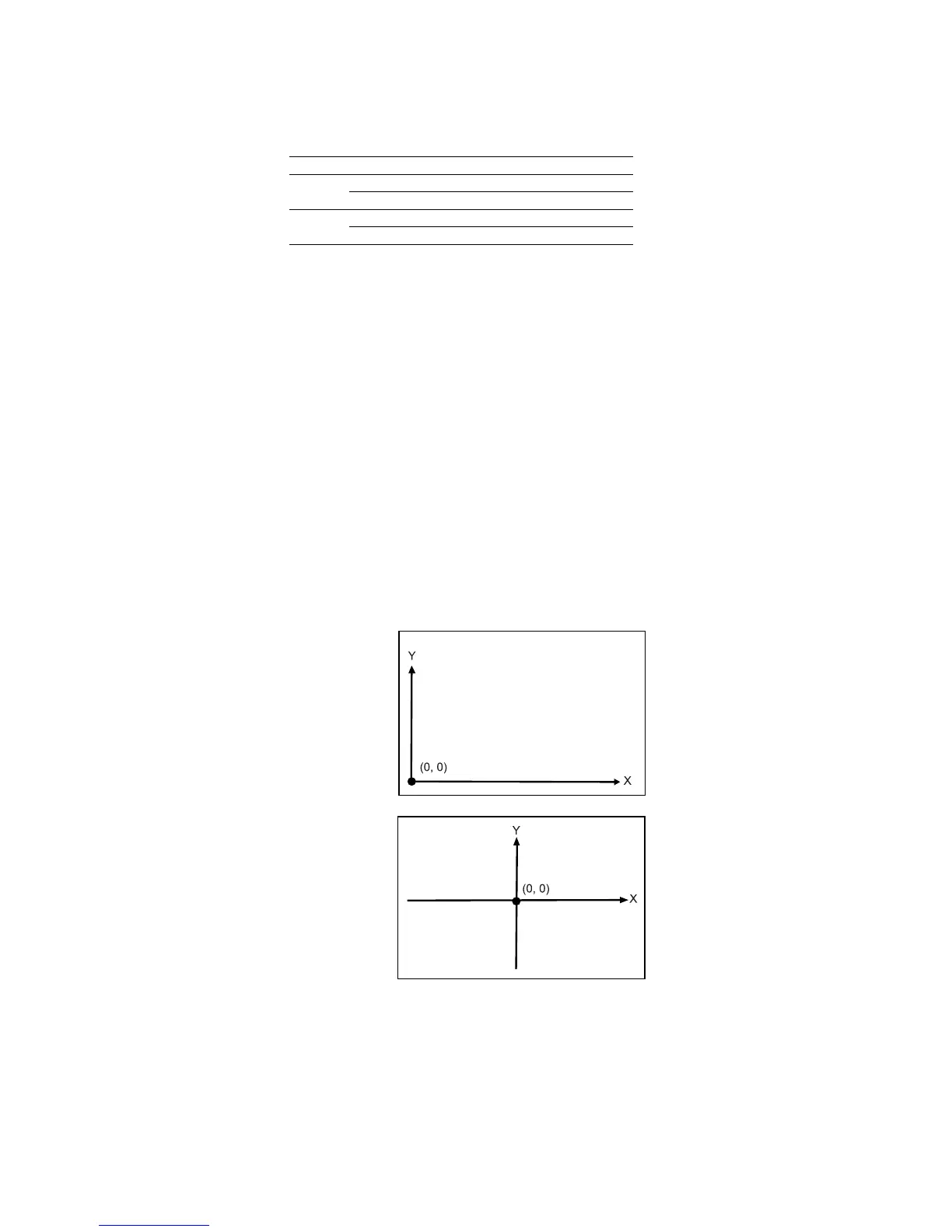

Figure 7. 29. Plot Coordinates
Automatic Plot Coordinate Mode (bit 2)
0 = Printing System changes the plot coordinate from mode A to mode B when it
receives a IP (Input P1 and P2) instruction using the negative parameter value.
When the IN
(INitialize) instruction is later given, the printing system reverts to mode A.
4 0 0 Landscape page orientation
16 1 Page orientation to FRPO C1
5 0 0 Default cursor at top left
32 1 Default cursor at bottom left
Table 7.28. FRPO G0 Command Options
Bit Position Bit Value Logic Value Description
Mode A (G0, 0;)
Mode B (G0, 1;)

Kyocera ECOSYS FS-1135MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Standard Memory	256 MB
Connectivity	USB 2.0, Ethernet
Scanner Type	Flatbed, ADF
Scan Resolution	600 x 600 dpi
Copier Resolution	600 x 600 dpi
Fax Capability	Yes
Fax Transmission Speed	33.6 kbps
Maximum Paper Size	A4
Operating System Compatibility	Windows, Mac OS, Linux
Dimensions	494 x 430 x 448 mm
Print Speed	35 ppm
Standard Input Capacity	250 sheets
Copy Speed	Up to 35 cpm
Maximum Input Capacity	800 sheets (with optional paper feeders)
