Kyocera ECOSYS FS-1135MFP Technical Reference Manual

2-15

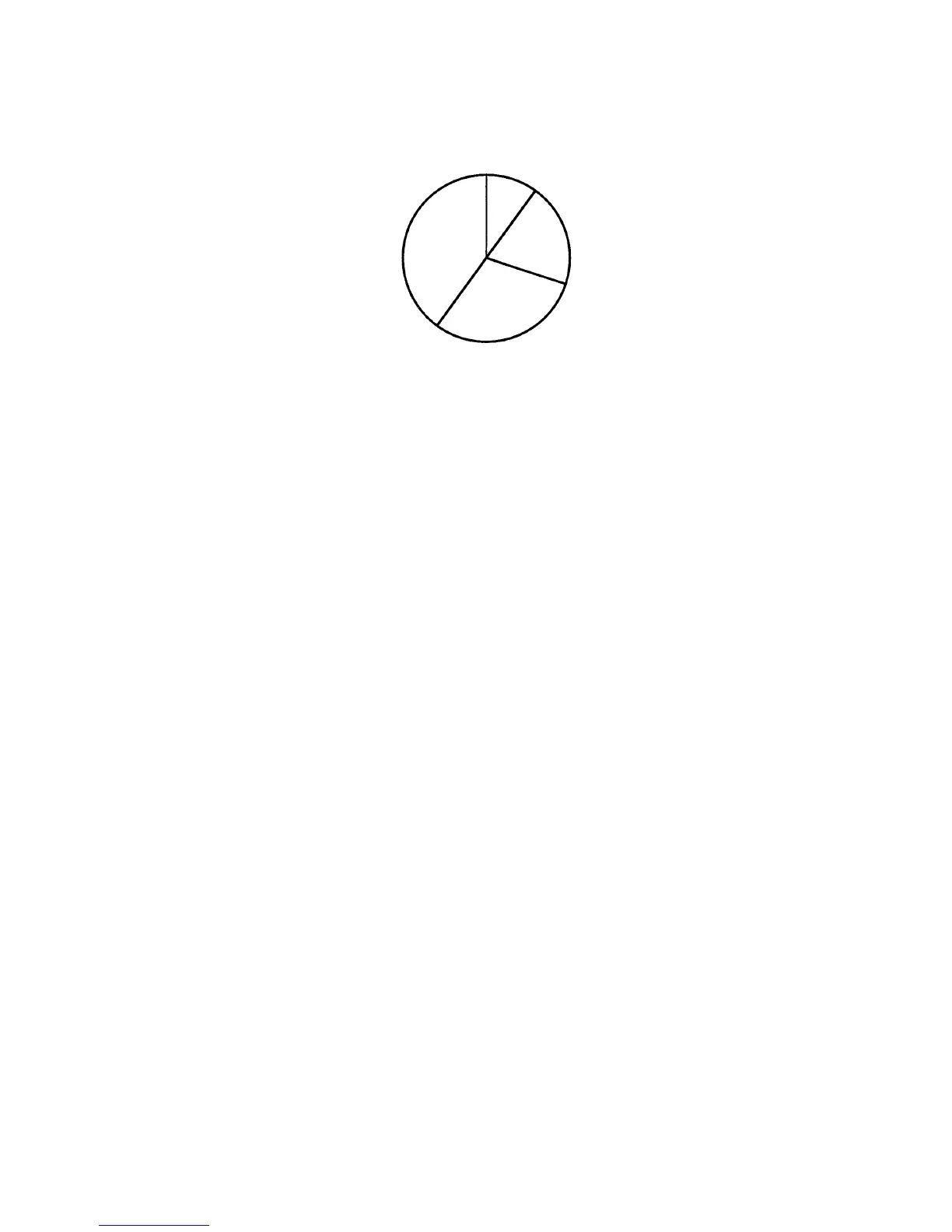

Figure 2. 12. PIE Example
The PIE command uses the format
PIE radius, starting angle, size of slice, ...;
In the example above, the radius is 2 centimeters (since we set the unit to centimeters
with the UNIT command), and the starting angle is 0 degrees. Four pie slices are speci-
fied, with sizes of 10, 20, 30, and 40.
The printing system automatically converts the slice sizes to angles totalling 360
degrees. Then it draws the first slice with a cut at the angle specified by the second
parameter (0 degrees in our example, or straight up). The remaining slices are drawn in
sequence clockwise around the circle. The line thickness used for drawing the circle and
the lines between slices are designated by the SPD (Set Pen Diameter) command.
Any number of pie slice sizes can be specified, provided that the total length of the com-
mand does not exceed 255 characters, and that the sum of the pie slices does not exceed
9999. All numbers specified for slice sizes must be non-negative integers.
The PIE command does not fill in the slices with any fill pattern. The PAT command can
be used to create shaded areas. The previous example is expanded to fill in the slices.
!R! RES; UNIT C; SPD .1;
MZP 10, 10;
PAT 19; ARC 0, 2, 0, 36;
PAT 41; ARC 0, 2, 36, 108;
PAT 43; ARC 0, 2, 108, 216;
PAT 48; ARC 0, 2, 216, 360;
PIE 2, 0, 10, 20, 30, 40;
PAGE;
EXIT;

Kyocera ECOSYS FS-1135MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Standard Memory	256 MB
Connectivity	USB 2.0, Ethernet
Scanner Type	Flatbed, ADF
Scan Resolution	600 x 600 dpi
Copier Resolution	600 x 600 dpi
Fax Capability	Yes
Fax Transmission Speed	33.6 kbps
Maximum Paper Size	A4
Operating System Compatibility	Windows, Mac OS, Linux
Dimensions	494 x 430 x 448 mm
Print Speed	35 ppm
Standard Input Capacity	250 sheets
Copy Speed	Up to 35 cpm
Maximum Input Capacity	800 sheets (with optional paper feeders)
