Kyocera ECOSYS FS-1135MFP Technical Reference Manual

Path Mode Graphics
2-19
Two Lines
The preceding example illustrated construction of a path between points specified in
terms of absolute coordinates. The following program draws two lines, using both abso-
lute coordinate specification and a new method: relative coordinate specification.
!R! RES;
NEWP;
PMZP 1, 1;
PDZP 2, 3;
PMRP .5, -1;
PDRP -1, -1;
SPD 0.04;
STRK;
PAGE;
EXIT;

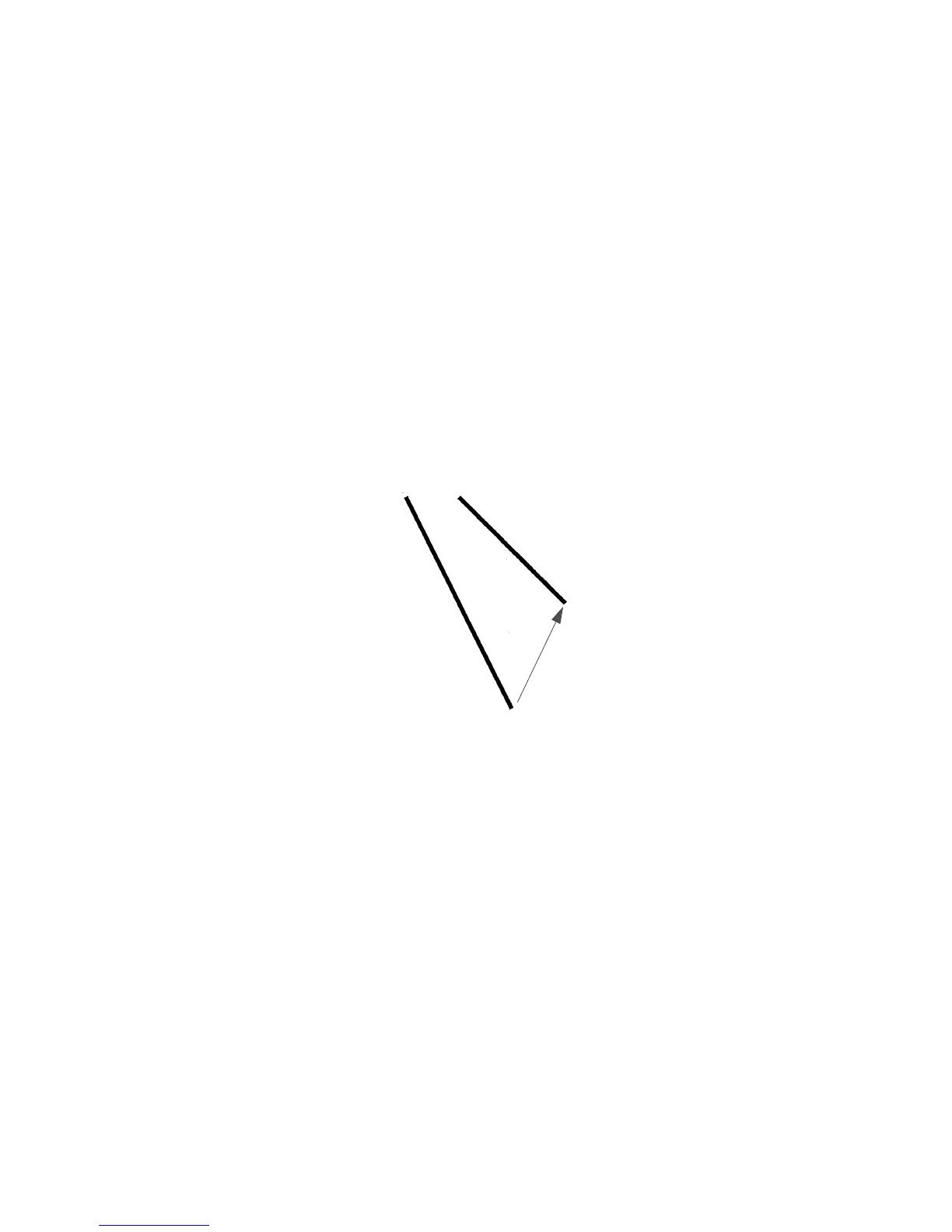

Figure 2. 15. Drawing Two Lines
The first four lines of this program are identical to the preceding example. Line 1
switches the printing system to the PRESCRIBE mode and resets printing system param-
eters, line 2 empties the current path, and lines 3 and 4 draw a line between two points
that are specified in terms of absolute coordinates.
On line 5, the PMRP (Path, Move to Relative Position) command moves the cursor to the
point half an inch to the right and one inch above the current cursor position; that is, the
point at which the first line ends. Then the PDRP (Path, Draw to Relative Position) com-
mand on line 6 draws a line to the point 1 inch to the left of the new position and 1 inch
below it.
The line thickness is changed to 0.04 inches by the SPD command on line 7.
Finally, the STRK command on line 8 strokes the path onto the page, PAGE prints out
the page, and EXIT ends the PRESCRIBE mode.
(1, 1)
(2, 3)
(0.5, -1)
(-1, -1)

Kyocera ECOSYS FS-1135MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Standard Memory	256 MB
Connectivity	USB 2.0, Ethernet
Scanner Type	Flatbed, ADF
Scan Resolution	600 x 600 dpi
Copier Resolution	600 x 600 dpi
Fax Capability	Yes
Fax Transmission Speed	33.6 kbps
Maximum Paper Size	A4
Operating System Compatibility	Windows, Mac OS, Linux
Dimensions	494 x 430 x 448 mm
Print Speed	35 ppm
Standard Input Capacity	250 sheets
Copy Speed	Up to 35 cpm
Maximum Input Capacity	800 sheets (with optional paper feeders)
