Kyocera ECOSYS FS-1135MFP Technical Reference Manual

Path Mode Graphics
2-23
The following program illustrates use of this command.
!R! RES;
UNIT C; CMNT Sets unit to cm;
NEWP; CMNT Starts new path;
SPD .5; CMNT Sets line width to .5 cm;
PMZP 2, 2;
PDZP 4, 4;
DPAT 5;
STRK;
PAGE;
EXIT;

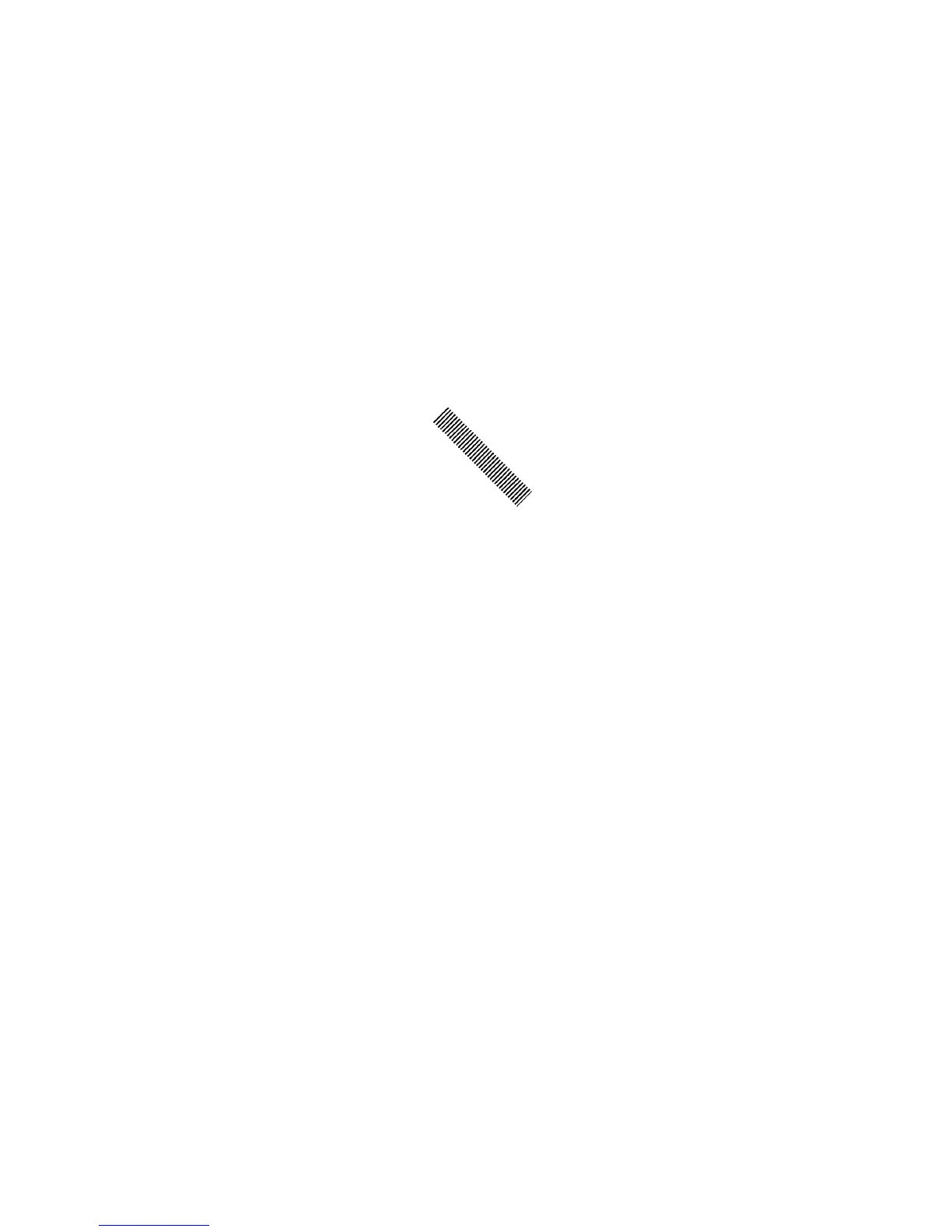

Figure 2. 20. Printout of the DPAT Example
In this program, the DPAT command selects the dash pattern with which the line is
stroked.
Predefined dash patterns are selected by specifying values from 1 to 10 for pattern-num-
ber. (A value of 1 specifies solid lines.) User-defined patterns can be selected by specify-
ing values from 11 to 20. The next section explains how to use the SDP (Store Dash
Pattern) command to define your own dash patterns. Specifying an undefined user pat-
tern number results in solid black lines.
User Defined Dash Patterns
Using the SDP command, you can define your own dashed patterns for use in stroking
lines, arcs, and curves. See the following example:
!R! RES;
UNIT P;
SDP 11, 2, 2, 5, 2;
UNIT C; CMNT Sets unit to cm;
NEWP; CMNT Starts new path;
SPD .5; CMNT Sets line width to .5 cm;
PMZP 2, 2;
PDZP 4, 4;
DPAT 11;
STRK;
PAGE;
EXIT;

Kyocera ECOSYS FS-1135MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Standard Memory	256 MB
Connectivity	USB 2.0, Ethernet
Scanner Type	Flatbed, ADF
Scan Resolution	600 x 600 dpi
Copier Resolution	600 x 600 dpi
Fax Capability	Yes
Fax Transmission Speed	33.6 kbps
Maximum Paper Size	A4
Operating System Compatibility	Windows, Mac OS, Linux
Dimensions	494 x 430 x 448 mm
Print Speed	35 ppm
Standard Input Capacity	250 sheets
Copy Speed	Up to 35 cpm
Maximum Input Capacity	800 sheets (with optional paper feeders)
