Kyocera ECOSYS FS-1135MFP Technical Reference Manual

Chapter 2 Graphics Tutorial
2-36

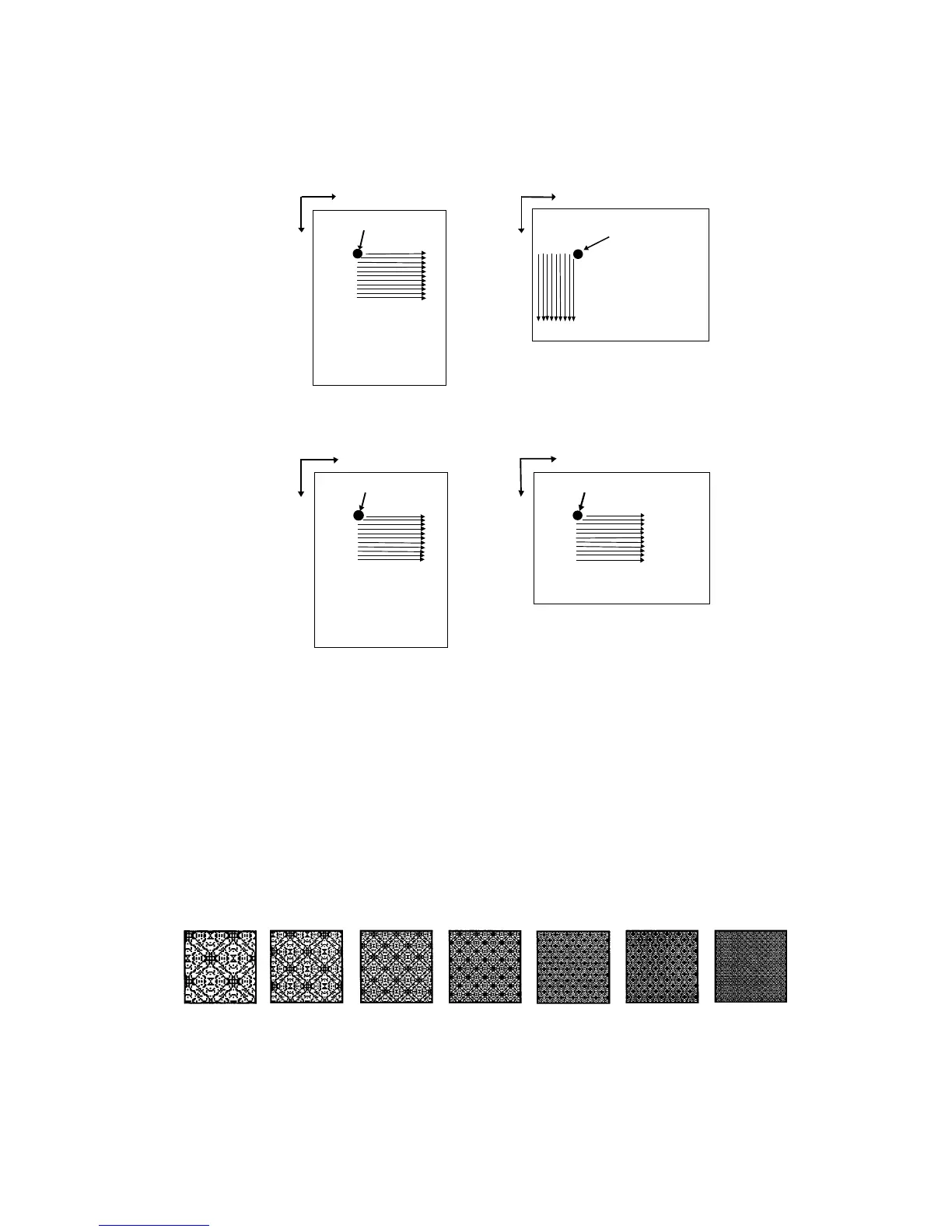

Figure 2. 36. Presentation Modes
A secondary function of the SRO command specifies the width and height of the raster
area. When a width and height are explicitly specified, any part of the raster image that
extends outside of the area is clipped.
The STR command specifies the resolution at which raster data is printed. The default
resolution is 75 dots per inch, or the equivalent of 16 physical dots for each raster-line
dot. The following figure shows how a single raster-line dot correlates to physical dots at
each of the available raster data resolutions.
Figure 2. 37. Dot Resolutions
The RVRD and RVCD commands print raster data in the presentation mode specified by
the SRO command and at the resolution specified by the STR command. Either com-
mand can be used. The RVRD command can only print uncompressed raster data. The
RVCD command can print uncompressed raster data, run-length encoded raster data, or
Y
X
Current point
Width
Height
Landscape
Portrait
Y
X
Current point
Width
Height
Portrait
Current point
Width
Height
X
Y
X
Y
Height
Current point
Width
Landscape
Presentation mode = 0
Presentation mode = 1
75 dpi resolution
(Default)
100 dpi resolution
150 dpi resolution
200 dpi resolution
300 dpi resolution
600 dpi resolution
1200 dpi resolution

Kyocera ECOSYS FS-1135MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Standard Memory	256 MB
Connectivity	USB 2.0, Ethernet
Scanner Type	Flatbed, ADF
Scan Resolution	600 x 600 dpi
Copier Resolution	600 x 600 dpi
Fax Capability	Yes
Fax Transmission Speed	33.6 kbps
Maximum Paper Size	A4
Operating System Compatibility	Windows, Mac OS, Linux
Dimensions	494 x 430 x 448 mm
Print Speed	35 ppm
Standard Input Capacity	250 sheets
Copy Speed	Up to 35 cpm
Maximum Input Capacity	800 sheets (with optional paper feeders)
