Kyocera ECOSYS FS-1135MFP Technical Reference Manual

5-11
start pattern
A unique pattern of light and dark elements which indicates the leftmost part of a bar-
code label.
stop pattern
A unique pattern of light and dark elements which indicates the rightmost part of a bar-
code label.
row
A lateral set of elements made up of a start pattern, codewords, and a stop pattern. Each
PDF417 symbol must have at least 3 rows. See figure below.
In each row, between left and right row indicators, there may be from 1 to 30 data code-
words. Collectively, among all rows, these codewords form data columns.
Overall Symbol Structure
Any PDF417 symbol is made up of at least 3 rows, and at most 90 rows. The minimum
number of codewords in a row is 3; this includes the left row indicator codeword, 1 data
codeword, and the right row indicator.
Every symbol contains 1 codeword (the first data codeword in row 0) indicating the total
number of data codewords within the symbol, and at least 2 error-detection codewords.

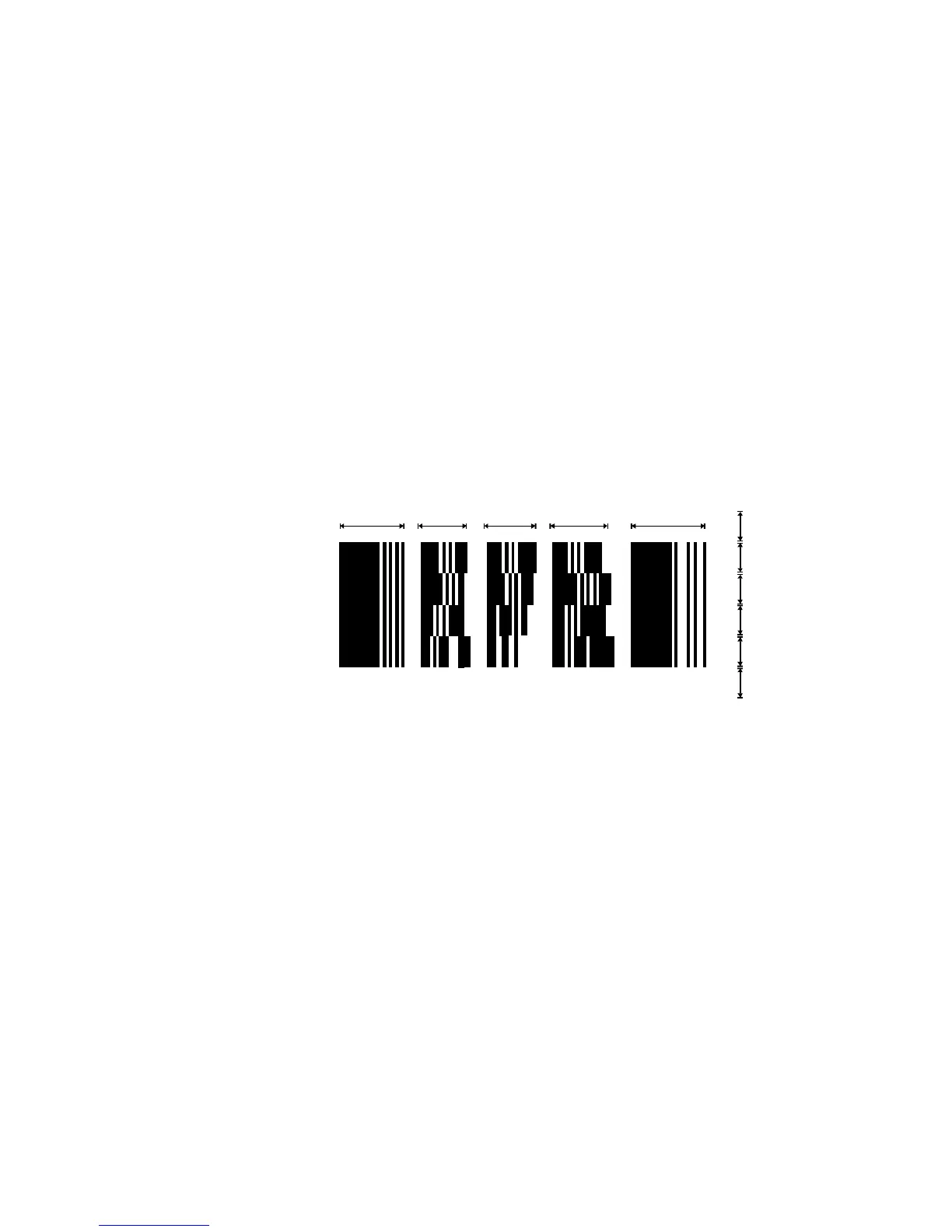

General PDF417 symbol structure is indicated in the following diagram:
Start pattern
Left row indicator codeword
Quiet zone
Quiet zone
Row 1
Row 2
Row 3
Row 4
Data codeword
Right row indicator codeword
Stop pattern
Quiet zone
Quiet zone

Kyocera ECOSYS FS-1135MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Standard Memory	256 MB
Connectivity	USB 2.0, Ethernet
Scanner Type	Flatbed, ADF
Scan Resolution	600 x 600 dpi
Copier Resolution	600 x 600 dpi
Fax Capability	Yes
Fax Transmission Speed	33.6 kbps
Maximum Paper Size	A4
Operating System Compatibility	Windows, Mac OS, Linux
Dimensions	494 x 430 x 448 mm
Print Speed	35 ppm
Standard Input Capacity	250 sheets
Copy Speed	Up to 35 cpm
Maximum Input Capacity	800 sheets (with optional paper feeders)
