2P7/2R0/3PN
1-5-11

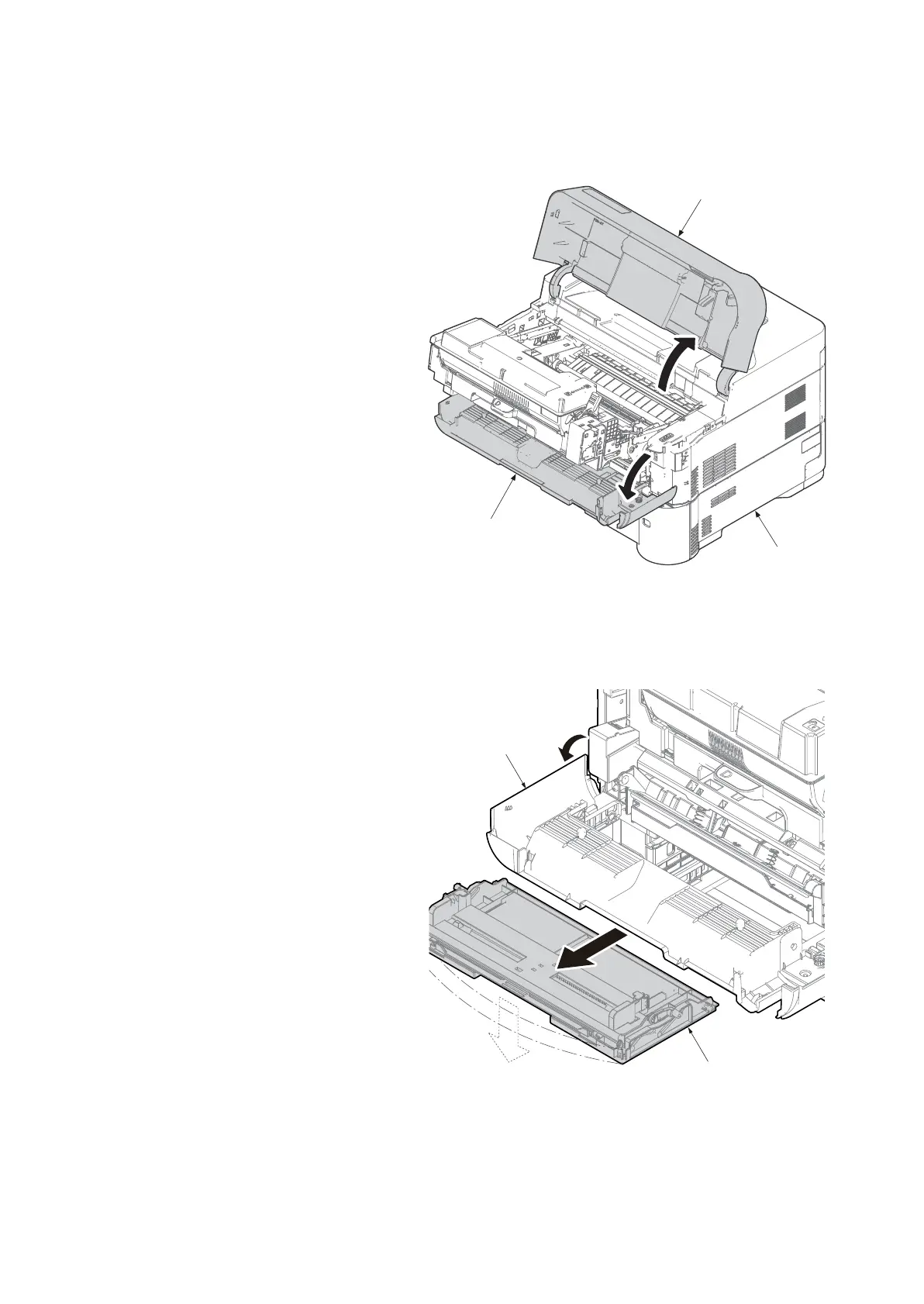

(3) Detaching and refitting the MP paper feed pulley
Procedure
1. Open the top cover.
2. Open the front cover.
3. Pull out the cassette.
Figure 1-5-19
4. Remove the MP tray from the printer
while bending it.
Figure 1-5-20
Printer
Front cover
Top cover
MP tray
Front cover
